title: Ubiquiti UniFi6 In-Wall WIFI 6 Dual Band AP
date: 2025-04-01T16:00:28Z
modified: 2026-05-19T05:00:52Z
permalink: "https://tech.co.za/product/ubiquiti-unifi6-in-wall-wifi-6-dual-band-ap/"
type: product
status: publish
excerpt: "Ubiquiti's U6-IW is a dual band, WiFi 6 (802.11ax) in-wall access point. \\nIt delivers an aggregate data rate of up to 5.3Gbps over its 5GHz (4x4 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands."
wpid: 534193
product_brand:
  - Ubiquiti
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Access Points
featured_image: "https://tech.co.za/wp-content/uploads/2025/04/U6-IW.jpg"
---

| Antenna Gain | 2.4GHz: 5dBi ; 5.8GHz: 5.9dBi |
| --- | --- |
| Beam-width | 360° |
| Data Rate | 2.4GHz : 573.5Mbps ; 5.8GHz: 4800Mbps |

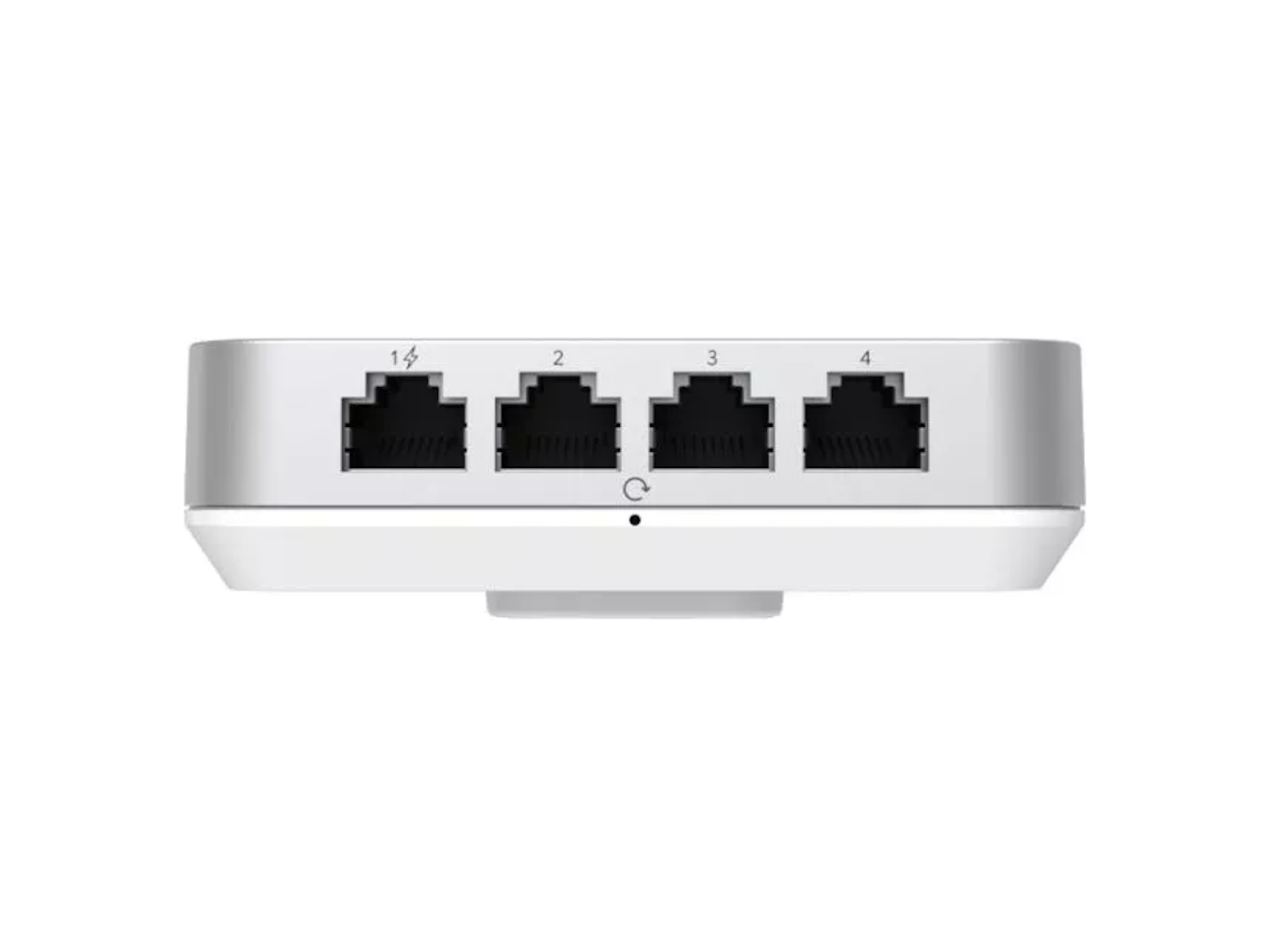

| Ethernet Ports | 5x 10/100/1000 |
| Hardware Button | Reset |
| Max. Power Consumption | 13.5W |
| Mounting | 1 Gang Electrical Wall Box (Not Included) |
| Operating System | UniFi |
| Operating Temperature | -30°C to 60°C |
| Power Input | 802.3at |
| PoE Output | 48V Pass-Through |
| Power Input | 802.3at or UniFi Switch |
| Serial Interface | None |
| SIM Slots | None |
| Supported Voltage Range | 44 to 57VDC |
| USB Ports | None |
| Dimensions | 139.66 x 96 x 31.19 mm |
| Weight | 460g |
