Mechanical
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
Weight: 520 g (1.1 lb)
Enclosure material: Polycarbonate
Resistance: IK04

Hardware
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
Memory information: 2 GB DDR4
Management interface: Ethernet
Bluetooth

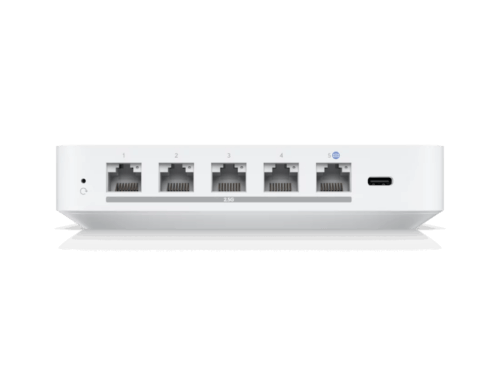

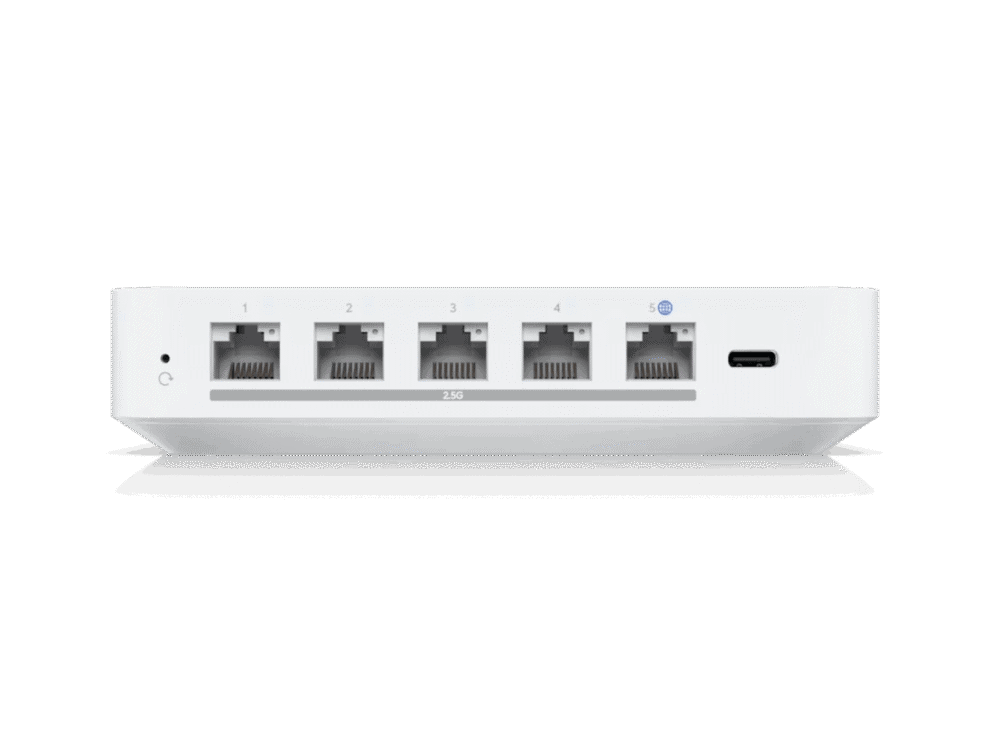

Networking interface: LAN:
(4) 2.5 GbE RJ45 ports

WAN:
(1) 2.5 GbE RJ45 port
IDS/IPS throughput: 1.5 Gbps\*
\*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.
Power method: USB type C (5V/3A)
Supported voltage range: 100–240V
Max. power consumption: 9.6W
LED: Ethernet
White: link/activity
Button: (1) Factory reset
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Gateway Features
Performance: WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-generation security: Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking: License-free SD-WAN\*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport\* and Identity Enterprise VPN\*\*
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support

\*When paired with a CloudKey or Official UniFi Hosting.
\*\*When paired with a CloudKey.
