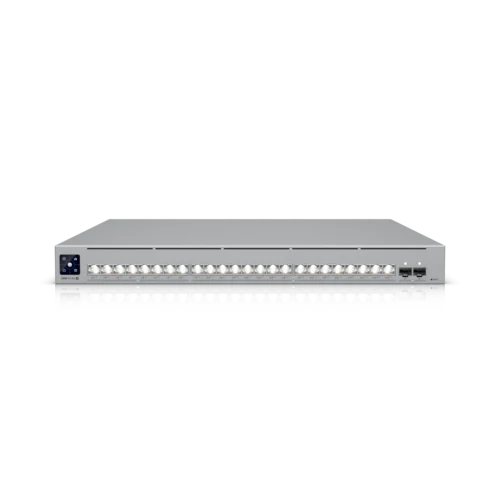

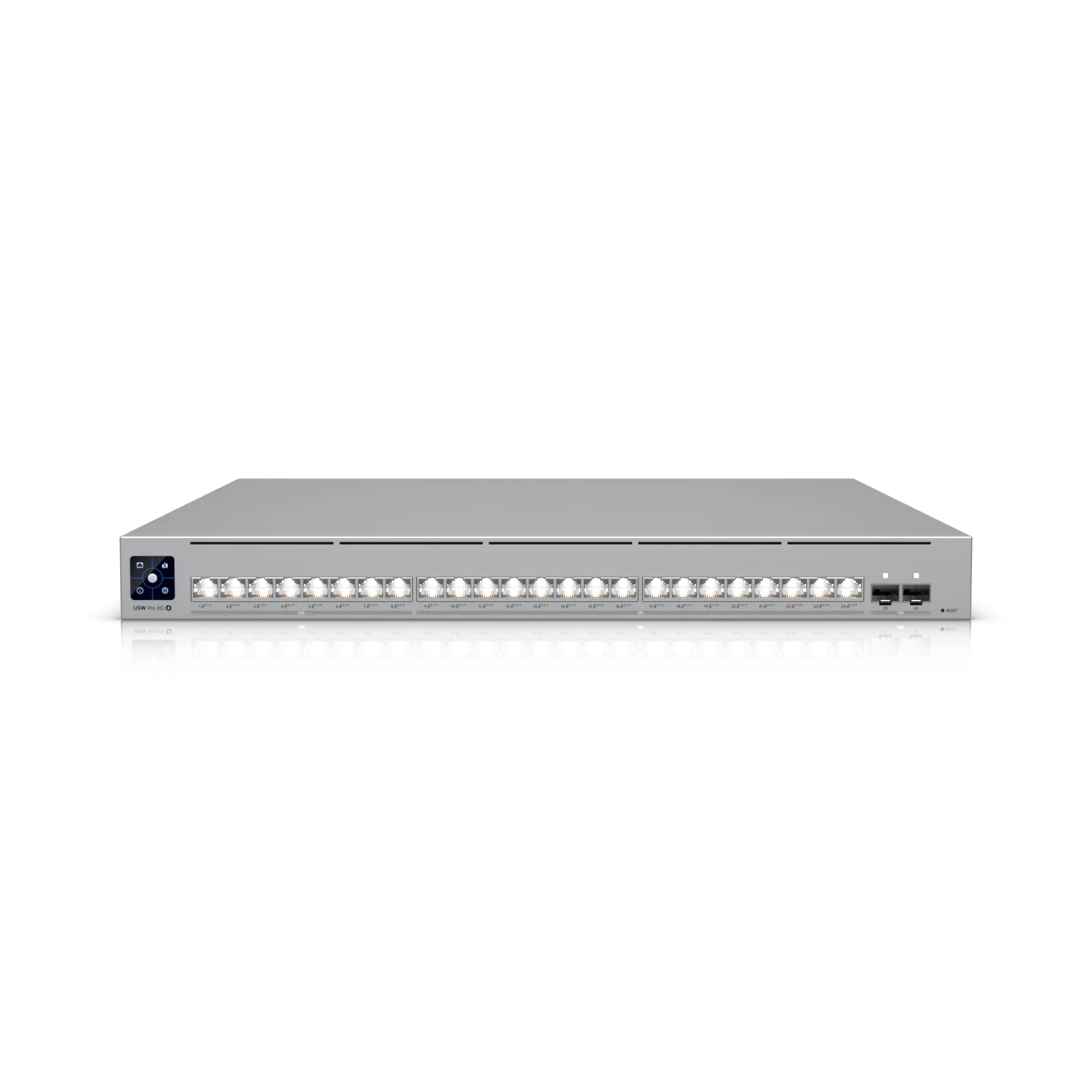

The Ubiquiti UniFi Pro XG 24 Port 720W PoE Switch USW-Pro-XG-24-PoE is a high-performance Layer 3 managed switch designed for enterprise-grade networks requiring high throughput and intelligent power management. It features 24 10G Ethernet ports, delivering non-blocking line-rate switching and a total PoE budget of 720W, supporting both 802.3af/at PoE+ and 802.3bt PoE++ standards. This switch integrates seamlessly with the UniFi Network Controller, allowing centralised management, detailed traffic monitoring, and remote firmware upgrades. Built with a silent, fanless cooling design, redundant power input, and robust metal chassis, the USW-Pro-XG-24-PoE is ideal for high-density, latency-sensitive environments such as data centres, server rooms, and high-bandwidth enterprise networks.
| Dimensions | 442 x 480 x 44 mm |
| Port Layout | 2.5 GbE RJ45 – 8 (All PoE+++)(2.5G/1G/100M/10M) |
| 10 GbE RJ45 – 16 (All PoE+++)(10G/5G/2.5G/1G/100M/10M) | |
| 25G SFP28 – 2 (25G/10G/1G) | |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | ✓ |
| Hardware | |
| PoE Ports | PoE+++ – 24 |
| Max. PoE Wattage per Port by PSE | PoE – 15.4W |
| PoE+ – 30W | |
| PoE++ – 60W | |
| PoE+++ – 90W | |
| Max. Power Consumption | 150W (Excluding PoE Output) |
| 870W (Including PoE Output) | |
| Power Method | 1x Universal input, 100—240V AC, 50/60 Hz |
| 1x USP RPS DC input | |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet |
| AR | |
| Weight | Without mounting brackets: 7.9 kg (17.4 lb) |
| With mounting brackets: 8 kg (17.6 lb) | |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19″) four-post racks |
| Posts depths ranging from 600 to 1,066 mm (23.6-42”) | |
| LCM Display | 1.3″ touchscreen |
