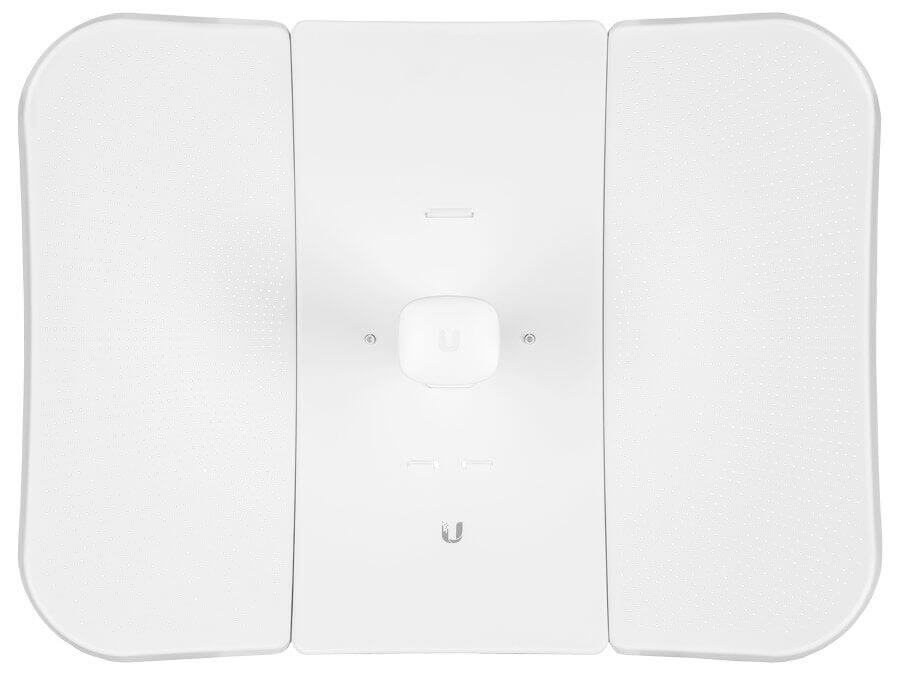

Ubiquiti’s LBE-526ACLR is designed for long-range applications. The LBE-526ACLR features a larger reflector size and elevation adjustment. Azimuth is adjusted by rotation around the pole.
The unit directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, improving noise immunity. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna so that there is no need for a cable. This improves performance as it eliminates cable losses.
The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup via UNMS.
Specifications
Antenna Gain: 26dBi
Beam-width: 12°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V, 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 512.5 x 385.75 x 258.3mm
Weight: 1.735g
