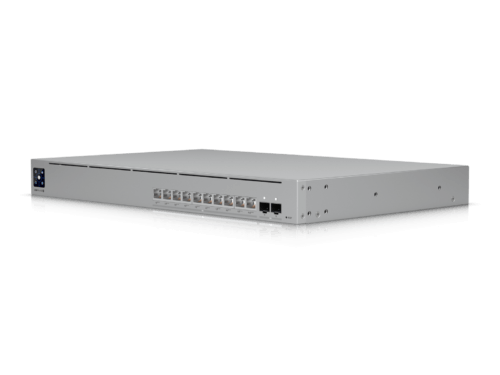

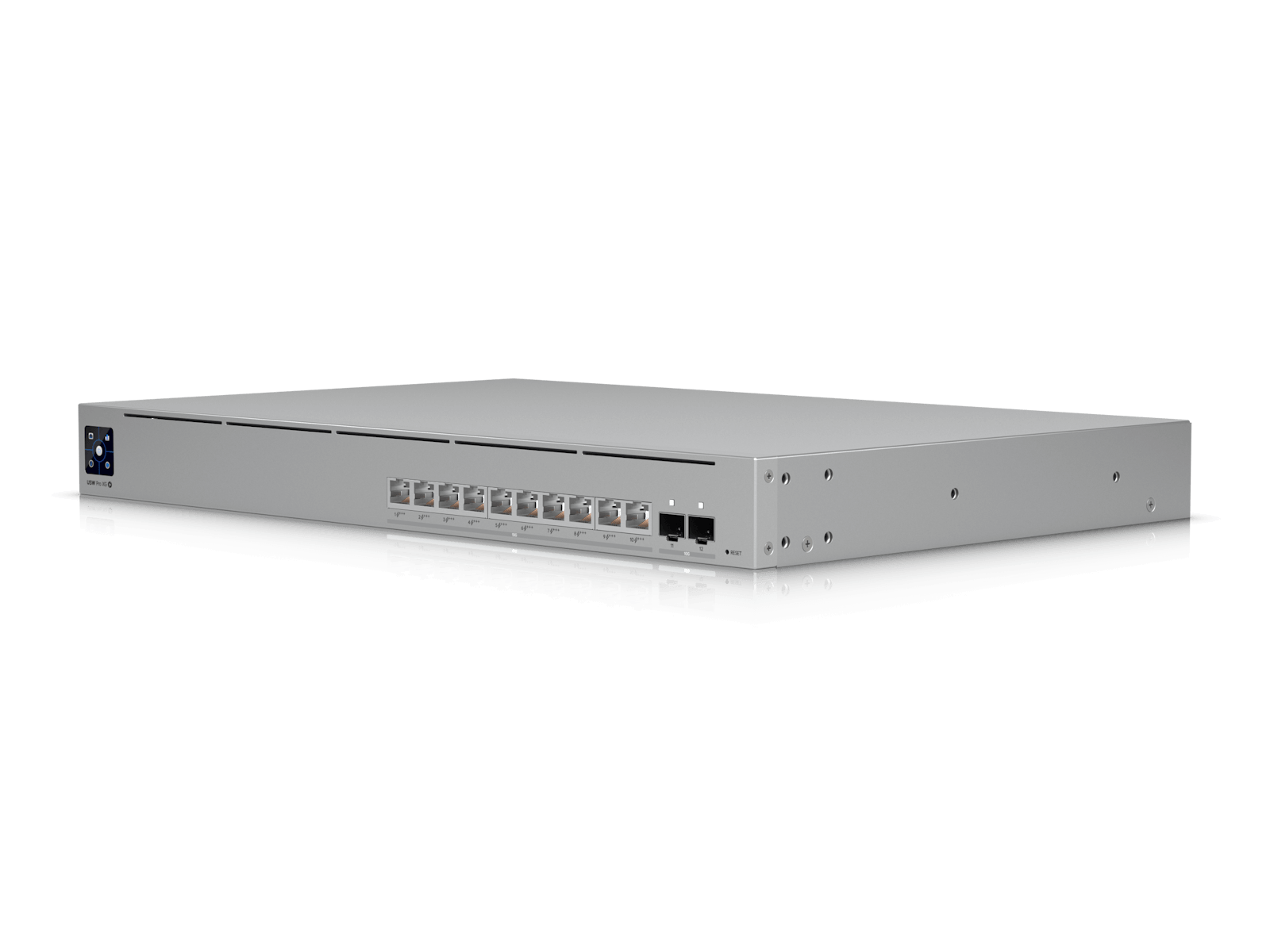

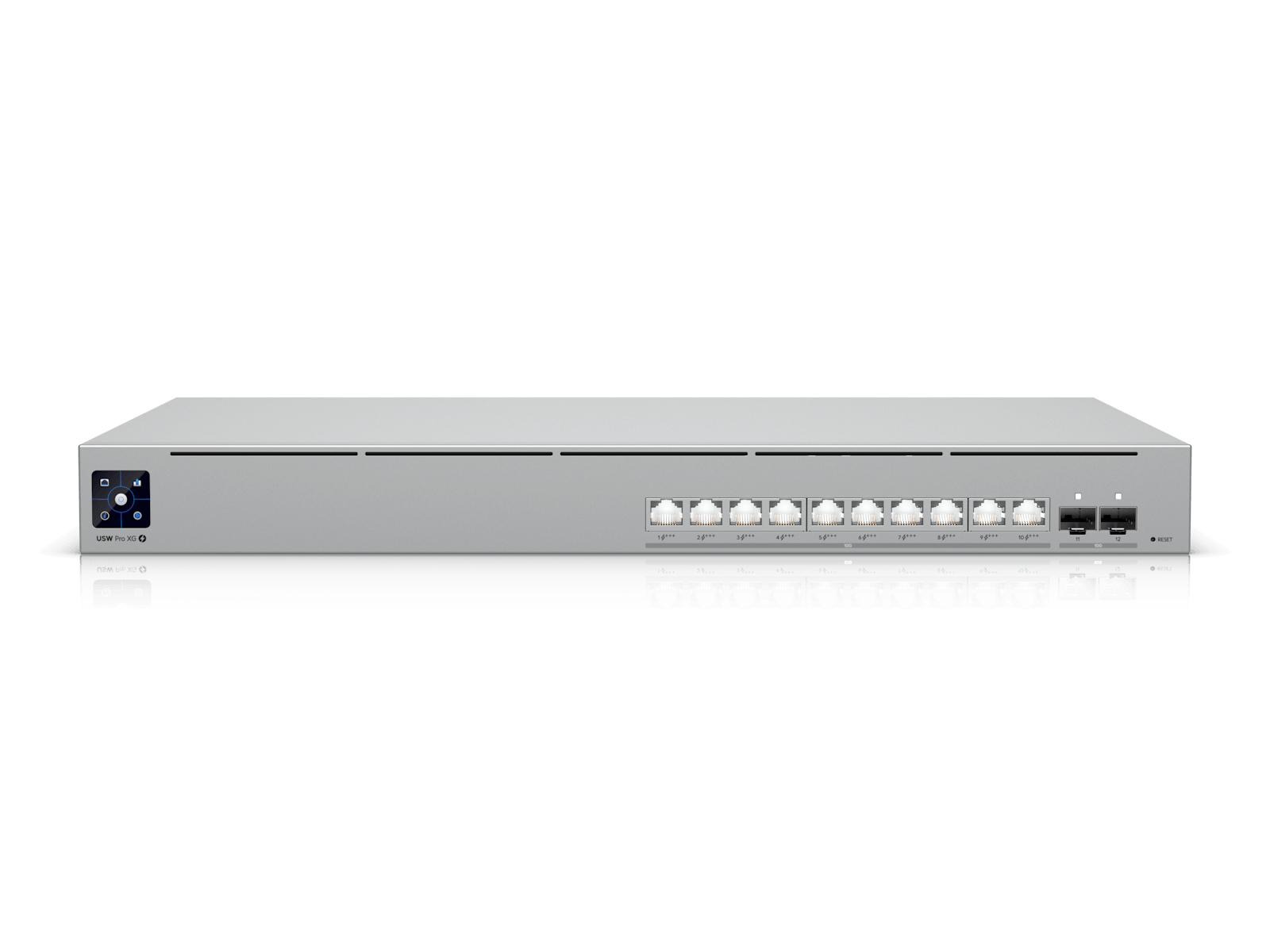

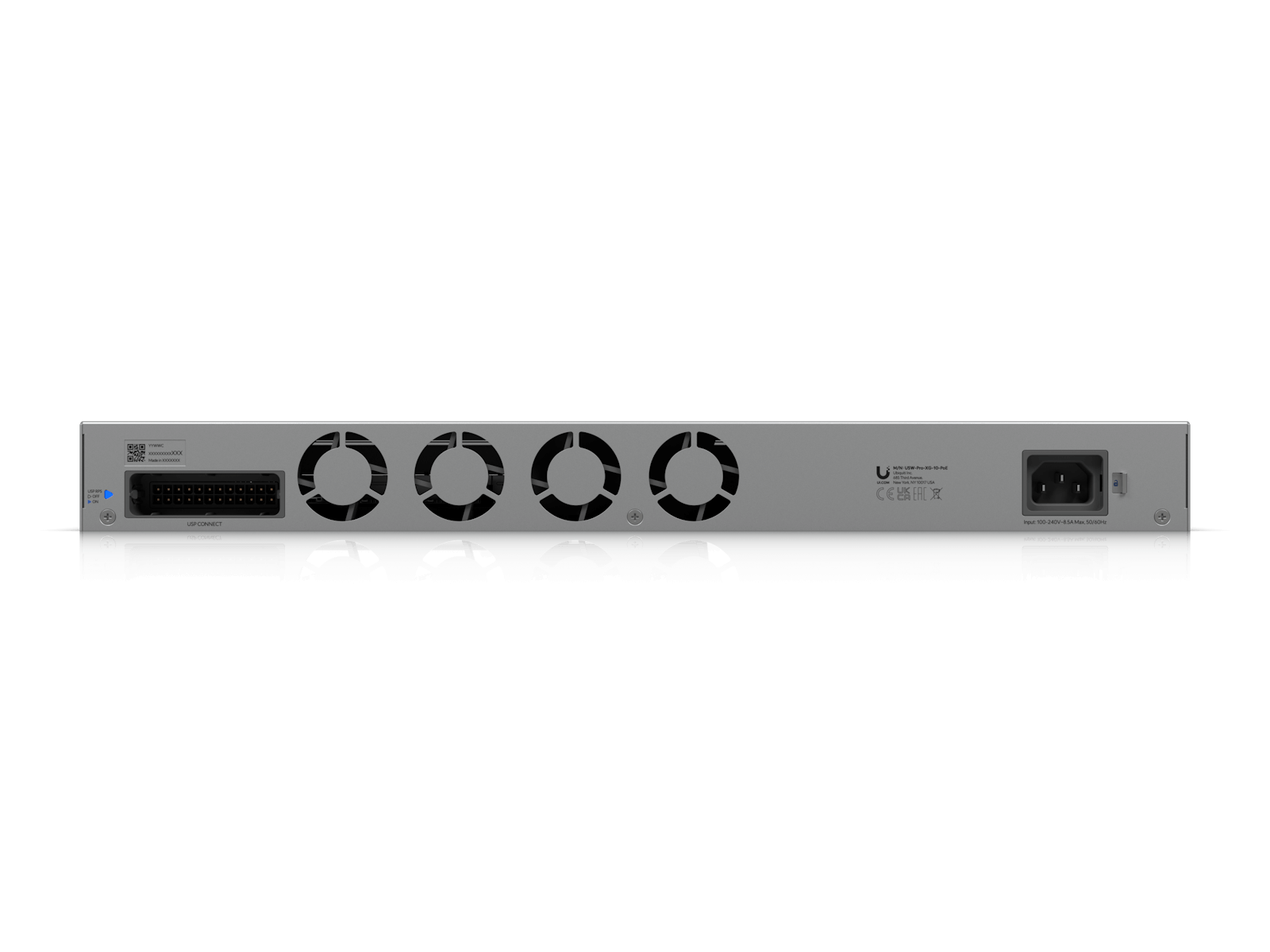

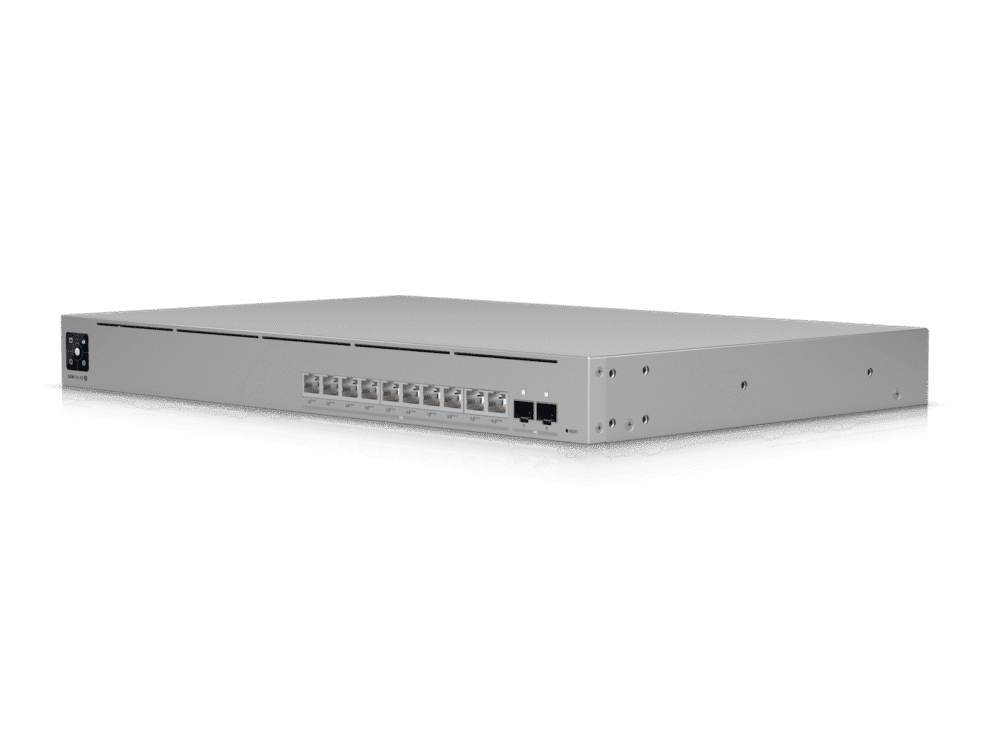

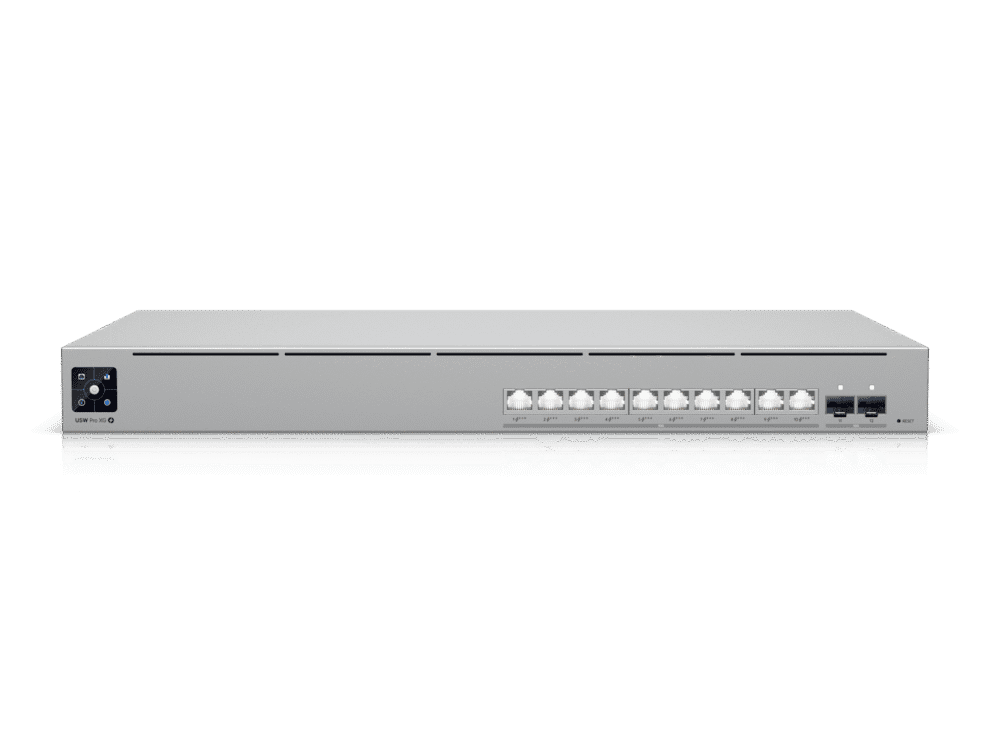

title: Ubiquiti UniFi Pro XG 10 Port 400W PoE Switch
date: 2025-06-30T10:17:08Z
modified: 2026-05-20T15:01:29Z
permalink: "https://tech.co.za/product/ubiquiti-unifi-pro-xg-10-port-400w-poe-switch/"
type: product
status: publish
excerpt: "Ubiquiti UniFi Pro XG 10 Port 400W PoE Switch | USW-Pro-XG-10-PoE"
wpid: 543851
product_brand:
  - Ubiquiti
product_type:
  - simple
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2025/06/USW-Pro-XG-10-PoEa.png"
---

| Dimensions | 442.4 x 285 x 44 mm |
| --- | --- |
| Port Layout | 10 GbE RJ45 – 10 (All PoE+++)(10G/5G/2.5G/1G/100M) |
| 10G SFP+ – 2 (10G/1G) |  |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | ✓ |
| Performance |  |
| Switching Capacity | 240 Gbps |
| Total Non-Blocking Throughput | 120 Gbps |
| Forwarding Rate | 179 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries – 12,000 |
| IPv4 Routes – 12,000 |  |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4 – 128 |
| MAC – 128 |  |
| Hardware |  |
| PoE Ports | PoE+++ – 10 |
| Max. PoE Wattage per Port by PSE | PoE – 15.4W |
| PoE+ – 30W |  |
| PoE++ – 60W |  |
| PoE+++ |  |
| Max. Power Consumption | 65W (Excluding PoE output) |
| 520W (Including PoE output) |  |
| Power Method | 1 Universal input, 100—240V AC, 50/60 Hz |
| 1 USP RPS DC input |  |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet, AR |
| Weight | Without mounting brackets: 4.6 kg, With mounting brackets: 4.7 kg |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm |
| LCM Display | 1.3″ touchscreen |
