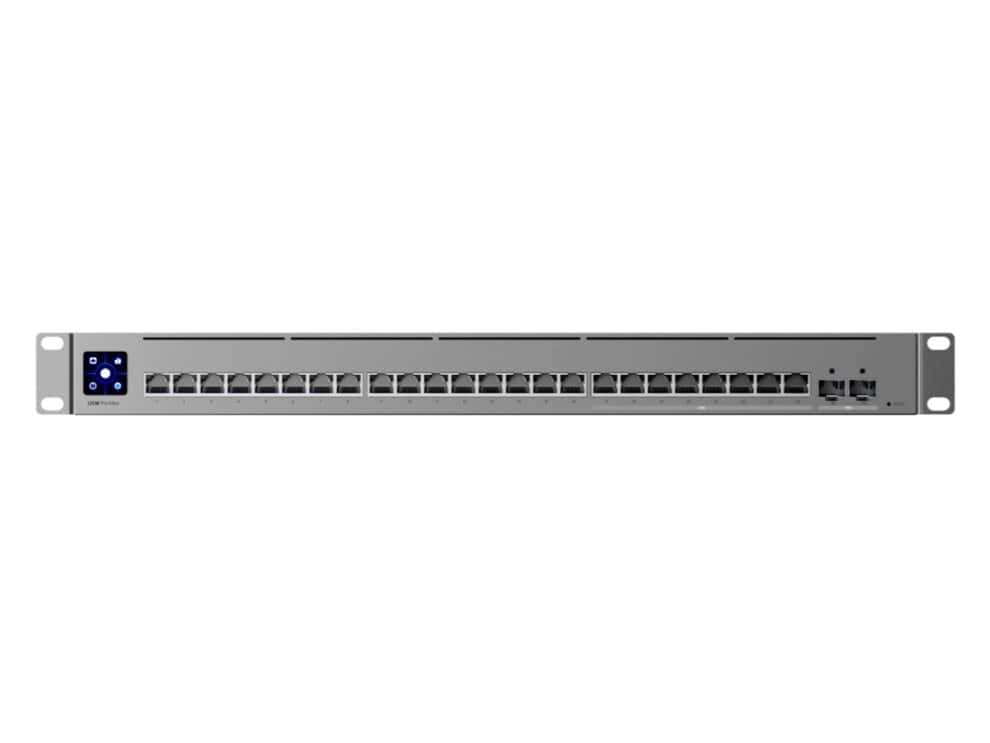

title: Ubiquiti UniFi - Pro Max Etherlighting 24 Port Switch
date: 2024-10-29T16:40:01Z
modified: 2026-05-05T16:48:01Z
permalink: "https://tech.co.za/product/ubiquiti-unifi-pro-max-etherlighting-24-port-switch/"
type: product
status: publish
excerpt: "A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.\\nEtherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*\\n(8) 2.5 GbE RJ45 ports\\n(16) GbE RJ45 ports\\n(2) 10G SFP+ ports\\nDC power backup ready\\nManaged with UniFi Network 8.0.24 and later"
wpid: 517961
product_brand:
  - Ubiquiti
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/24-port-switch.jpg"
---

**Mechanical**
Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
Weight: Without mounting brackets: 4.2 kg (9.3 lb)
With mounting brackets: 4.3 kg (9.5 lb)
Enclosure material: SGCC steel

**Hardware**
Management interface: Ethernet In-Band
Networking interface: (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total non-blocking throughput: 56 Gbps
Switching capacity: 112 Gbps
Forwarding rate: 83.328 Mpps
Power method: (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply: AC/DC, internal, 50W
Supported voltage range: 100—240V AC
Max. power consumption: 50W
LCM display: (1) 1.3″ touchscreen
Button: Factory reset
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
