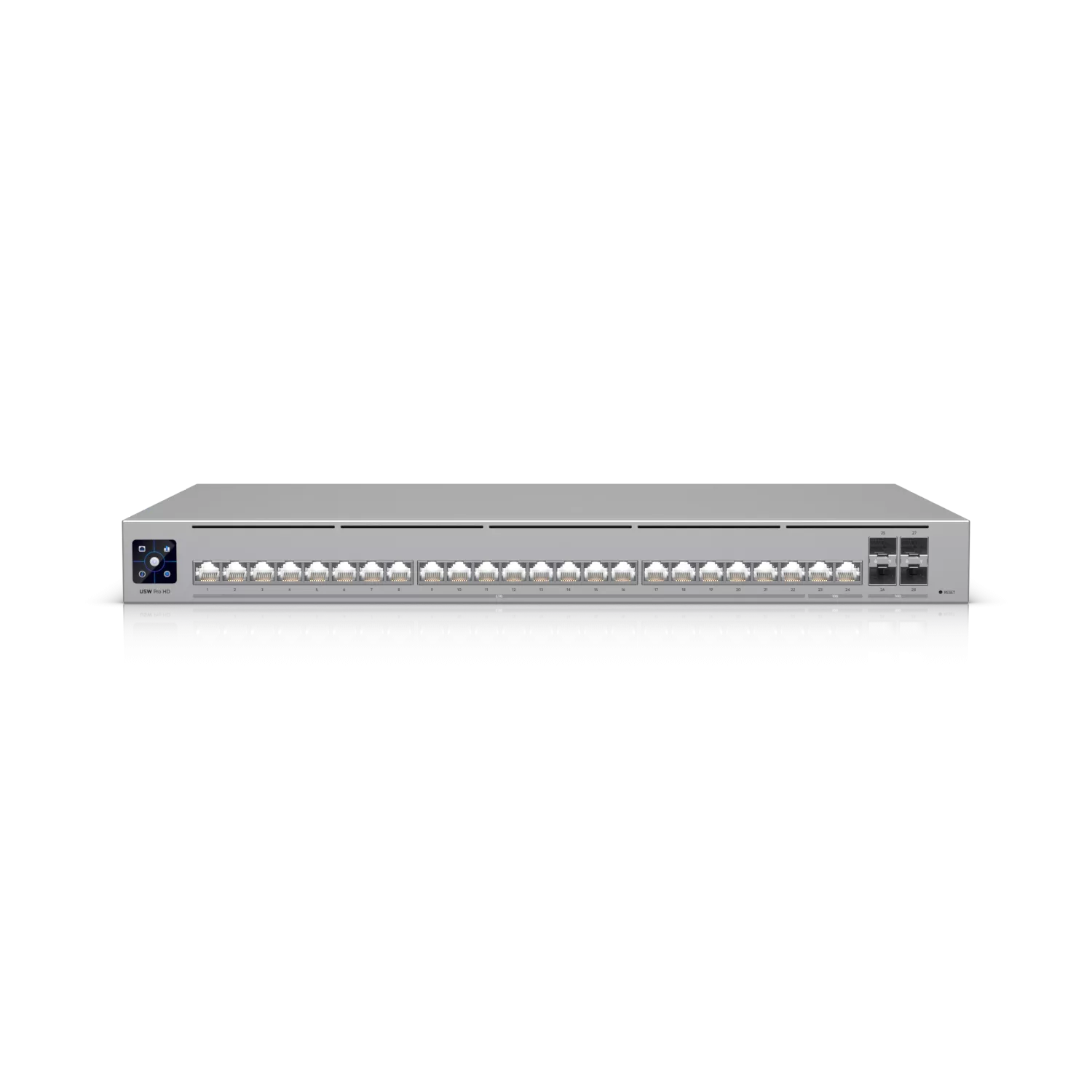

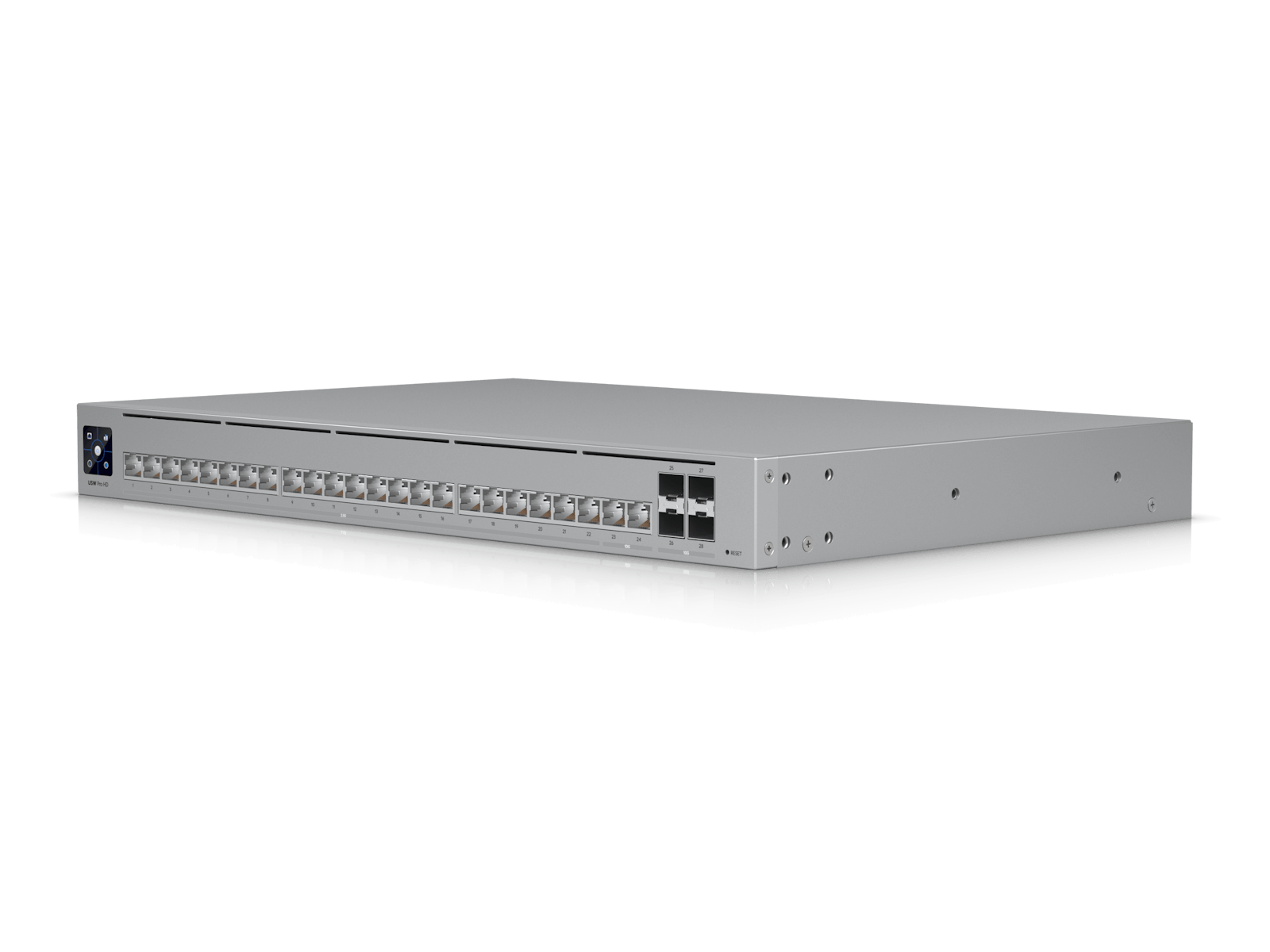

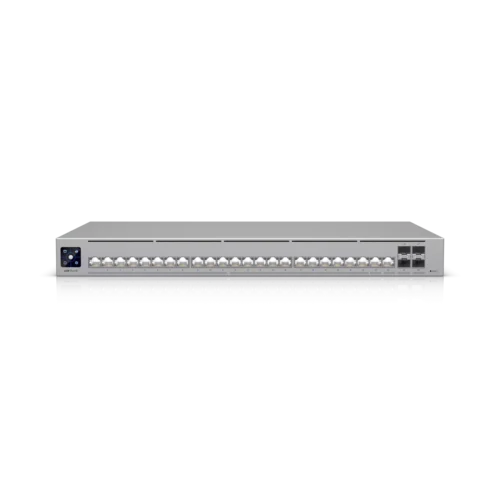

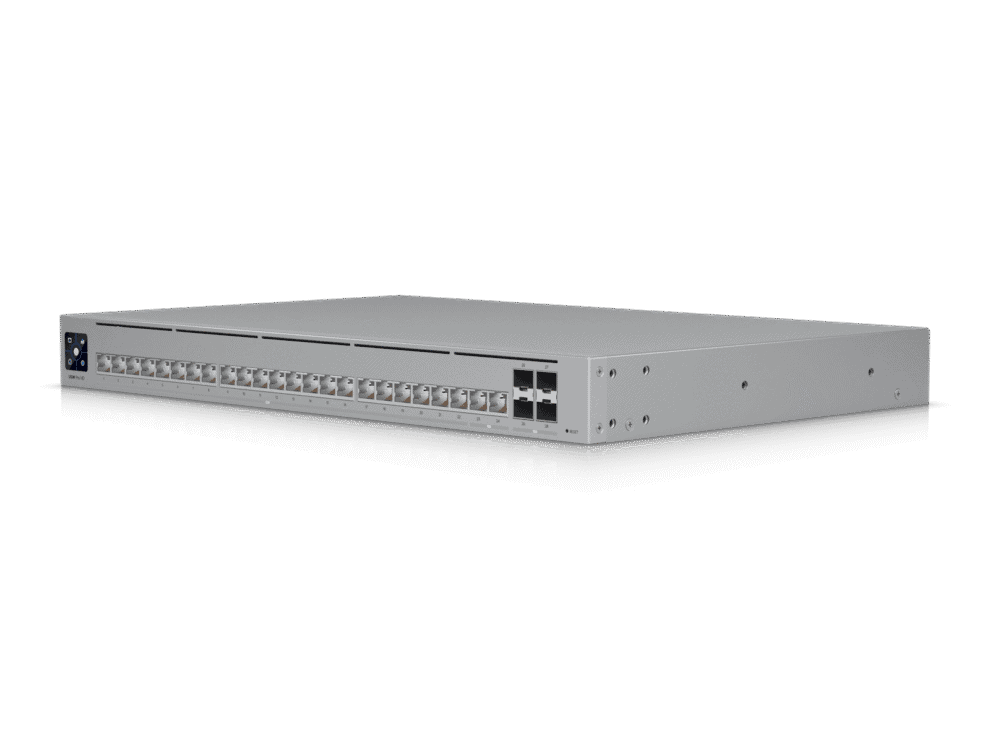

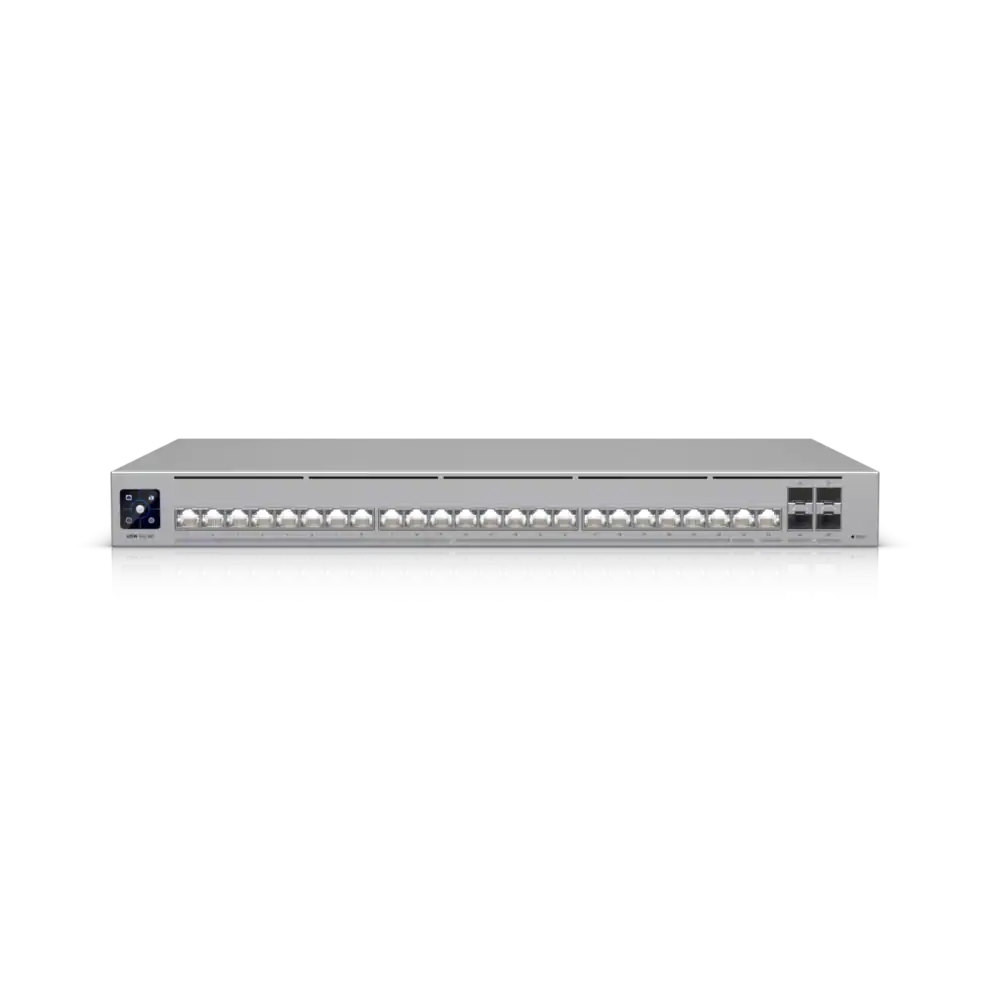

The Ubiquiti UniFi USW-Pro-HD-24 is a professional-grade Layer 3 managed switch engineered for high-density, high-bandwidth network environments. It features 22x 2.5 Gigabit Ethernet RJ45 ports, 2x 10 Gigabit Ethernet RJ45 ports, and 4x 10 Gigabit SFP+ ports, providing a substantial 230 Gbps switching capacity and 115 Gbps non-blocking throughput. This switch incorporates UniFi’s innovative Etherlighting™ technology for illuminated port identification (location, speed/link, VLAN), enhancing network visibility and troubleshooting. With advanced Layer 3 routing capabilities (e.g., static routing, inter-VLAN routing, DHCP server) and comprehensive Layer 2 features, it offers robust traffic management and security. The USW-Pro-HD-24 is designed for rack-mount deployment, includes a 1.3″ touchscreen LCM for real-time status, and is managed seamlessly through the UniFi Network application, making it an ideal solution for demanding enterprise and pro AV networks.
| Dimensions | 442 x 285 x 44 mm |
| Port Layout | 2.5 GbE RJ45 – 22 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 – 2 (10G/5G/2.5G/1G/100M) | |
| 10G SFP+ – 4 (10G/1G) | |

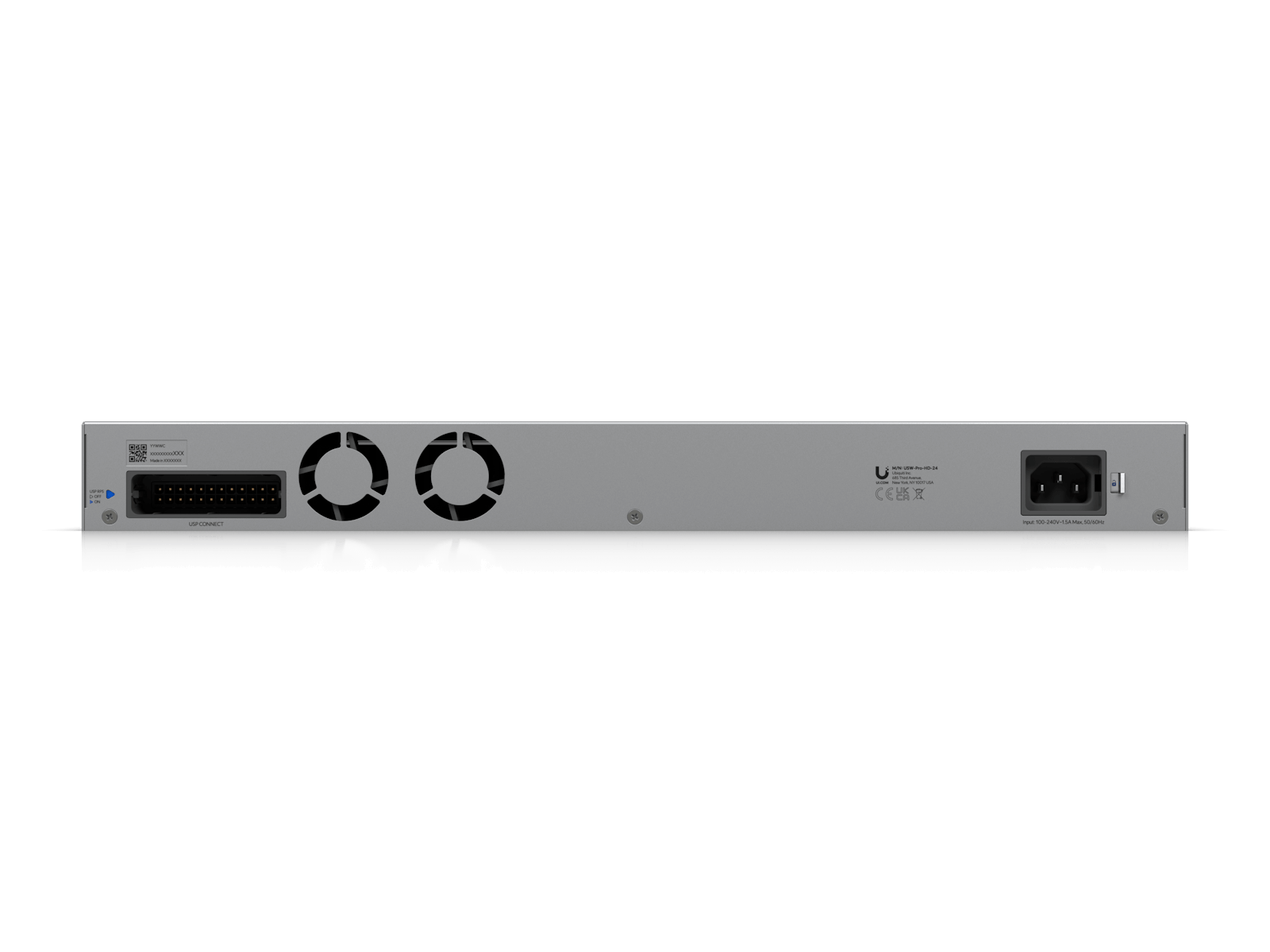

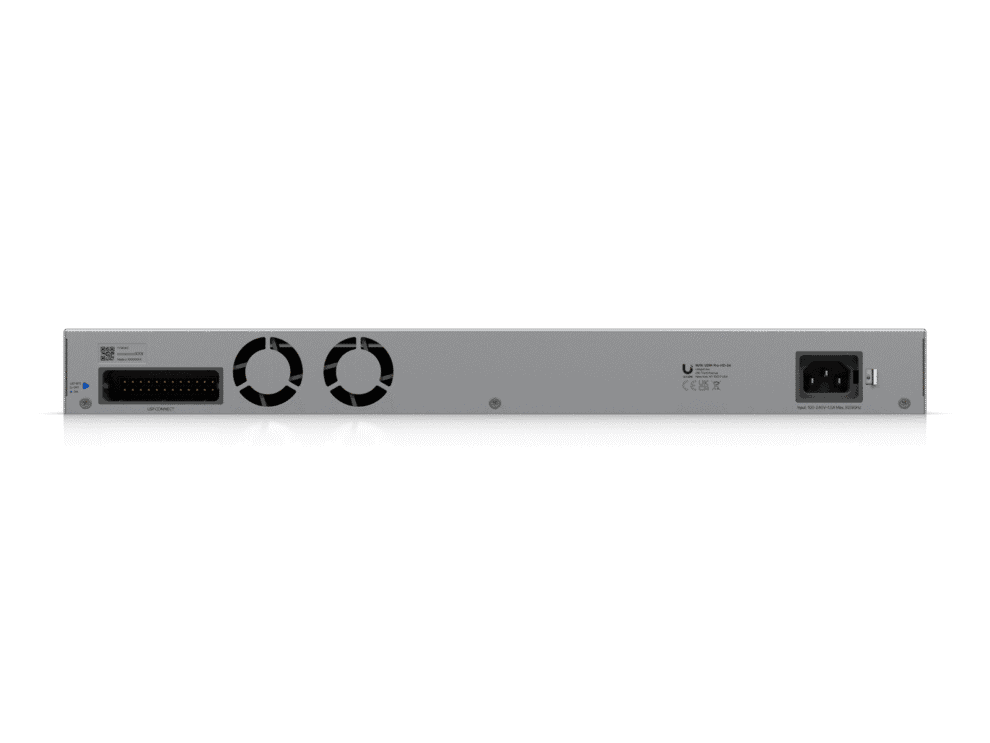

| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | ✓ |
