Mechanical
Dimensions: 98 x 98 x 30 mm (3.6 x 3.6 x 1.2″)
Weight: 302 g (10.7 oz)
Enclosure material: Polycarbonate
Hardware
Management interface:
Ethernet
Bluetooth
Networking interface LAN:
1x GbE RJ45 port
WAN:
1x GbE RJ45 port
Power method: USB type C (5V DC/3A)
Max. power consumption: 10W
Max. TX power:
2.4 GHz
5 GHz
22 dBm
25 dBm
MIMO:
2.4 GHz
5 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate:
2.4 GHz
5 GHz
573.5 Mbps
2.4 Gbps
Antenna gain:
2.4 GHz
5 GHz
4 dBi
5.15 dBi
Antennas:
2x Internal 2.4G/5G WiFi dual-band antenna
1x Internal 2.4G single-band BT antenna

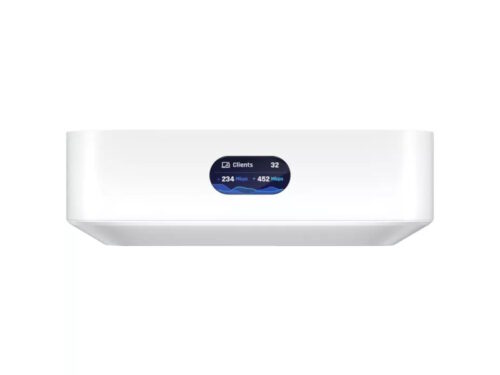

LCM display: 0.96″ status display
Button: Factory reset
Ambient operating temperature: -10 to 45° C (14 to 113° F)
Ambient operating humidity: 5 to 95% noncondensing
