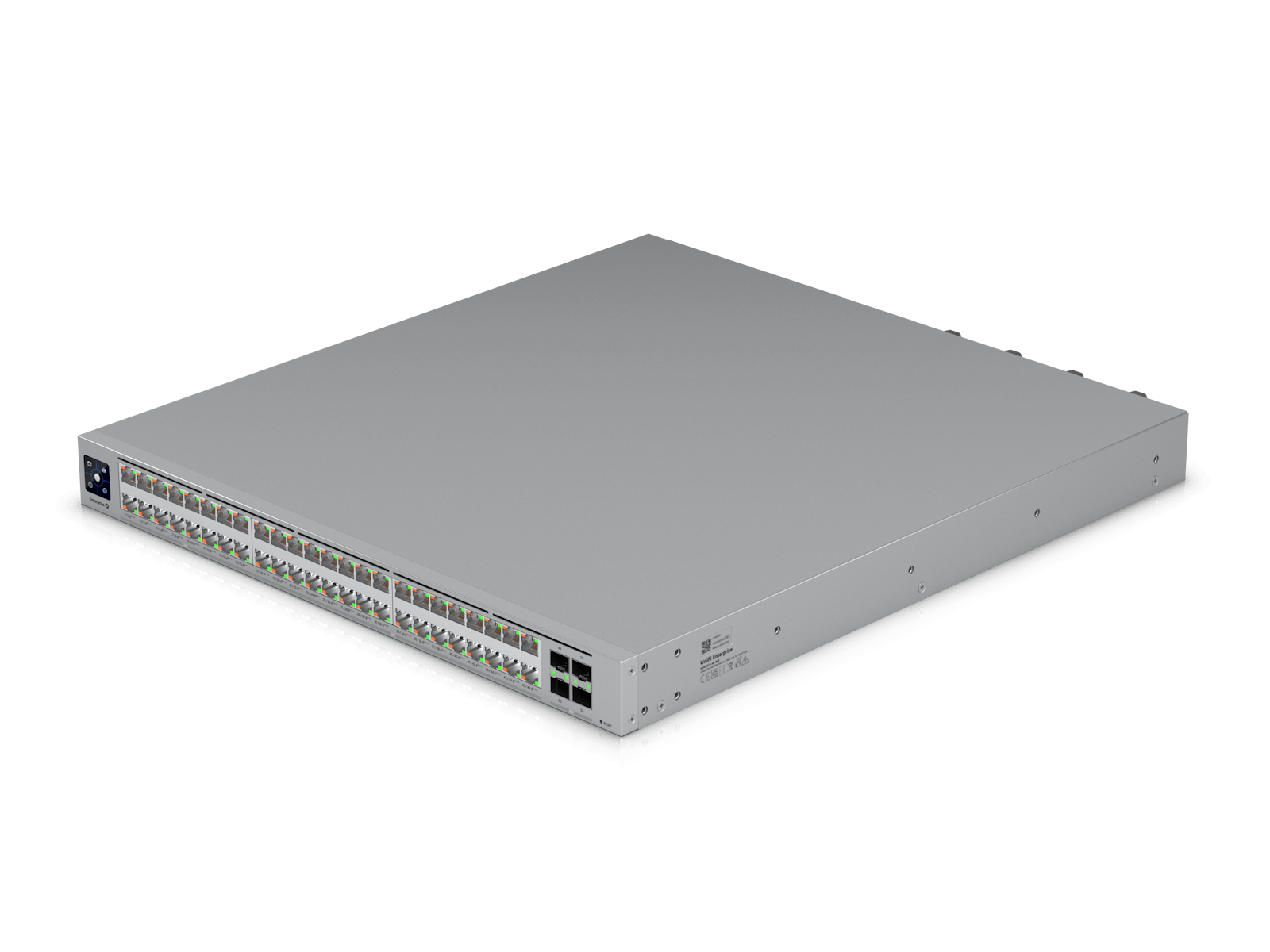

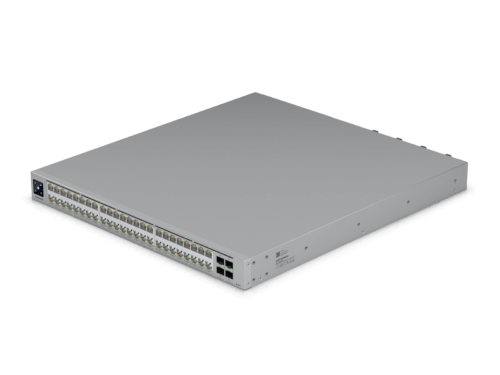

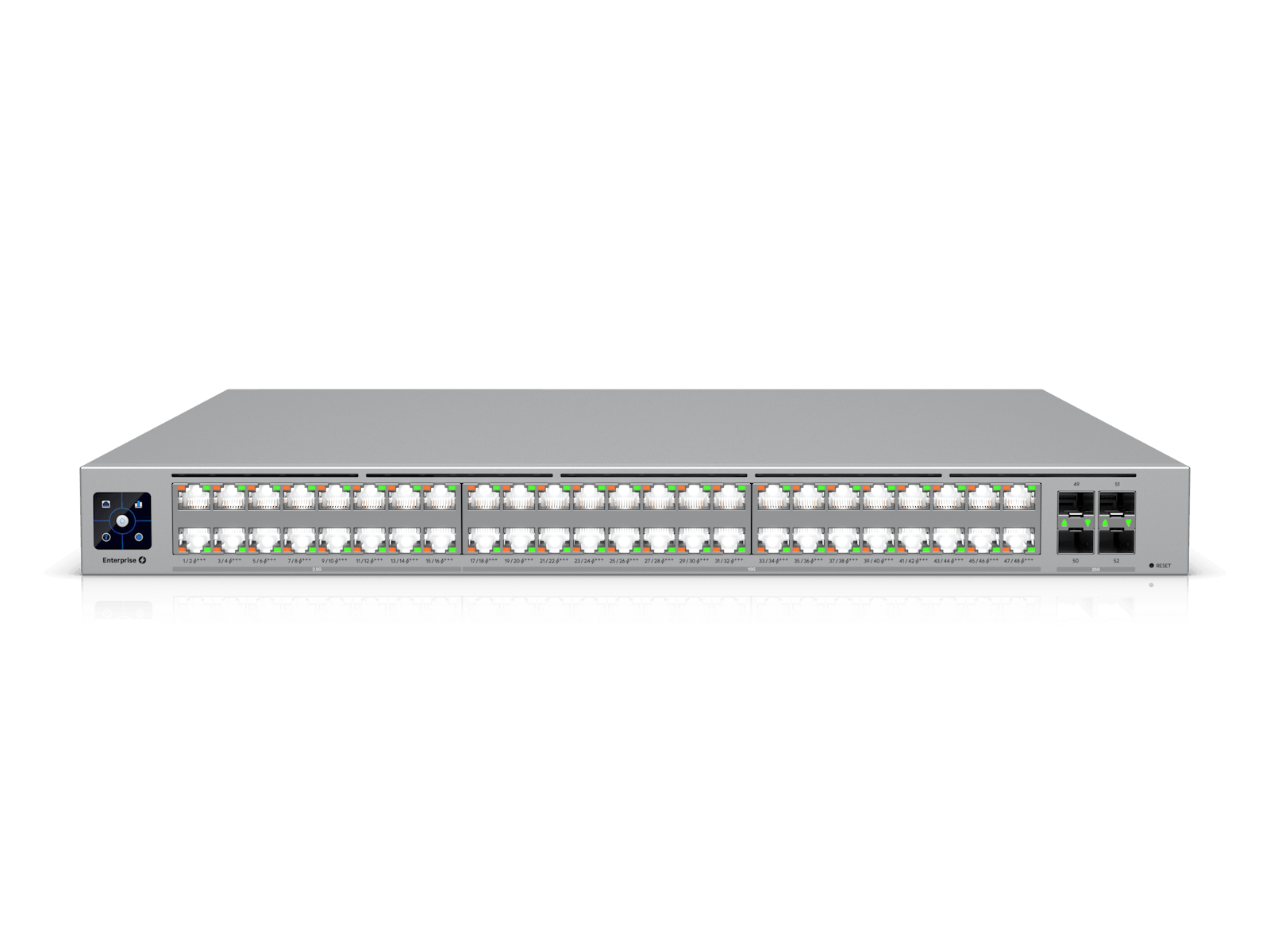

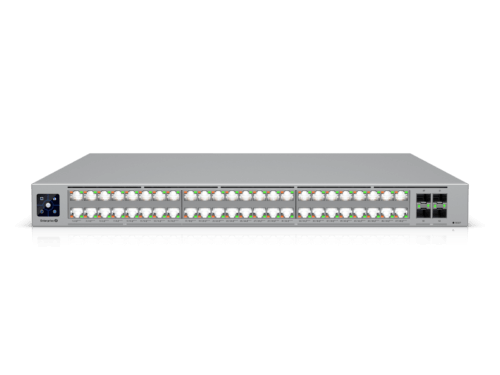

The Ubiquiti UniFi Enterprise Campus Switch, model ECS-48-PoE, is a high-performance, managed switch designed for demanding enterprise networks. It features 48 Gigabit Ethernet ports and provides a substantial total PoE power budget of 2150W, making it suitable for deployments with a high density of powered devices such as Wi-Fi access points, IP cameras, and VoIP phones. The ECS-48-PoE is managed through the UniFi Network application, allowing for centralized configuration, monitoring, and detailed performance analysis from a single interface. This model also includes SFP/SFP+ ports for high-capacity fibre uplinks to your network core. Become an Approved Partner: UBIQUITI ENTERPRISE PARTNER FORM Please note that no orders will be fulfilled without partner registration and approval.
| Dimensions | 442.4 x 43.7 x 496 mm |
| Port Layout | 2.5 GbE RJ45 – 16 (All PoE+++)(2.5G/1G/100M/10M) |
| 10 GbE RJ45 – 32 (All PoE+++)(10G/5G/2.5G/1G/100M/10M) | |
| 25G SFP28 – 4 (25G/10G/1G) | |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W |
| 100-120V AC Shared Mode: 1,750W | |
| 200-240V AC Redundant Mode: 950W | |
| 100-120V AC Redundant Mode: 750W | |
| Redundancy | 2X Hot-Swappable PSUs |
| 4X Hot-Swappable Fans | |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U, Full-Depth) |
| Etherlighting™ | ✓ |
