The EdgePower is a high-power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices. The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.

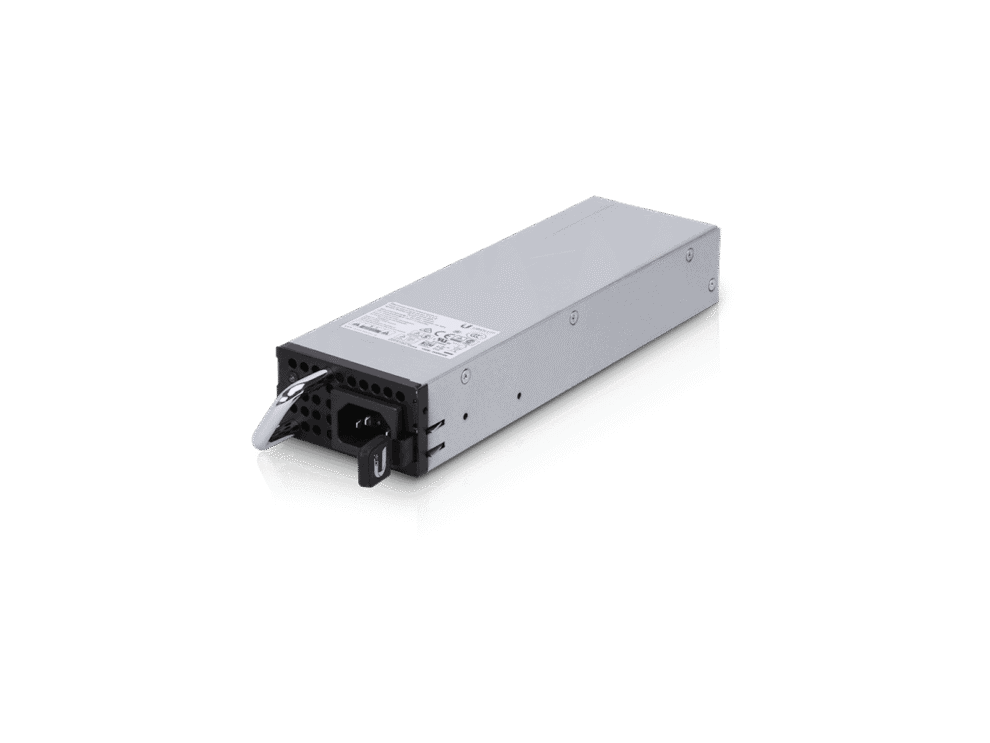

EP-54V-150W-AC
Power method: AC/DC 150W for 110-240V AC input, DC terminal block for 54V output
Power supply: AC/DC 150W for 110-240V AC input
Voltage range: AC/DC for 110-240V AC input, 54V output
LED: System On/Off
ESD/EMP protection: Air ± 8kV; contact ± 6kV
Ambient operating temperature: 0 to 40° C (32 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
EP-54V-150W-DC
Power method: DC/DC 150W for 22–60V input, DC terminal block for 54V output
Power supply: DC/DC 150W for 22–60V input
Voltage range: DC/DC for 22–60V input, 54V output
Battery type: 2/3/4 series lead acid battery
Maximum charging voltage
2 series: 26.8–27.5V
3 series: 40.2–41.2V
4 series: 53.6–55V
Discharge protection voltage
2 series: 21.5V
3 series: 32V
4 series: 43V
Charging current
2 series: 0.3A
3 series: 0.3A
4 series: 0.2A
LED: System On/Off
ESD/EMP protection: Air ± 8kV; contact ± 6kV
Ambient operating temperature: 0 to 40° C (32 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
