Modular Design
Interchangeable Antennas

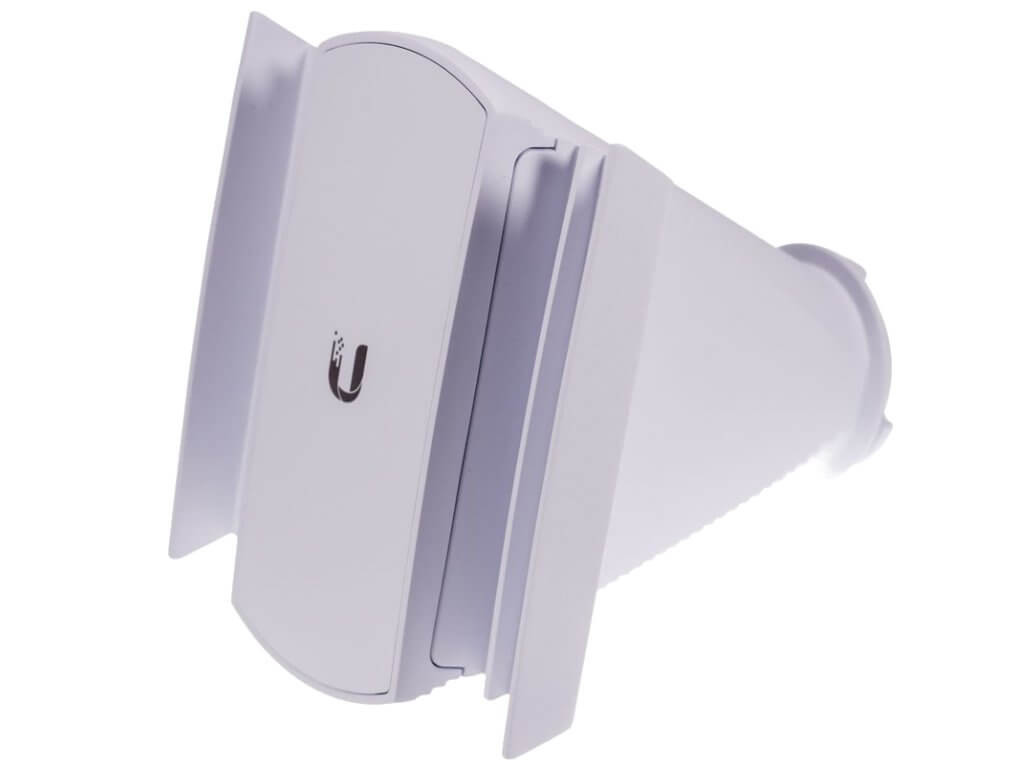

The PrismAP antennas come with precise radiation angles
for specific beam shaping, ranging from 30° to 90°, making
them suitable for a wider range of installations.
• Designed for increased co-location performance
• Available in 30o, 45o, 60o, and 90o designs
• Designed for use with PS-5AC, IS-5AC, and IS-M5
• Single button release for ease of changing antennas
• Newly designed horn for improved beam shaping
Dimensions Ø 221.4 x 184.2 mm (8.71 x 7.3″)
Weight 1.1 kg (38.8 oz)
Supported Frequency Range 5.15 – 5.85 GHz
Gain 19 dBi
HPOL Beamwidth 30°
VPOL Beamwidth 30°
Elevation Beamwidth 30°
Maximum VSWR 1.7:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
