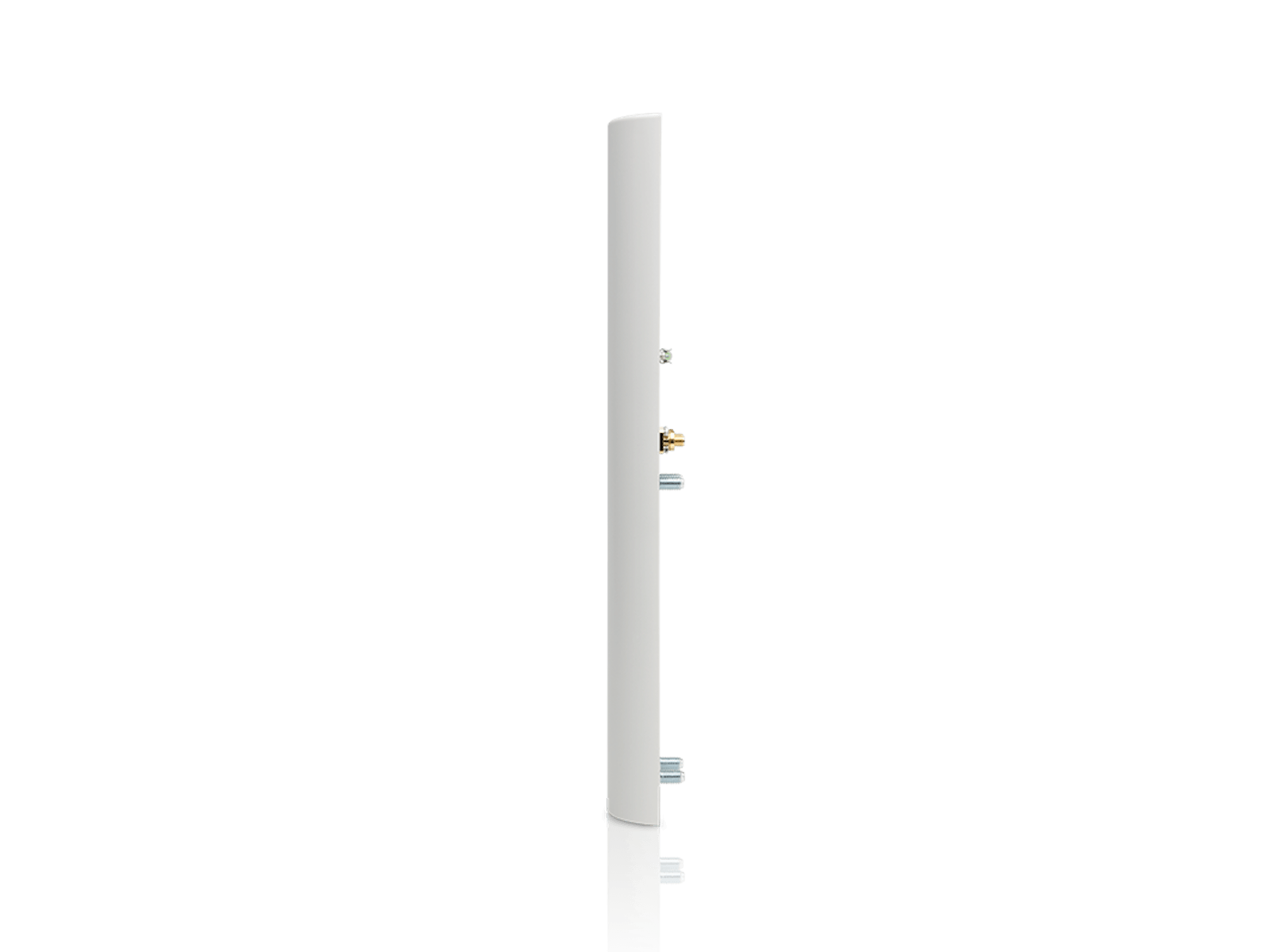

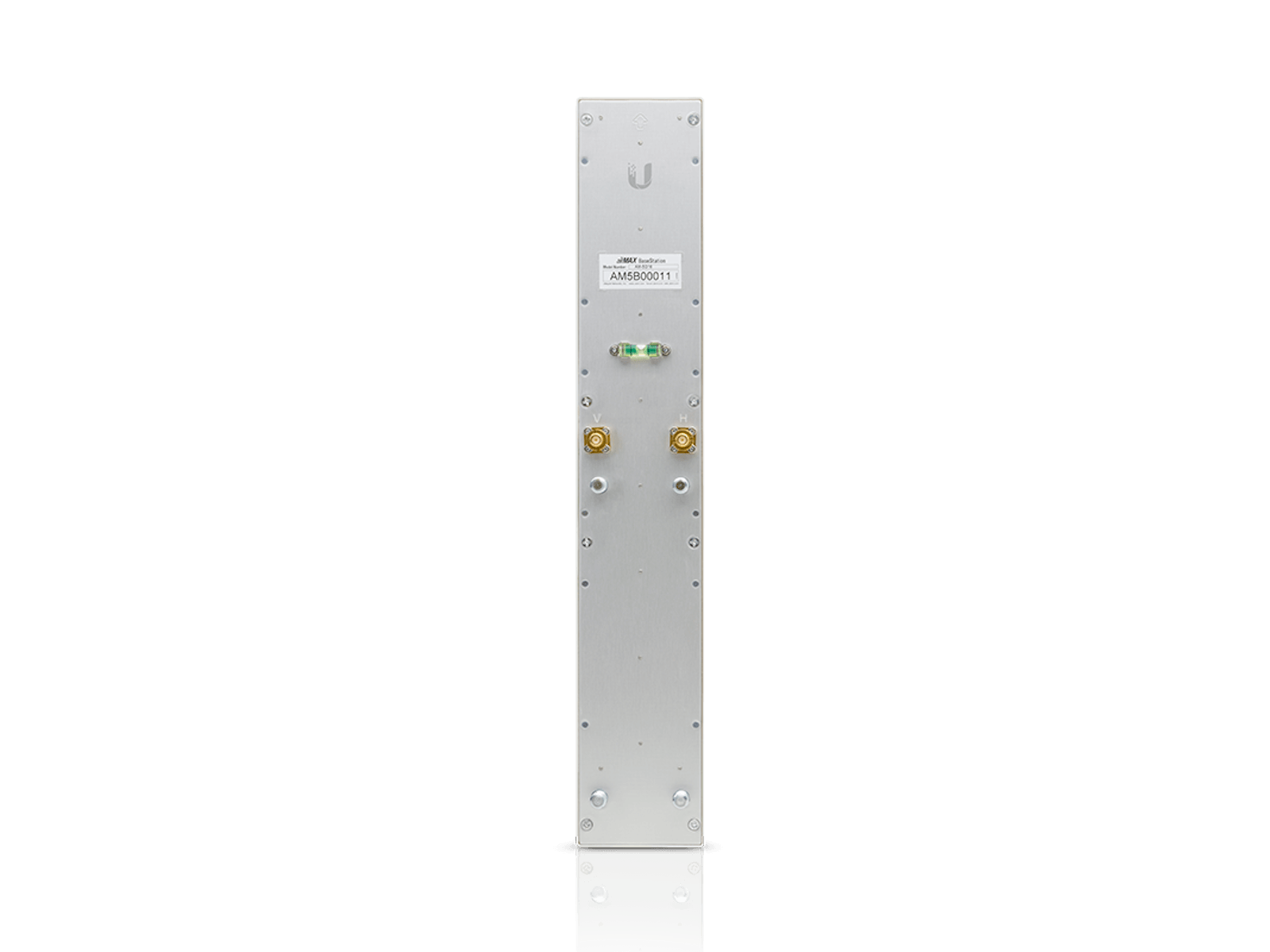

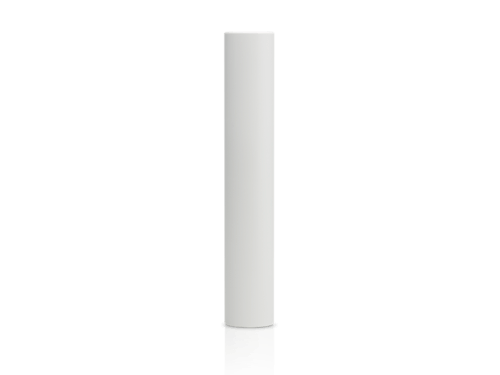

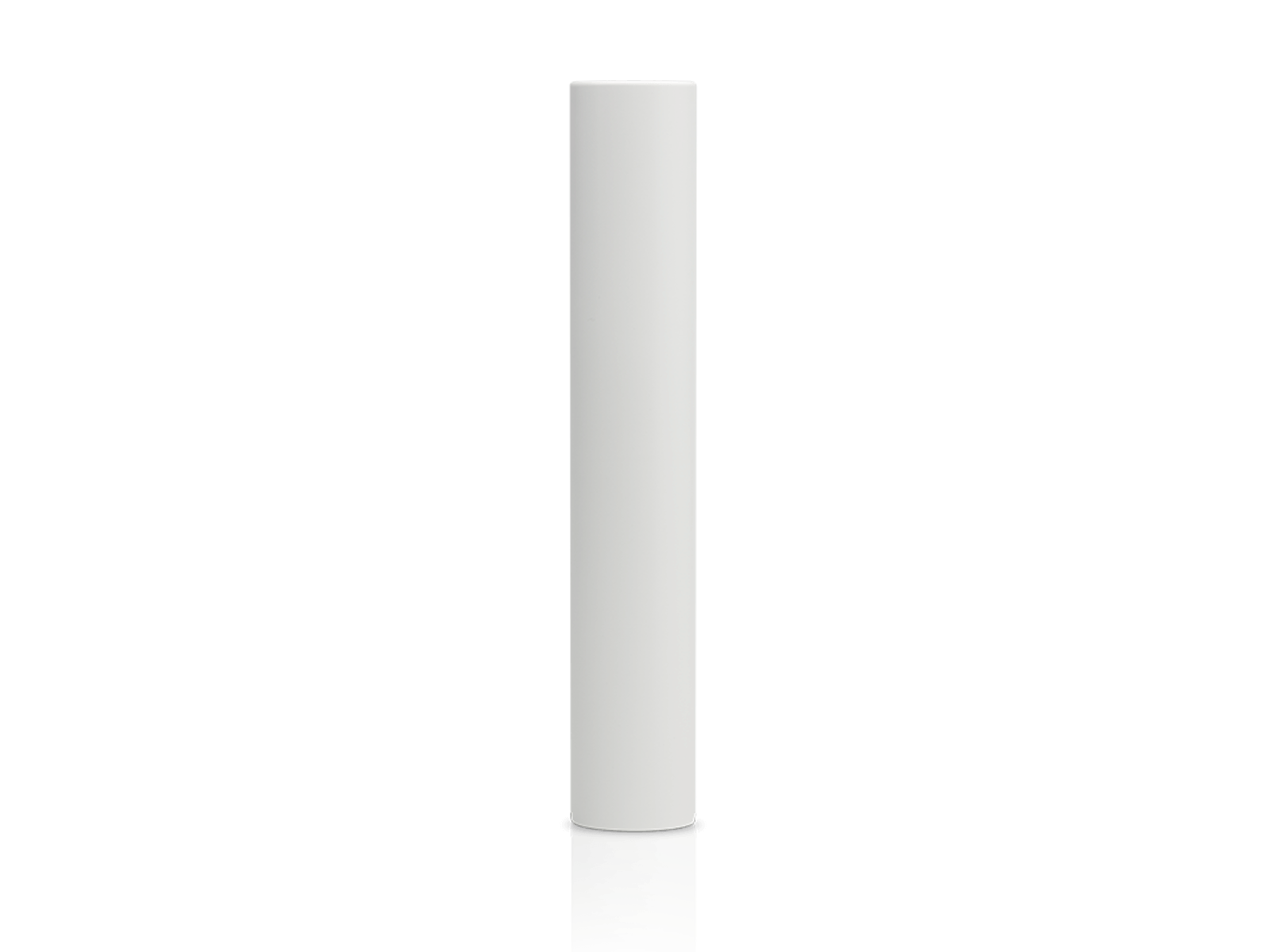

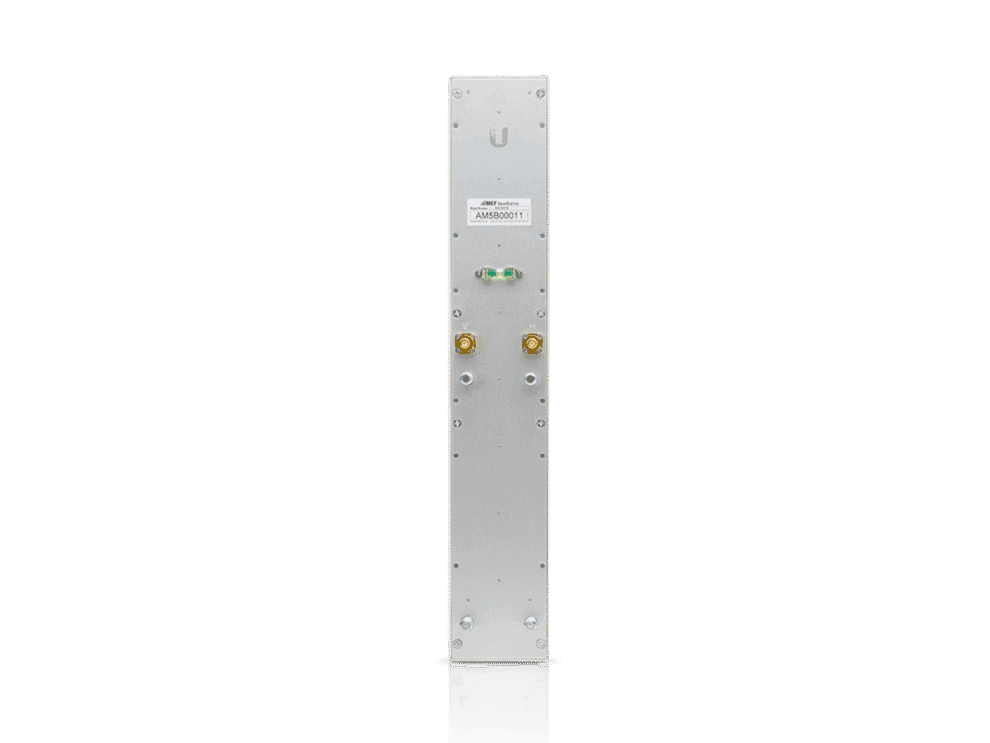

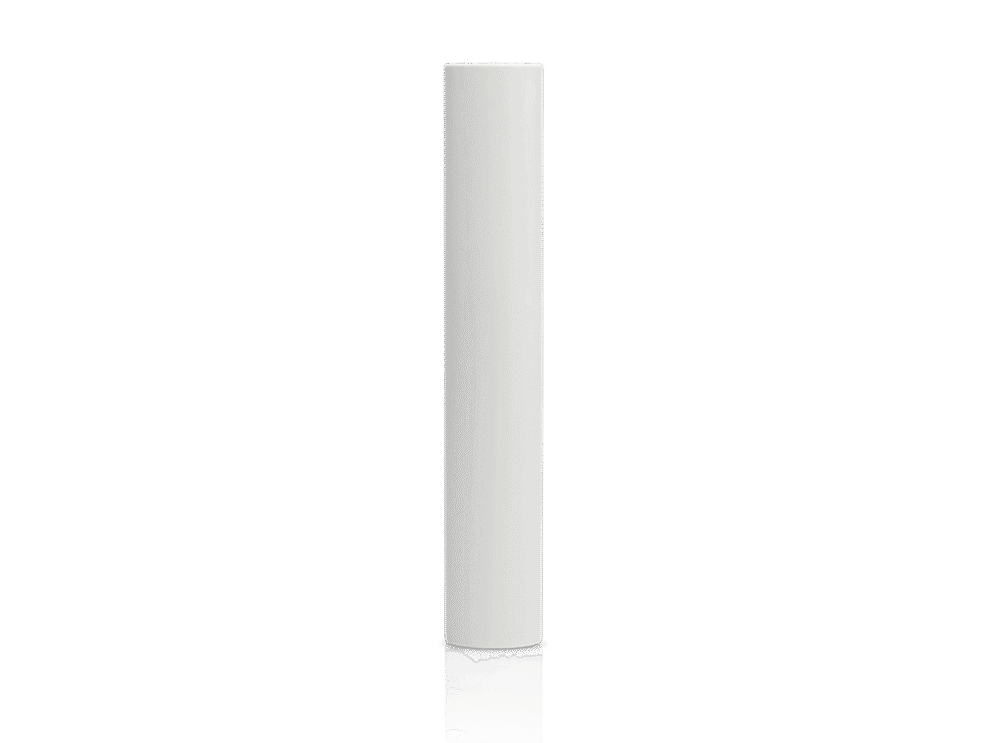

Ubiquiti’s UISP AM-5G16-120 provides high-performance, wide-area coverage for 5 GHz wireless networks. With a 16/17 dBi gain and a 120° sector, it delivers reliable point-to-multipoint connectivity while reducing interference. Ideal for outdoor deployments, the antenna is designed to work specifically with the airMAX RocketM series and NanoStation series, offering enhanced signal clarity and long-range performance in demanding environments.
| Dimensions | 367 x 63 x 41 mm (14.4 x 2.5 x 1.6″) |
| Weight | 1.1 kg (2.4 lb) |
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 15.0 – 16.0 dBi |
| HPOL Beamwidth | 137° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 26 N @ 160 km/h (6 lbf @100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 22 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
