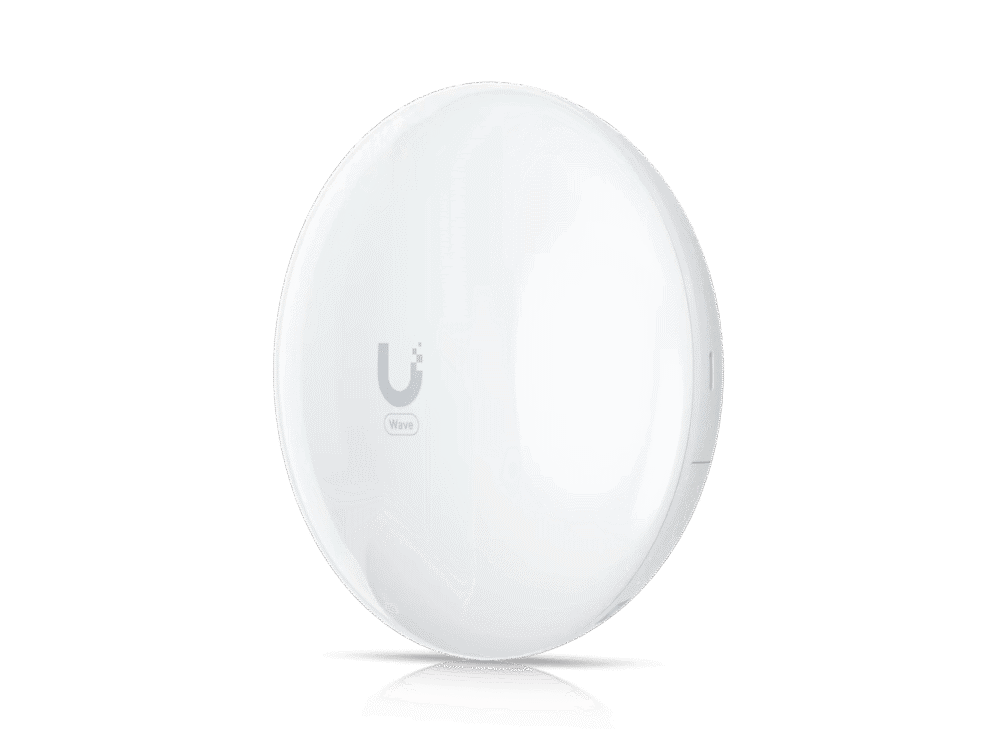

title: Ubiquiti UISP 60GHz/5GHz PtMP Wave Station
date: 2024-10-29T16:11:15Z
modified: 2026-05-22T15:00:48Z
permalink: "https://tech.co.za/product/ubiquiti-uisp-60ghz-5ghz-ptmp-wave-station/"
type: product
status: publish
excerpt: Lightweight, compact 60 GHz PtMP station powered by Wave Technology.
wpid: 517881
product_brand:
  - Ubiquiti
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Access Points
  - Networking
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/Wave-Pico.png"
---

| **Mechanical** |  |
| --- | --- |
| **Dimensions** | **Ø152.1 x 55.8 mm (Ø6 x 2.2″)** |
| **Weight** | **Without mount: 347 g (12.2 oz) With mount: 409 g (14.4 oz)** |
| **Enclosure material** | **UV stabilized polycarbonate** |
| **Mount material** | **UV stabilized polycarbonate** |
| **Pole mount diameter** | **20 to 53.1 mm (0.8 to 2.1″) on pipe outer diameter** |
| **Wind loading** | **31.3 N at 200 km/h (7 lbf at 125 mph)** |
| **Weatherproofing** | **IPX6** |
| **Hardware** |  |
| **Processor** | **Dual-core ARM® Cortex®-A53 at 1 GHz** |
| **Memory** | **DDR3L 512 MB** |
| **Networking interface** | **(1) GbE RJ45 port** |
| **Max. power consumption** | **10W** |
| **Power method** | **Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only** |
| **Power supply** | **48V DC, 0.5A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch** |
| **Supported voltage range** | **44–54V DC 22–27V DC** |
| **GPS** | **No** |
| **Button** | **Factory reset** |
| **LEDs** | **Power, Ethernet, link** |
| **Ambient operating temperature** | **-40 to 60° C (-40 to 140° F)** |
| **Ambient operating humidity** | **5 to 95% noncondensing** |
| **Certifications** | **FCC, IC, CE** |
| **Software** |  |
| **Operating mode** | **PtMP station, PtP** |
| **Ubiquiti specific features** | **Wave AI, discovery protocol** |
| **Services** | **UISP, ping watchdog, NTP client, SNMP** |
| **Tools** | **Antenna alignment, discovery utility, ping, trace route, speed test, cable test\*, site survey\*, traffic shaping\*\* \*FW version 3.3.0 and later. \*\*FW version 3.4.0 and later.** |
| **Network** | **Bridge/Router\* mode \*Router is available in PtMP station mode only.** |
| **Application requirements** | **UISP web: Version 2.4.61 and later UISP mobile iOS™: Version 2.32.0 and later UISP mobile Android™: Version 2.31.9 and later** |
| **System** |  |
| **Total throughput** | **2 Gbps (1.5 Gbps duplex)** |
| **Max. range** | **Up to 1.3 km (Wave AP) Up to 0.9 km (Wave AP Micro)** |
| **Encryption** | **WPA2-PSK (AES)** |
| **RF** |  |
| **Operating frequency\*** | **57–71 GHz \*Depends on regulatory region.** |
| **Channel bandwidth** | **2160, 1080, 540\* MHz \*FW version 3.3.0 and later.** |
| **Operating channels\*** | **58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz \*Depends on regulatory region.** |
| **Modulation** | **16QAM, QPSK** |
| **Antenna gain** | **27.7 dBi** |
| **Polarization** | **Vertically linear** |
| **Beamwidth** | **Azimuth: 3 dB 6° Elevation: 3 dB 6°** |
| **Back-Up RF** |  |
| **WiFi standard** | **802.11ax (WiFi 6)** |
| **Operating frequency\* US/CA Worldwide** | **U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz 5180 – 5875 MHz \*Depends on regulatory region.** |
| **Channel bandwidth** | **20, 40, 80 MHz** |
| **Modulation** | **BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)** |
| **Antenna gain** | **9 dBi** |
| **Polarization** | **Dual-linear** |
| **Beamwidth** | **Azimuth: 3 dB 50° Elevation: 3 dB 50°** |
| **Cross-pol isolation** | **15 dB** |
