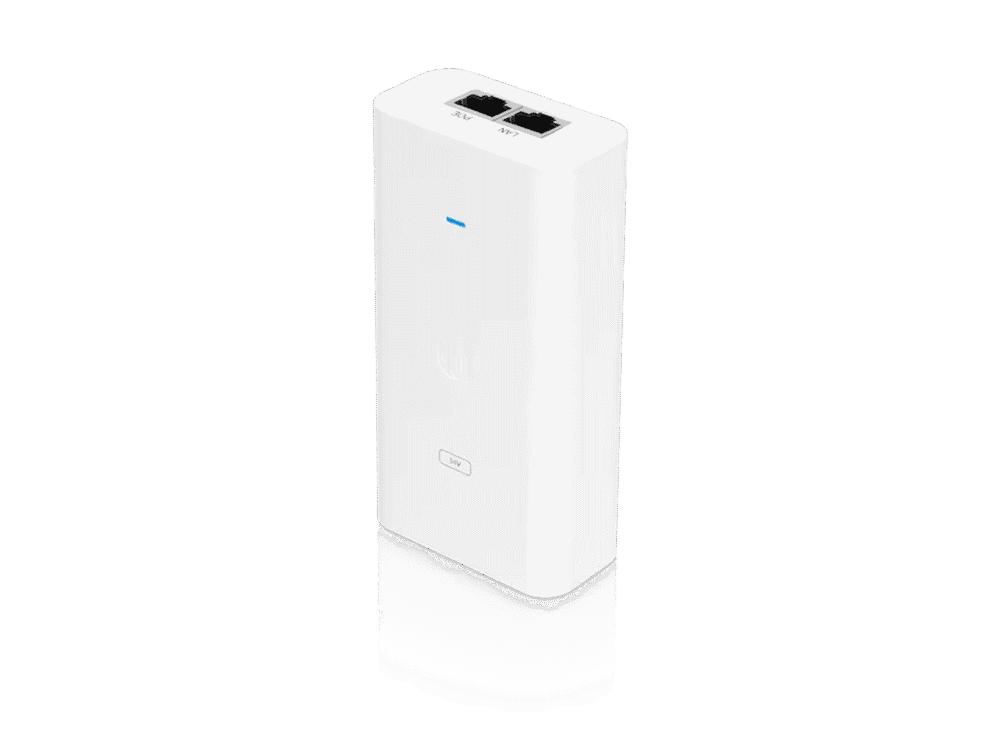

POE-54V-80W
Dimensions: 123 x 65 x 34 mm (4.8 x 2.6 x 1.3”)
Weight: 299 g (10.6 oz)
Output voltage: 54V DC @ 1.5A
LAN activity indicator: No
Gigabit LAN port: Yes
Remote reset capability: No
Reset button: No
Rated voltage: 100-240V AC @ 50/60Hz
Input current: 0.8A @ 120V AC, 0.4A @ 240V AC
Inrush current: <80A Peak @ 120V AC, <120A Peak @ 230V AC
Efficiency: 87+%
Output ripple: 1% Max.
Switching frequency: 100 kHz Max.
Line regulation: ≤ 3%
Load regulation: ≤ 5%
2-pair powering: –
4-pair powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
AC connector: IEC-320 C6
Data IN / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 μs) power
Peak pulse current: 36A (10/1000 μs) data
Shunt capacitance: <5 pF data
Response time: <1 ns
Storage temperature: -30 to 70°C (-22 to 158° F)
Ambient operating temperature: 0 to 40° C (32 to 104° F)
Ambient operating humidity: 35 to 95% noncondensing
Certifications: CE, FCC, IC, UL
