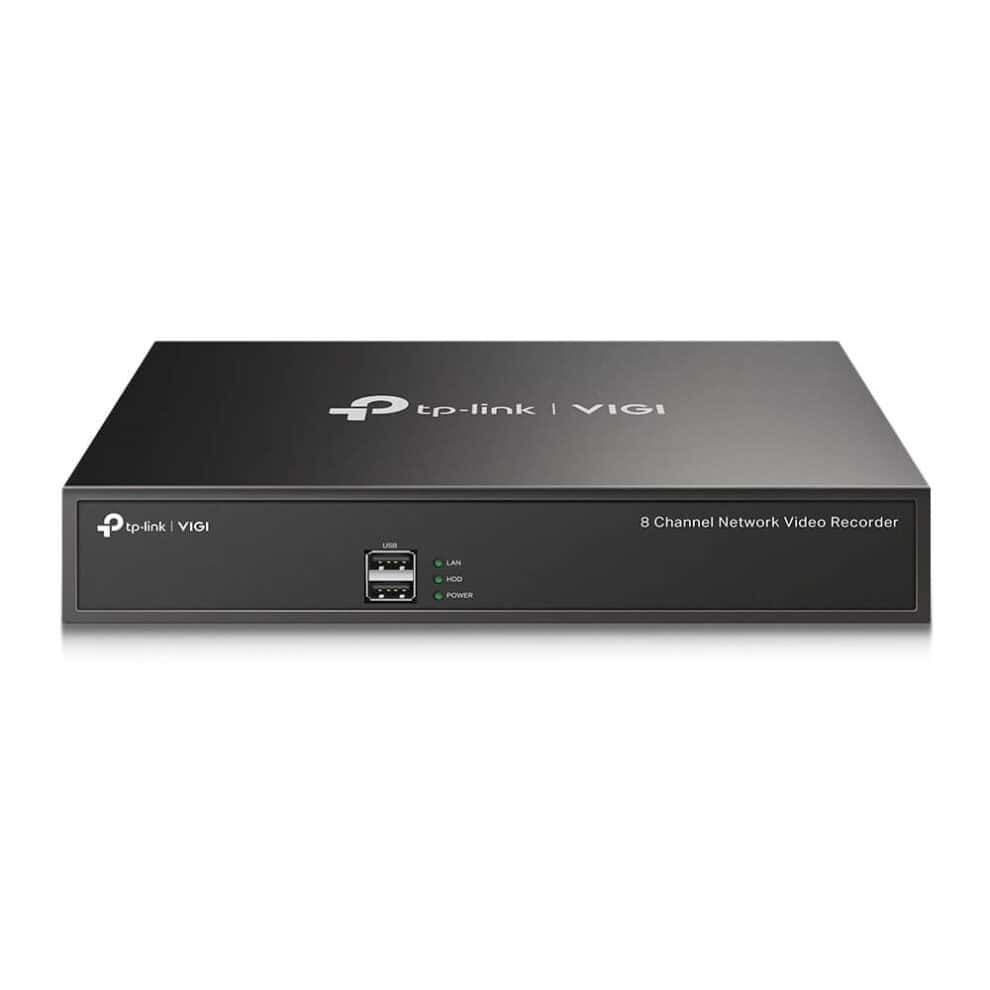

TP-Link VIGI NVR1008H VIGI 8 Channel Network Video Recorder

• 24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
• 8-Channel Real-Time Live View: Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle.
• Simultaneous Playback: Replay the feed from up to 4 cameras† at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
• H.265+ Smart Video Coding: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. 1 HDD Interface (up to 10 TB)△: Stores up to 10 TB (524 days of video) on a SATA hard drive, keeping your data storage secured locally.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
• 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

NETWORK
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access: Android, iOS

Incoming Bandwith: 80 Mbps

Outgoing Bandwidth: 60 Mbps

Web Browser: Chrome (57+), Firefox (52+), Edge (91+)

Interoperability: ONVIF, CGI

GENERAL
Operating Temperature : -10–55 °C

Storage Temperature: -40–70 °C

Storage Humidity: 10%~90% RH Non-Condensing

Weight: 578.5 g

Package Contents:
– VIGI Network Video Recorder
– Power Adapter
– HDD Screws
– Mouse
– Quick Installation Guide

Chassis: 1U Chassis

Working Temperature:
– NVR: -10–55 °C
– Power Adapter: 0–40 °C

Working Humidity: 10%~90% RH Non-Condensing

Dimensions( W X D X H ): 246.2 × 148.2 × 45 mm

External Power Supply: DC 12V/1.5A

Net Weight: 0.59 kg

Gross Weight: 0.95 kg

Power Consumption: 4.25 W (without disk)

Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

INTERFACES
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface: 2× USB 2.0

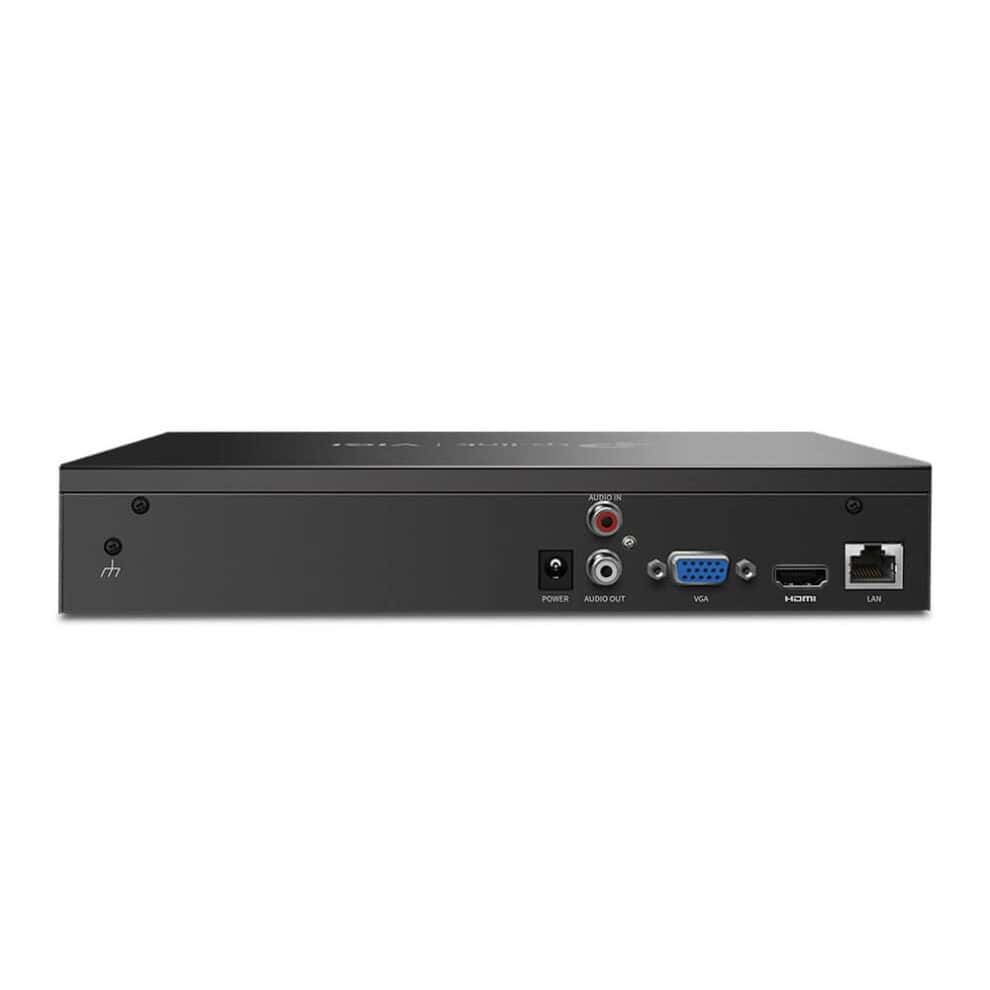

EXTERNAL INTERFACE
Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface: 2× USB 2.0

Audio Interface: 1, Audio In; 1, Audio Out

Alarm In/Out: N/A

Serial Interface: N/A

Power: 1× DC Jack

Reset Button: 1

Speaker: N/A

eSATA: N/A

HDMI: 1

VGA: 1

HARD DISK
SATA: 1 SATA Interface

Capacity: Up to 10 TB

ALARM
General Alarm:
– Motion Detection
– Video Tampering
– Line-Crossing Detection
– Intrusion Detection
– Region Entering Detection
– Region Exiting Detection
– Object Abandoned/Removal Detection
– Vehicle Detection
– Human Detection
– Smart Frame

Anomaly Alarm:
– Video Loss
– Offline and IP Conflict
– Disk Exception
– Login Exception

Alarm Linkage:
– Recording
– White Light Alarm
– Buzzer
– Log
– Audible Alarm

RECORD MANAGEMENT
Record Mode:
– Manual Recording
– Scheduling Recording
– Motion Detection Recording

Playback Mode:
– Instant Playback
– Regular Playback
– Tag Playback
– Event Playback

Backup Mode:
– Regular Backup
– Video Clip Backup

Playback Function:
– Play
– Pause
– Stop
– Fast Forward
– Fast Backward
– Play By Frame
– Full Screen
– Video Clip
– Export Clip
– Digital Zoom
– Lock Recording
– Audio On/Off

VIDEO/IMAGE
Video Input: 8-Channel IP Video Input, up to 8 MP Resolution

Video Output:
– Recording Resolution: 5 MP/ 4 MP/3 MP/1080p /UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
– HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440×900/60Hz

Recording Resolution: Recording Resolution: 8 MP/ 5 MP/ 4 MP/ 3 MP/1080p/UXGA720p/ VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VIDEO AND AUDIO
IP Video Input: 8-Channel

Incoming Bandwidth: 80 Mbps

Outgoing Bandwidth: 60 Mbps

HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA Simultaneous Output

Multi-View Display: 1/4/6/8

DECODING
Audio Compression: G.711A/G.711U/G.726

Decoding Format: H.265+/H.265/ H.264+/H.264

Video Compression: H.265+/H.265/ H.264+/H.264

Record Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Live View/Playback Resolution:
– 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA
– 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback: 4 Channel†

Capability: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
