- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
NETWORK
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith: 80 Mbps
Outgoing Bandwidth: 60 Mbps
GENERAL
Operating Temperature: -10–55 °C
Package Contents:
– VIGI Network Video Recorder
– Power Adapter
– HDD Screws
– Mouse
– Quick Installation Guide
Dimensions( W X D X H ): 294 × 180 × 44 mm
PoE:
– Standard: 802.3af/at
– PoE Ports: Ports 1-8
– PoE Budget: 113 W
External Power Supply: 53.5V DC/2.43 A
Power Consumption: 4.82 W (without disk)

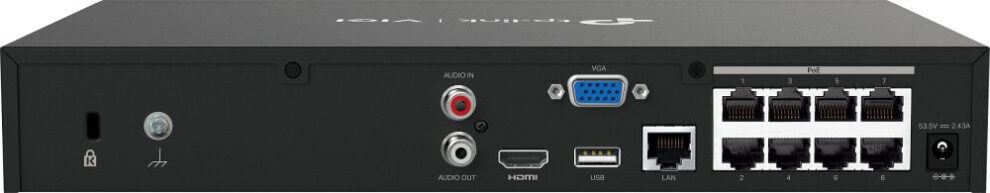

INTERFACES
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2× USB 2.0
HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 10 TB
VIDEO/IMAGE
Video Input: 8-Channel IP Video Input, up to 8 MP Resolution
Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz,
DECODING
Decoding Format: H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 8 Channel
Capability: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
