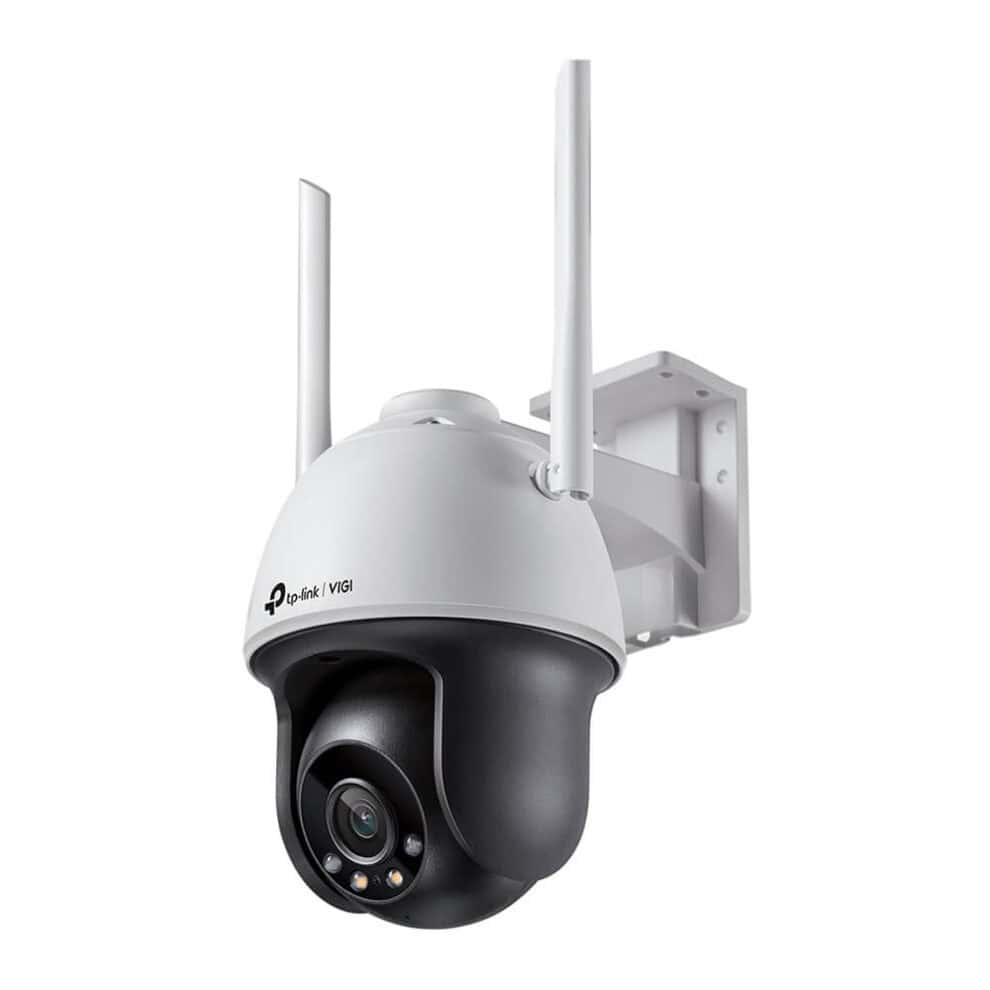

title: TP-Link VIGI C540-W(4mm) VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera
date: 2024-07-19T12:54:48Z
modified: 2026-05-22T18:01:52Z
permalink: "https://tech.co.za/product/tp-link-vigi-c540-w4mm-vigi-4mp-outdoor-full-color-wi-fi-pan-tilt-network-camera/"
type: product
status: publish
excerpt: "Fixed Focal Lens, 1/3” Progressive Scan CMOS, Fixed focal lens (4 mm), 3D DNR, Pan: 0° to 350°, Tilt: 0° to 120°, 2560 X 1440"
wpid: 496130
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Smart Home
  - Smart Security
featured_image: "https://tech.co.za/wp-content/uploads/2024/08/0_large_20221121065901f.jpg"
---

- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
- Automatic Tracking: Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

**CAMERA**
Image Sensor: 1/3” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000 s

Slow Shutter: Yes

Aperture: 4 mm: F1.6

Lens: Fixed focal lens (4 mm)

Lens Mount: M12

Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/white light

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/ Scheduled/ Auto

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP66

IR Working Distance: 30m

Pan/Tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°

Illumination Distance: 30 m

Viewing Angle: (4mm) Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°

Digital Zoom: Yes

**LENS**
Type: Fixed Focal Lens

Focal Length: 4 mm

Aperture: F1.6

FOV: 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount: M12

DORI Distance:
4 mm:
– Detect: 80 m (262 ft)
– Observe: 33 m (109 ft)
– Recognize: 16 m (52 ft)
– Identify: 8 m (26 ft)

**PTZ**
Pan/tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°

Pan/tilt Speed:
– Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s
– Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s

Manual Control Speed: Configurable from 8° to 35°/s

Presets: 300

Patrol Scan: 8 patrols, up to 8 presets for each patrol

Power-off Memory: Yes

Park Action: Yes

3D Positioning: Preset, Patrol Scan

ANGLE ADJUSTMENT (MANUAL)
Range:
– Pan: 0° to 348°
– Tilt: 0° to 120°

ILLUMINATOR
IR LED:
Quantity: 2
– Range: 30m;
– Wavelength: 850nm

White LED: Quantity: 2

Range: 30m

Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

**VIDEO**
Max. Resolution: 2560 X 1440

Main Stream:
– Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080

Sub-Stream
– Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution:
640×480, 352×288, 320×240

Bit Rate Control: CBR, VBR

Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Main Stream Supported

H.265 Type: Main Profile

H.265+: Main Stream Supported

Video Bit Rate:
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

**IMAGE**
Image Settings:
– Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
– White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Image Parameters Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

**AUDIO**
Audio Communication: Two-Way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environment Noise Filtering: Yes

Audio Bit Rate: 64 Kbps(G.711 alaw)

**NETWORK**
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Wireless Rate:
– 11 Mbps (802.11b)
– 54 Mbps (802.11g)
– 150 Mbps (802.11n)

Wireless Security: WPA/WPA2-PSK

ONVIF: Yes

API: Open Network Video Interface (Profile S)

Simultaneous Live View: Up to 6 Channels

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser:
– Google Chrome® 57 and above
– Firefox® 52 and above
– Safari® 11 and above
– Microsoft® Edge 91 and above

Cloud: Yes

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage: NAS (NFS, SMB/ CIFS)

Frequency: 2.4 GHz

**WIRELESS**
Standards: IEEE 802.11b/g/n

WiFi Channels: 1-13

Frequency: 2.4 GHz

Wireless Transmit Power: High

Auto Wireless Channel: N/A

Wireless Statistics: N/A

Throughput Monitoring: N/A

Radio Bandwidth:
– Auto: N/A
– 20M: Yes
– 40M: Yes

Wireless Rate:
– 11Mbps(802.11b)
– 54Mbps(802.11g)
– 150/300Mbps(802.11n)

Wireless Security: PWPA/WPA2-PSK

Wireless Mode: AP, AP Client

**ALARM AND EVENT MANAGEMENT**
Smart Event: Area Intrusion Detection, Line-Crossing Detection, People Detection

Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method: N/A

Output Notification: Message Push

**INTERFACES**
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input: Built-in Microphone

Audio Output: N/A

Alarm: N/A

Reset Button: Yes

Power: DC Power Port

Button: Reset Button

Slot: Micro SD card

On-board Storage:
– Built-In Memory Card Slot, Support MicroSD Card,
– Up to 256 GB

Built-in Microphone: Yes

Built-in Speaker: Yes

Audio: N/A

**GENERAL**
Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Operating Humidity: 95% or Less (Non-Condensing)

Storage Humidity: 95% or Less (Non-Condensing)

Package Contents:
– VIGI Network Camera
– Quick Start Guide
– Waterproof Cable Attachments
– Power Adapter
– Mounting Accessories

Dimensions( H X W X D ): 120 × 172 × 198 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Plug

Net Weight: 0.62 Kg

Gross Weight: 1.21 Kg

Power Consumption: Max 15.3W

Power Supply: 12V DC; 1.5A

Antenna:
Quantity: 2
– Type: 2.4GHz Welded Dipole Omni-Directional Antenna
– Gain: 2.0dBi

Protection: IP66

Product Dimensions (L x W x H): 120 × 172 × 198 mm (excluding antennas)

Certifications: CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC

**VIDEO/IMAGE**
Video Compression:
– Main stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Main Stream Supported

H.265 Type: Main Profile

H.265+: Main Stream Supported

Frame Rate & Resolutions:
– Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
– Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640×480, 352×288, 320×240

Max. Resolution: 2560 X 1440

Video Streaming:
– Main Stream
– Sub-Stream

Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate:
– Main Stream: 256 Kbps to 3 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps

Day/Night Switch: Day/Night/Auto/Schedule-Switch

Privacy Mask: Up to 4 Masks

**SMART FEATURE-SET**
Smart Event:
– Human & Vehicle Classification, Area Intrusion
– Detection, Line-Crossing Detection, People
– Detection, Area Entrance Detection, Area Exiting
– Detection, Abandoned Object Detection, Object
– Removal Detection, Vehicle Detection

Basic Event:
– Motion Detection, Video Tampering Detection,
– Exception ( illegal login)

Linkage Method: N/A

Region of Interest: 1 Region

Alarm Linkage:
– Memory Card Video Recording, Message Push,
– Audible Warning, White Light Flashing

Output Notification: Message Push
