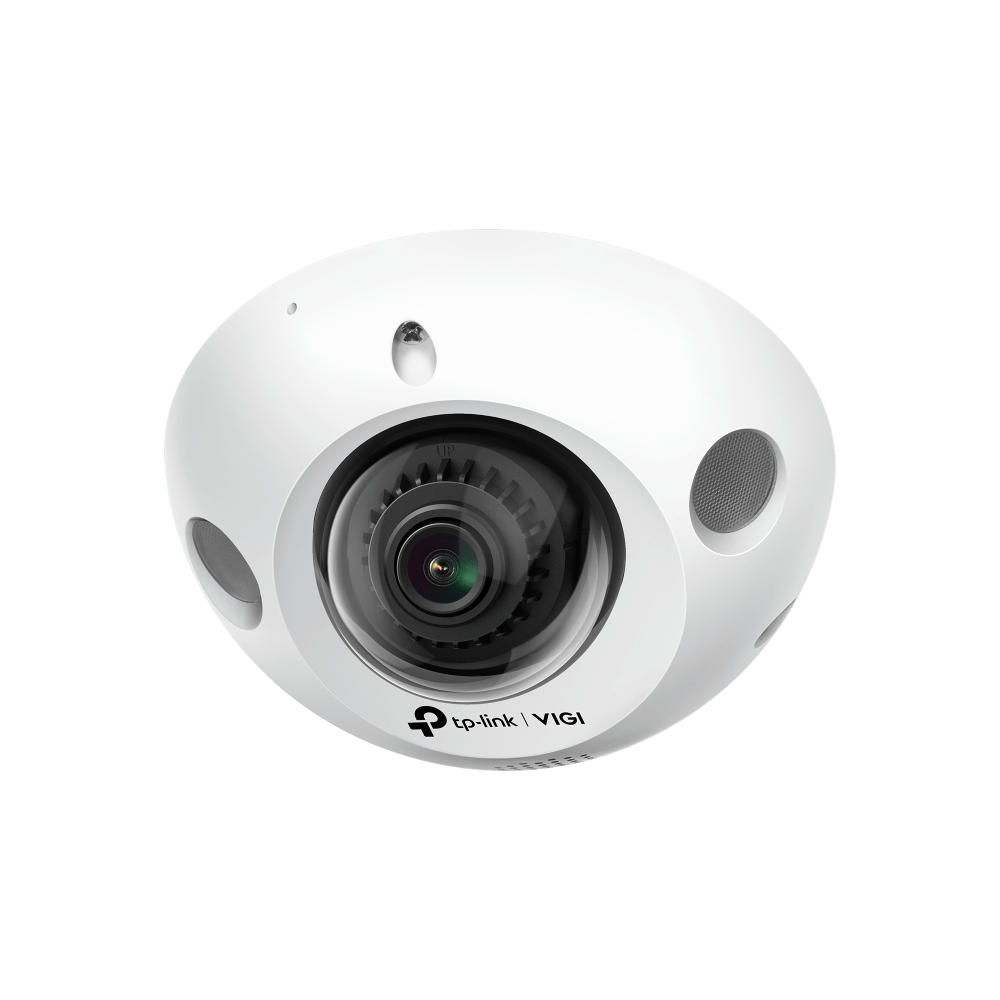

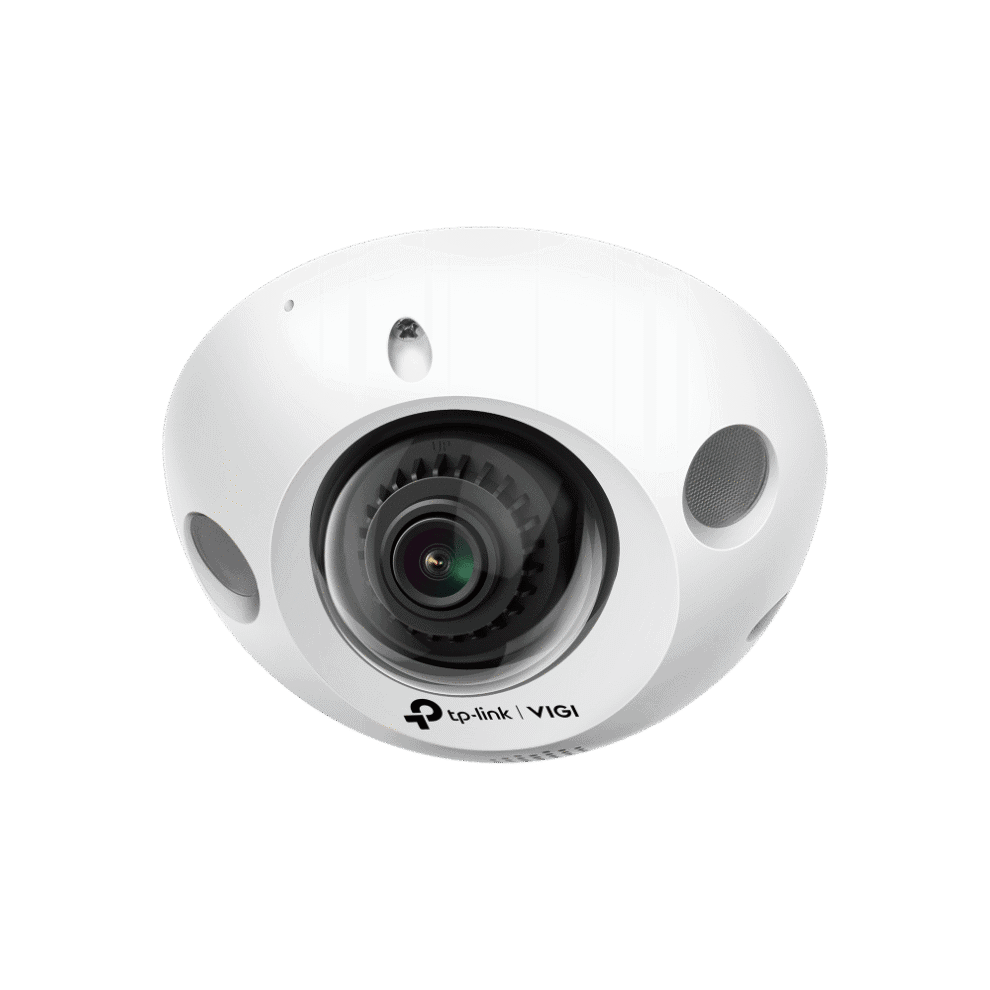

featured_image_alt: TP-Link VIGI security camera, white, wide lens.
---

- 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
- Small but compact with wide views: With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
- IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

**CAMERA**
Image Sensor: 1/2.8” Progressive Scan CMOS

Lens: 2.8 mm

Day/Night Switch: Unified/ Scheduled/ Auto

Digital Noise Reduction: 3D DNR

WDR: DWDR

IR Working Distance: 30m

Shutter Speed: 1/3 to 1/10000 s

Aperture: F1.6

Lens Mount: M12

Viewing Angle: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°

Slow Shutter: Yes

Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism: IR Cut Filter

**NETWORK**
Protocol:
– TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
– RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF: Yes

API: ONVIF

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser: Open Network Video Interface (Profile S)

Cloud: Yes

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

**GENERAL**
Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Operating Humidity: 95% or Less (Non-Condensing)

Storage Humidity: 95% or Less (Non-Condensing)

Package Contents:
– VIGI Network Camera
– Quick Start Guide
– Mounting Accessories
– Mounting Template

Dimensions( H X W X D ): 114 × 114 × 58 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Net Weight: 0.23 kg

Gross Weight: 0.41 kg

Power Consumption:
– 12V DC: Max 7.5W
– PoE: Class 0

Power Supply:
– 12V DC ± 5%, 5.5mm Coaxial Power Plug
– PoE (802.3af/at, class 0)

Vandal Resistant: IK08

Protection: IK08

Product Dimensions (L x W x H): 114× 58× 114 mm

Certifications: CE/VCCI/BSMI/KC/ONVIF

**INTERFACES**
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm: N/A

Reset Button: Yes

Power: DC Power Port

Button: Reset Button

Video Output: –

On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone: Yes

Built-in Speaker: Yes

Audio: N/A

**ALARM AND EVENT MANAGEMENT**
Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning

Linkage Method: N/A

Output Notification: Message Push

**VIDEO/IMAGE**
Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264

Frame Rate & Resolutions:
– Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720
– Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704×576, 640×480, 352×288, 320×240

Max. Resolution: 3MP (2304 × 1296)

Video Streaming:
– 3 Main Streams
– 3 Sub-Streams

Image Setting: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bit Rate: 64 Kbps to 4 Mbps

Day/Night Switch: Day/Night/Auto/Schedule

**SMART FEATURE-SET**
Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Linkage Method: Trigger Notification: ONVIF, HTTPS

Region of Interest: 1 Region

**AUDIO**
Audio Communication: Two-Way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environment Noise Filtering: Yes

Audio Bit Rate: 64 Kbps(G.711 alaw)

**ILLUMINATOR**
– IR LED:
– Quantity: 2
– Range: 30m
– Wavelength: 850nm

White LED: N/A

Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

**LENS**
Type: Fixed Focal Lens

Focal Length: 2.8 mm

Aperture: F1.6

FOV: 2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°

Lens Mount: M12

DORI Distance:
– 2.8mm ;
– Detect: 49 m (161 ft)
– Observe: 20 m (67 ft)
– Recognize: 10 m (32 ft)
– Identify: 5 m (16 ft)

**ANGLE ADJUSTMENT (MANUAL)**
Range:
– Pan: -30° to 30°
– Tilt: 0° to 85°
– Rotate: -15° to 15°

**VIDEO**
Max. Resolution: 2304 × 1296

Main Stream:
– Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution: 2304×1296, 2048×1280, 1920×1080,1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:
– Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Resolution: 704×576, 640×480, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR

Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Main Stream Supported

H.265 Type: Main Profile

H.265+: Main Stream Supported

Video Bit Rate:
– Main Stream: 256 Kbps to 4 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps

**IMAGE**
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Image Parameters Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes
