Video and Audio
IP Video Input: 16-Channel
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode: HDMI/VGA Simultaneous Output
Multi-View Display: 1/4/6/8/9/16
Decoding
Audio Compression: G.711A/G.711U/G.726
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-Channel
Capability: 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
30fps: 4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode: Instant Playback, Rgular Playback, Tag Playback, Event Playback
Backup Mode: Regular Backup, Video Clip Backup
Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
Protocol: UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF, CGI

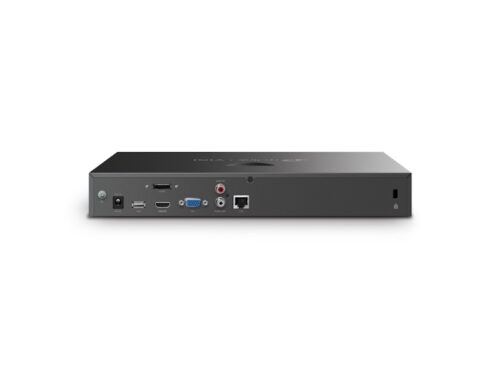

External Interface
Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface: 1, Audio In; 1, Audio Out
Power: 1× DC Jack
Reset Button: 1
eSATA: 1
HDMI: 1
VGA: 1
