- Support 1000BASE-T Operation in Host Systems
- Support TX Disable function
- For 100m* Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
PACKAGE CONTENTS
Package Contents:

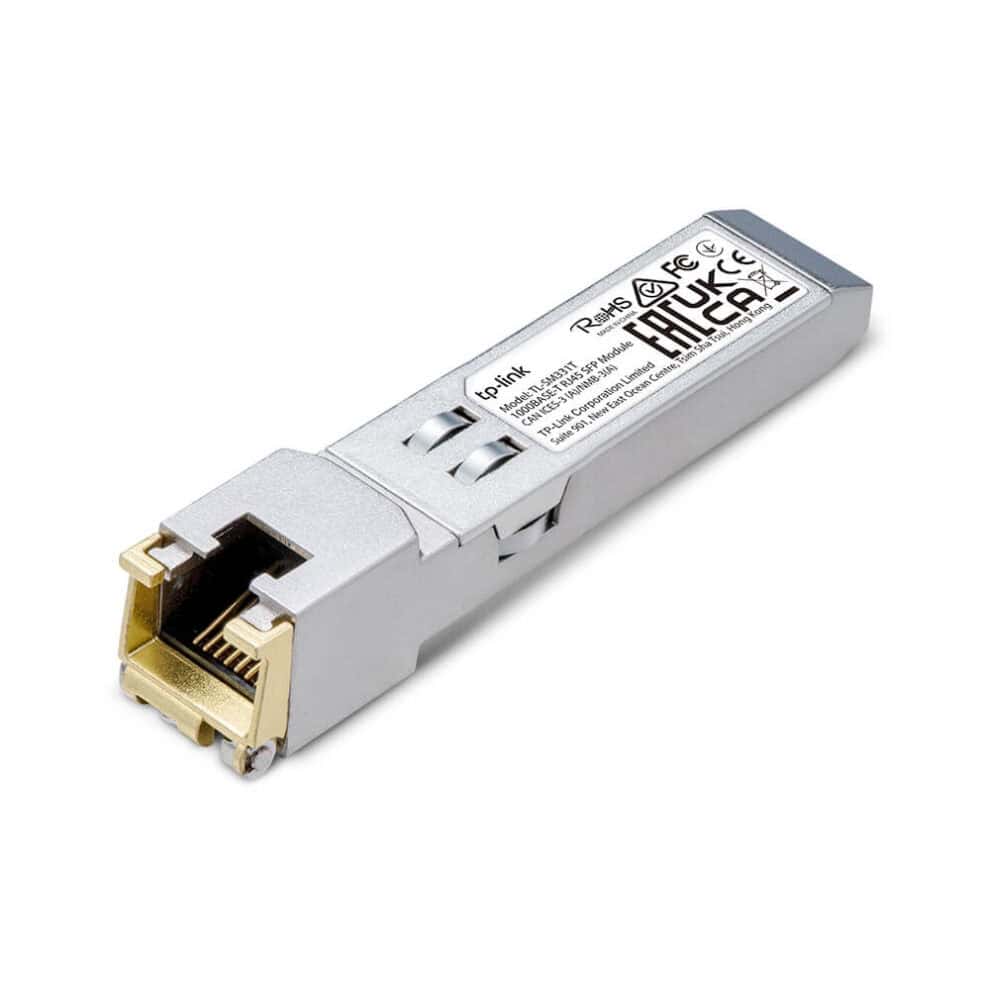

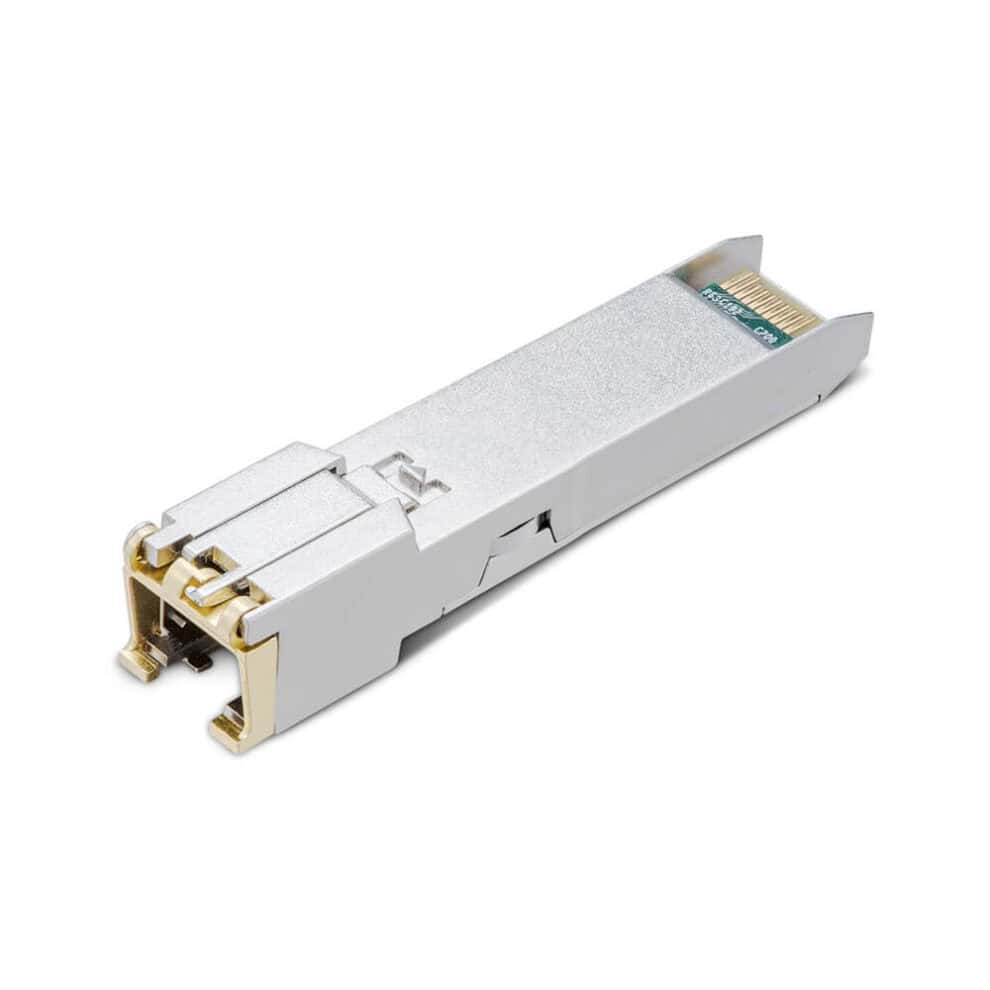

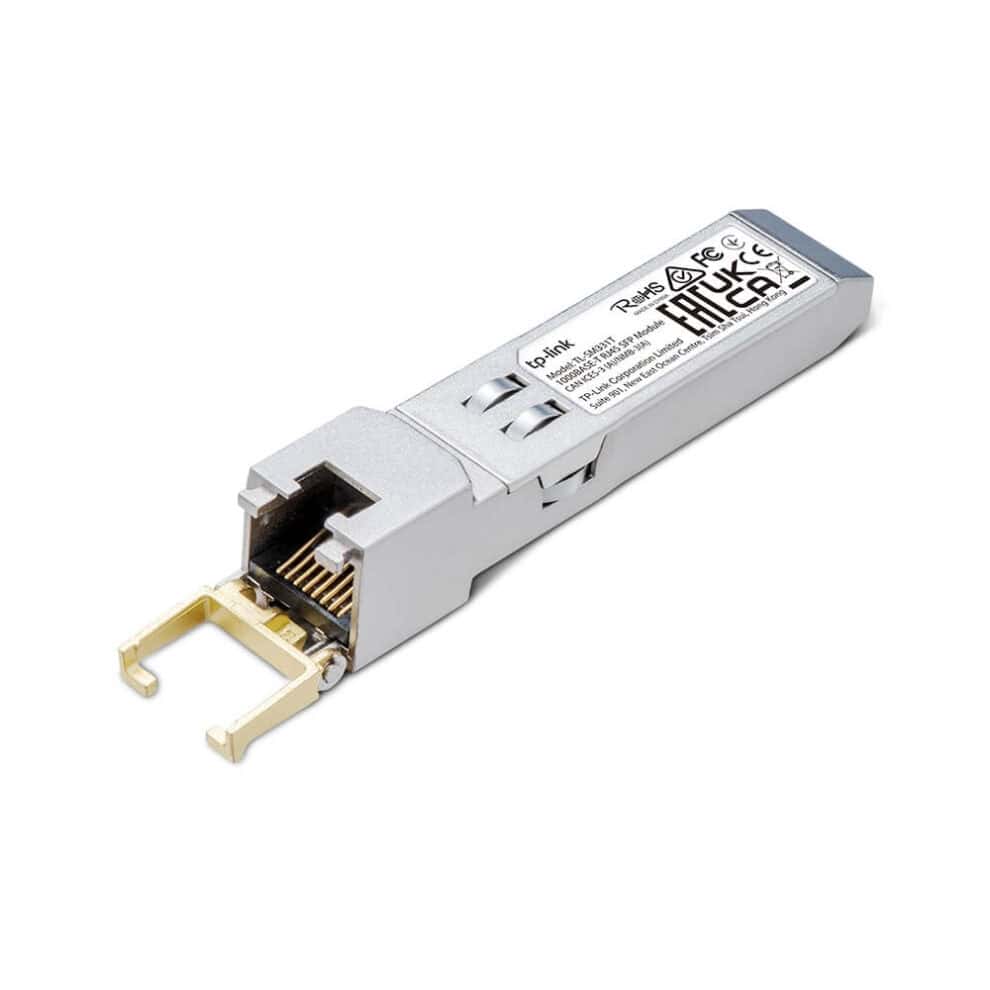

– 1000BASE-T RJ45 SFP Module TL-SM331T
– Installation Guide
HARDWARE FEATURES
Hot Swappable: Yes
MEDIA CONVERTER & MODULE
Dimensions (WDH): 2.70.50.5 in (67.413.7513.8 mm)
TRANSCEIVER
Standards and Protocols: IEEE 802.3-2002
Power Supply: 3.3V
Max. Cable Length: 100m* (Cat 5e or above)
Data Rate: 1.25 Gbps
Port Type: 1× 1000 Mbps RJ45 Port
Safety & Emission: FCC, CE
Environment:
– Operating Temperature: 0–70 ℃ (32–158 ℉)
– Storage Temperature: -40–85 ℃ (-40–185 ℉)
