- 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
- Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring..
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
HARDWARE FEATURES
Interface:
– 24× 10/100/1000Mbps RJ45 Ports
– 4× Gigabit SFP Slots
– 1× RJ45 Console Port
– 1× Micro-USB Console Port
Fan Quantity: 2

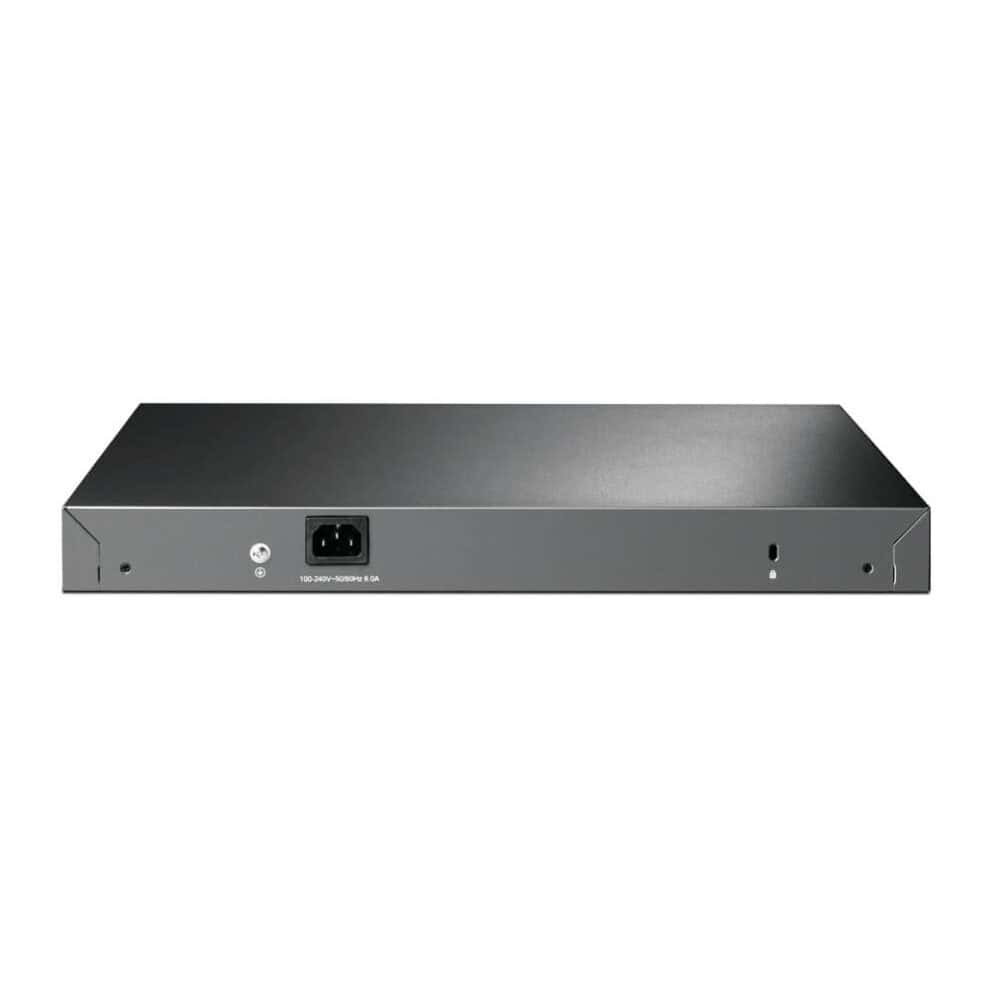

Power Supply: 100-240 V AC~50/60 Hz
PoE+ Ports(RJ45):
– Standard: 802.3at/af compliant
– PoE+ Ports: 24 Ports, up to 30 W per port
– ower Budget: 384 W
PoE Ports (RJ45):
– Standard: 802.3at/af compliant
– PoE+ Ports: 24 Ports, up to 30 W per port
– Power Budget: 384 W*

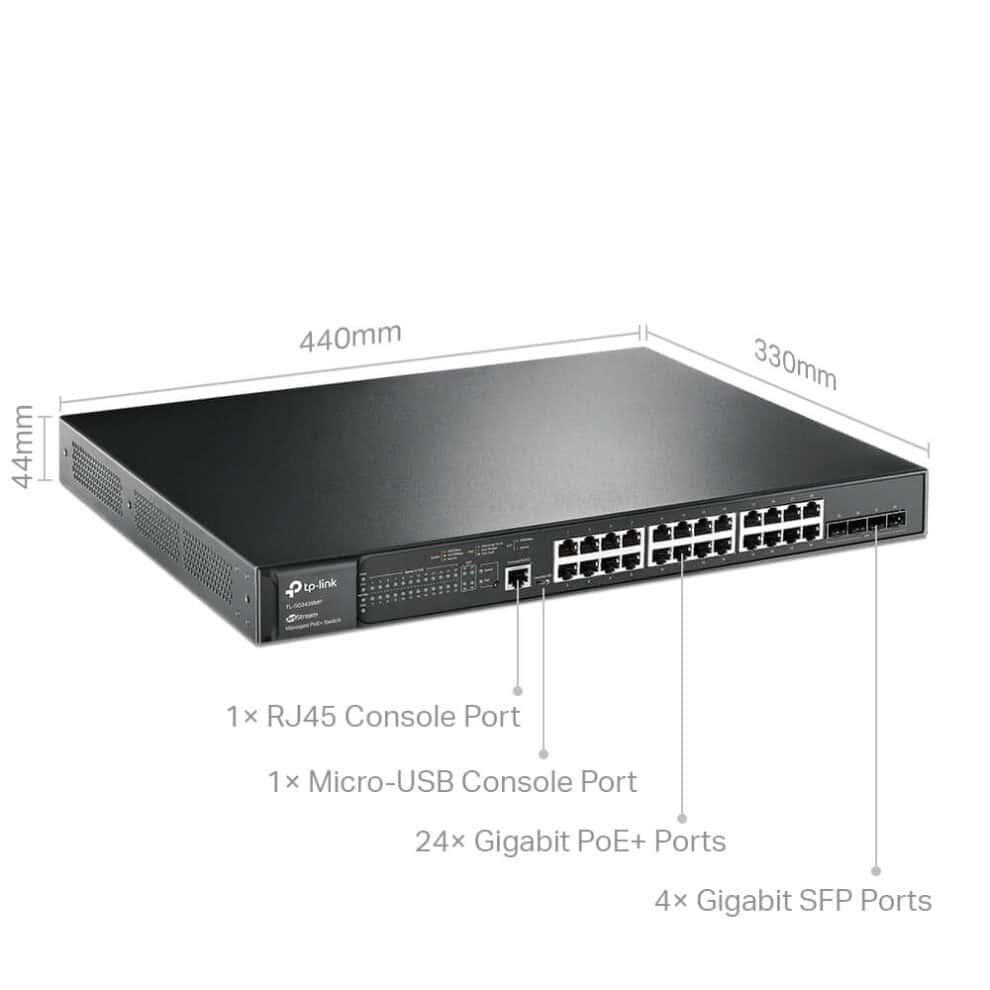

Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting: Rack Mountable
Max Power Consumption:
– V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected)
– V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected)
– V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected)
– V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected)
– V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation:
– V1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected); 105.78 BTU/h (110 V/60 Hz) (no PD connected)
– V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 117.38 BTU/hr (110 V/60 Hz) (no PD connected)
– V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected)
– V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
– V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
