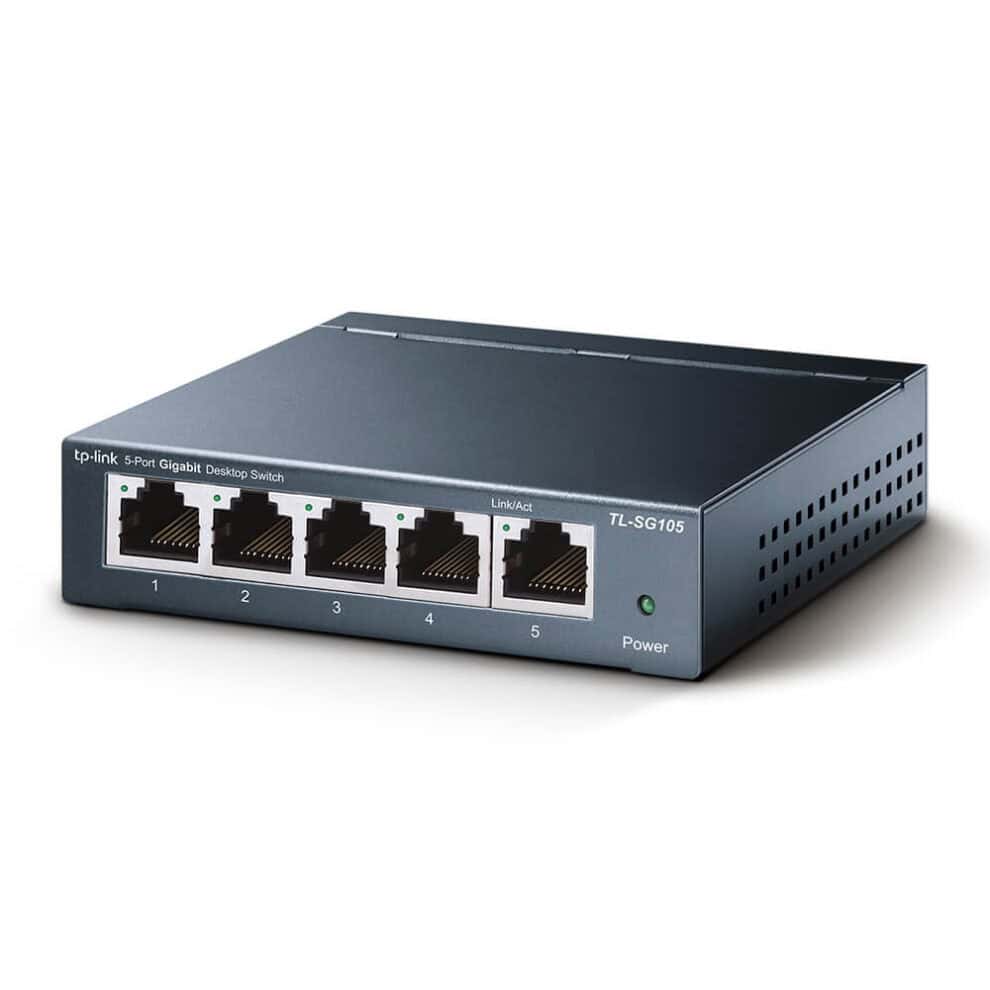

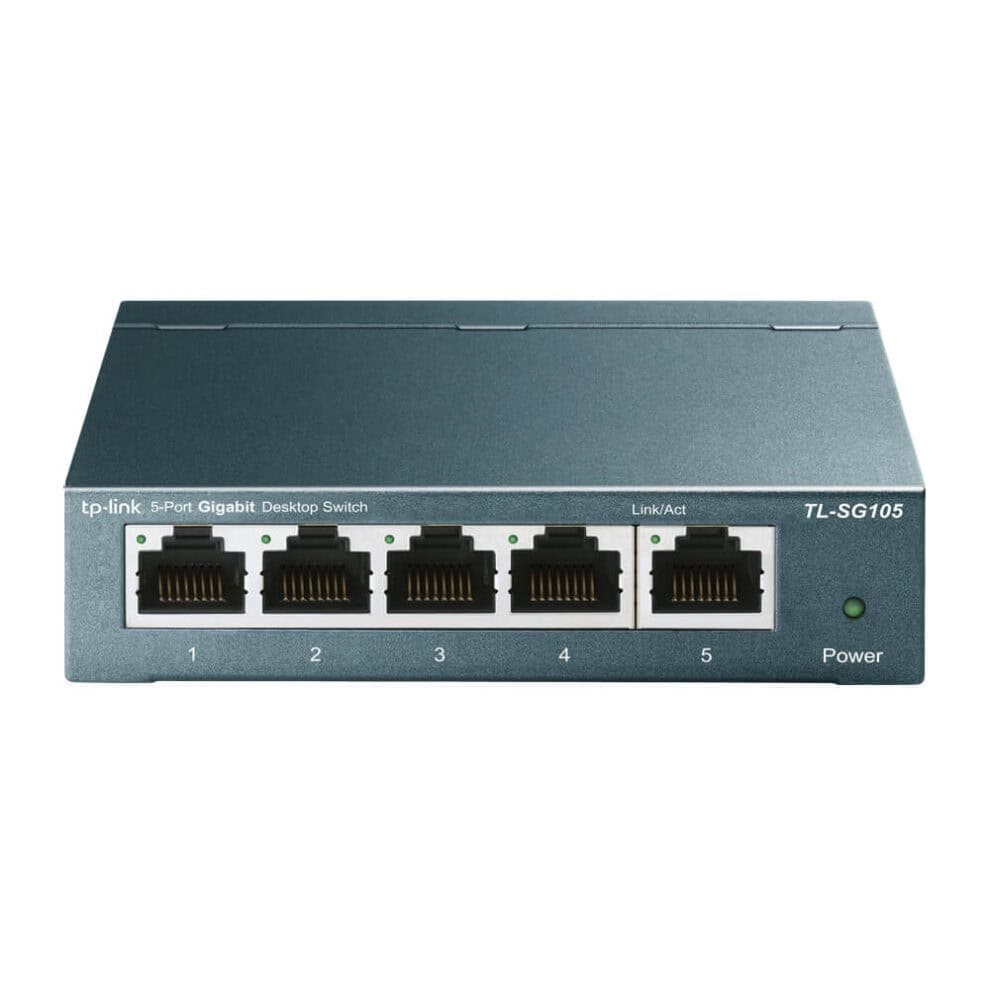

excerpt: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
wpid: 493610
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/08/TL-SG105UN6_1_large_1594122055766z.jpg"
---

- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Plug and play, no configuration needed
- Supports 802.1p/DSCP QoS and IGMP Snooping functions
- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

**HARDWARE FEATURES**
Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface: 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity: Fanless

External Power Supply: External Power Adapter (Output: 5 V DC / 0.6A)

LED Indicator: System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ): 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption: 3.0 W (220 V/ 50 Hz)

Max Heat Dissipation: 10.23 BTU/h

**PERFORMANCE**
Packet Forwarding Rate: 7.4 Mpps

MAC Address Table: 2K

Packet Buffer Memory: 1 Mb

Jumbo Frame: 16 KB

**SOFTWARE FEATURES**
Advanced Features:
– Green Technology
– 802.3X Flow Control
– 802.1P/DSCP QoS (for V2 and later version)
– IGMP Snooping
– Loop Prevention

Transfer Method: Store and Forward
