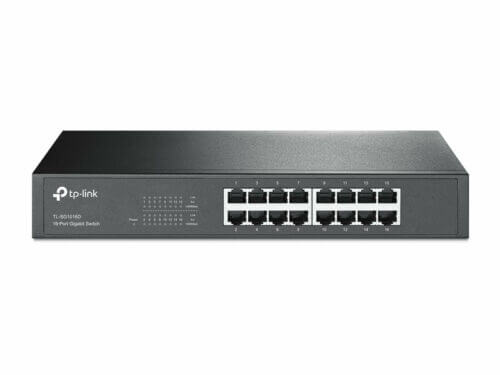

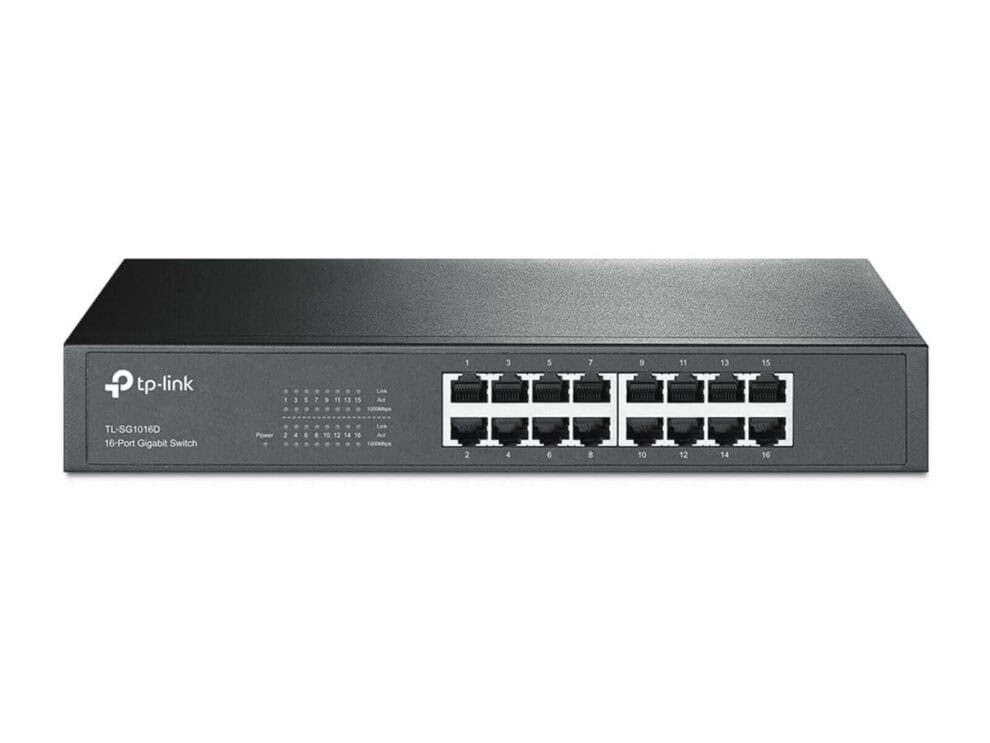

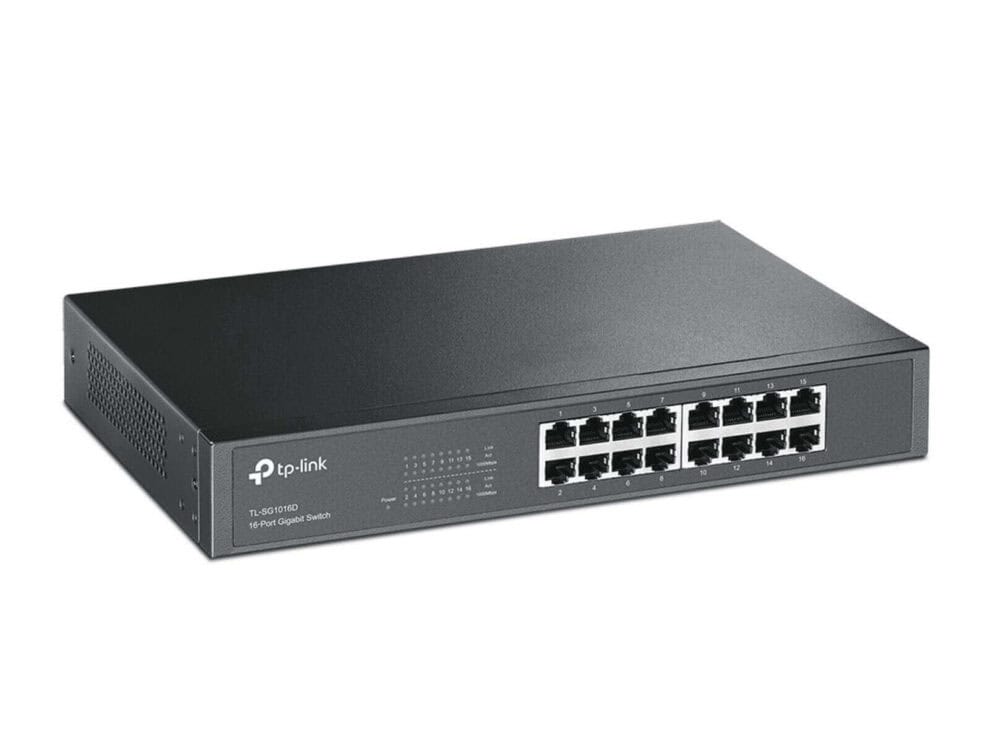

The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
- 16 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Isolation Mode: Ports 1-14
- Loop Prevention: Ports 1-16
- Plug & play design
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: No

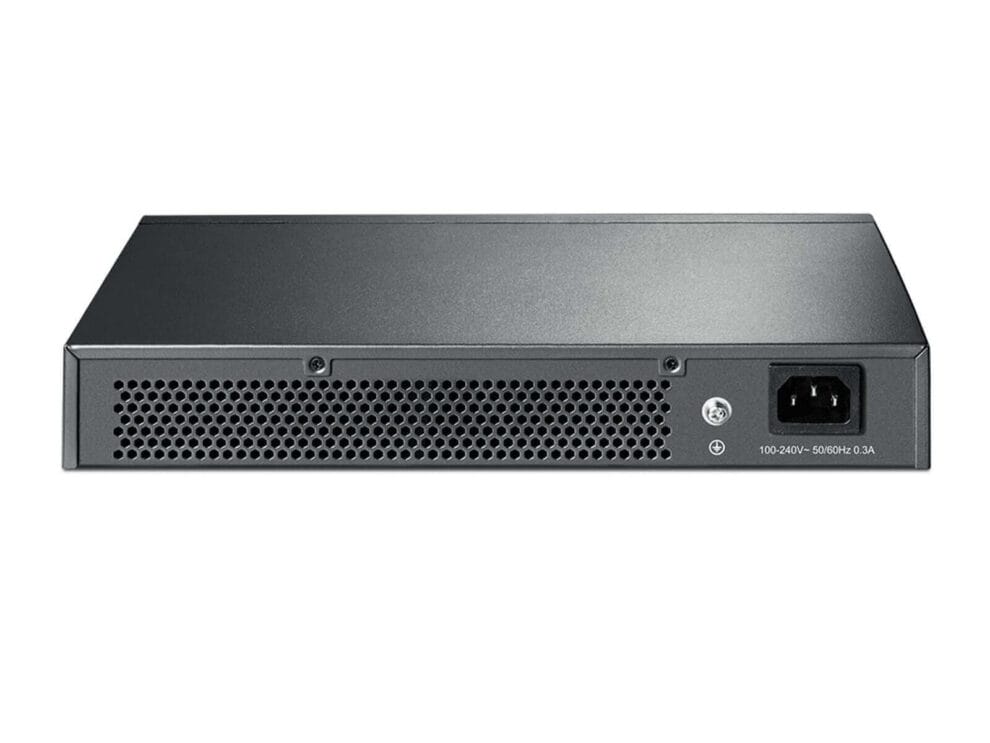

Power Supply: 100-240VAC, 50/60Hz
Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)
Max Power Consumption: 9.26W(220V/50Hz)
Max Heat Dissipation: 31.60BTU/h
