- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Innovative energy-efficient technology reduces power consumption by up to 75%*
- Supports PoE+ standard with total power budget of 126W and up to 30W per port
- Plug and play design, no configuration required *Actual data may vary in different usage environment.
HARDWARE FEATURES
Interface:
– 8 10/100/1000Mbps RJ45 Ports
– AUTO Negotiation/AUTO MDI/MDIX
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: 1
Physical Security Lock: No

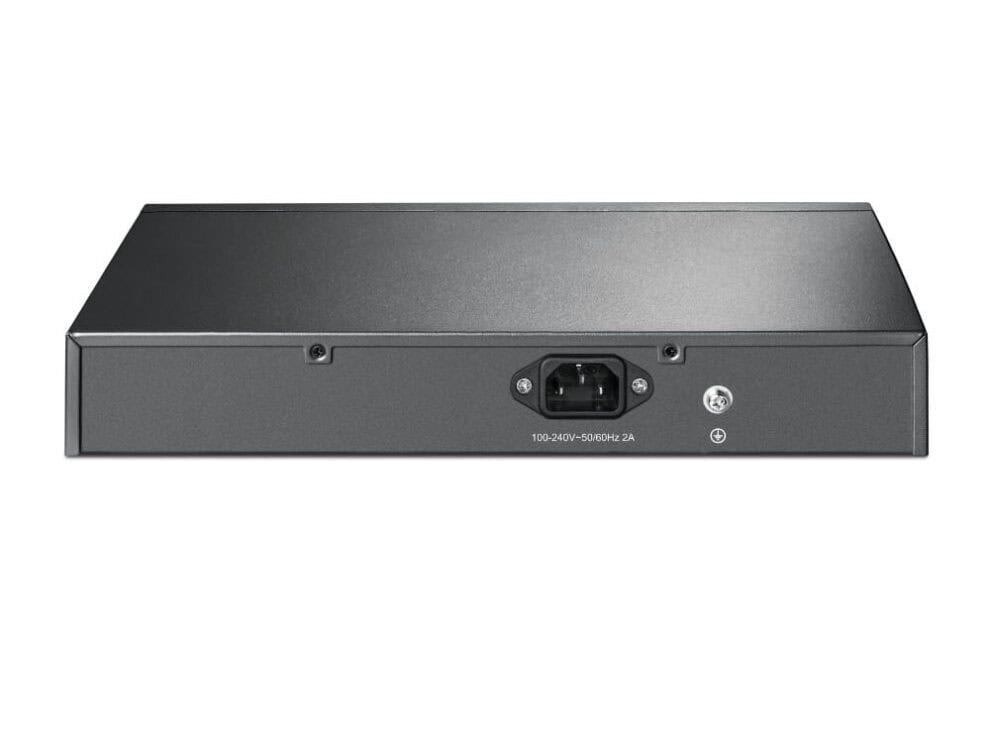

Power Supply: 100-240VAC, 50/60Hz
Packet Forwarding Rate: 11.904 Mpps
PoE+ Ports(RJ45):
– Standard: 802.3af/at compliant
– PoE+ Ports: 8 Ports
– Power Supply: 153W
Mac Address Table: 4K
Buffer Size: 1.5Mbits
Jumbo Frame: 16 KB
Switching Capacity: 16Gbps
Dimensions ( W x D x H ): 11.67.11.7 in. (29418044 mm)
Mounting: Desktop/Rack Mountable
Max Power Consumption:
– 8.57W(220V/50Hz. no PD connected)
– 173.65W(110V/60Hz. with 153W PD connected)
Max Heat Dissipation:
– 29.22BTU/h(no PD connected)
– 592.15BTU/h(with 153W PD connected)
