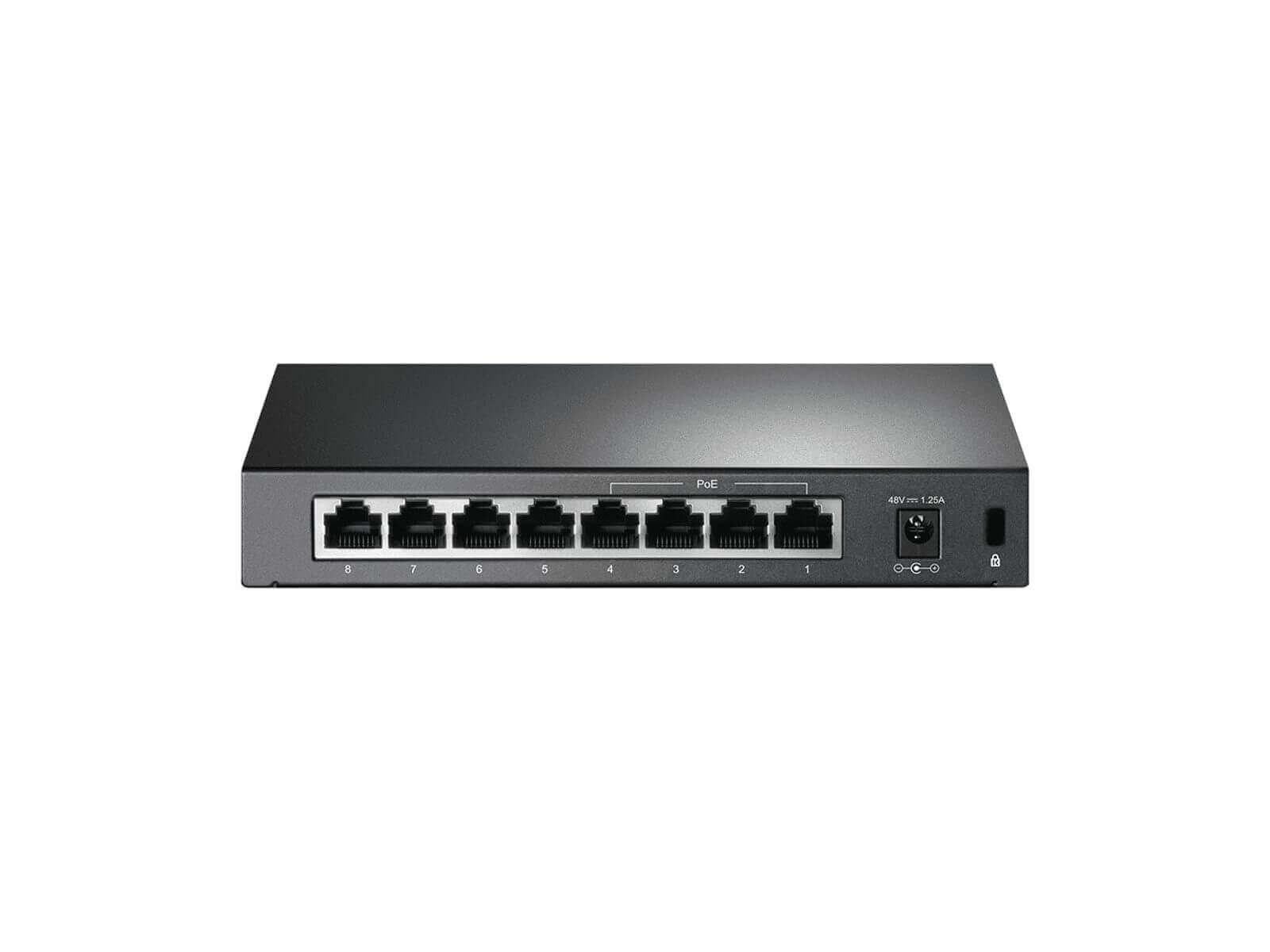

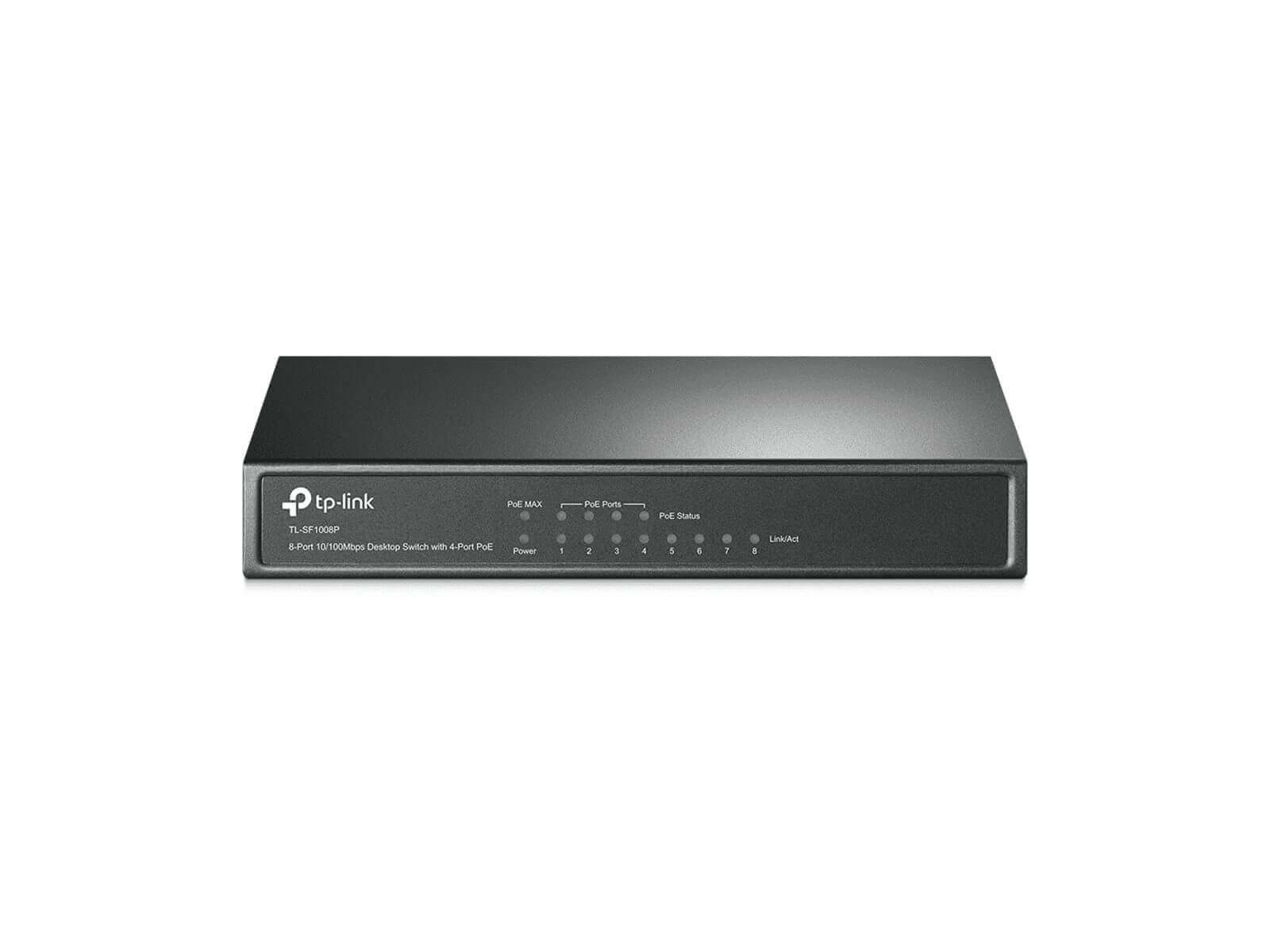

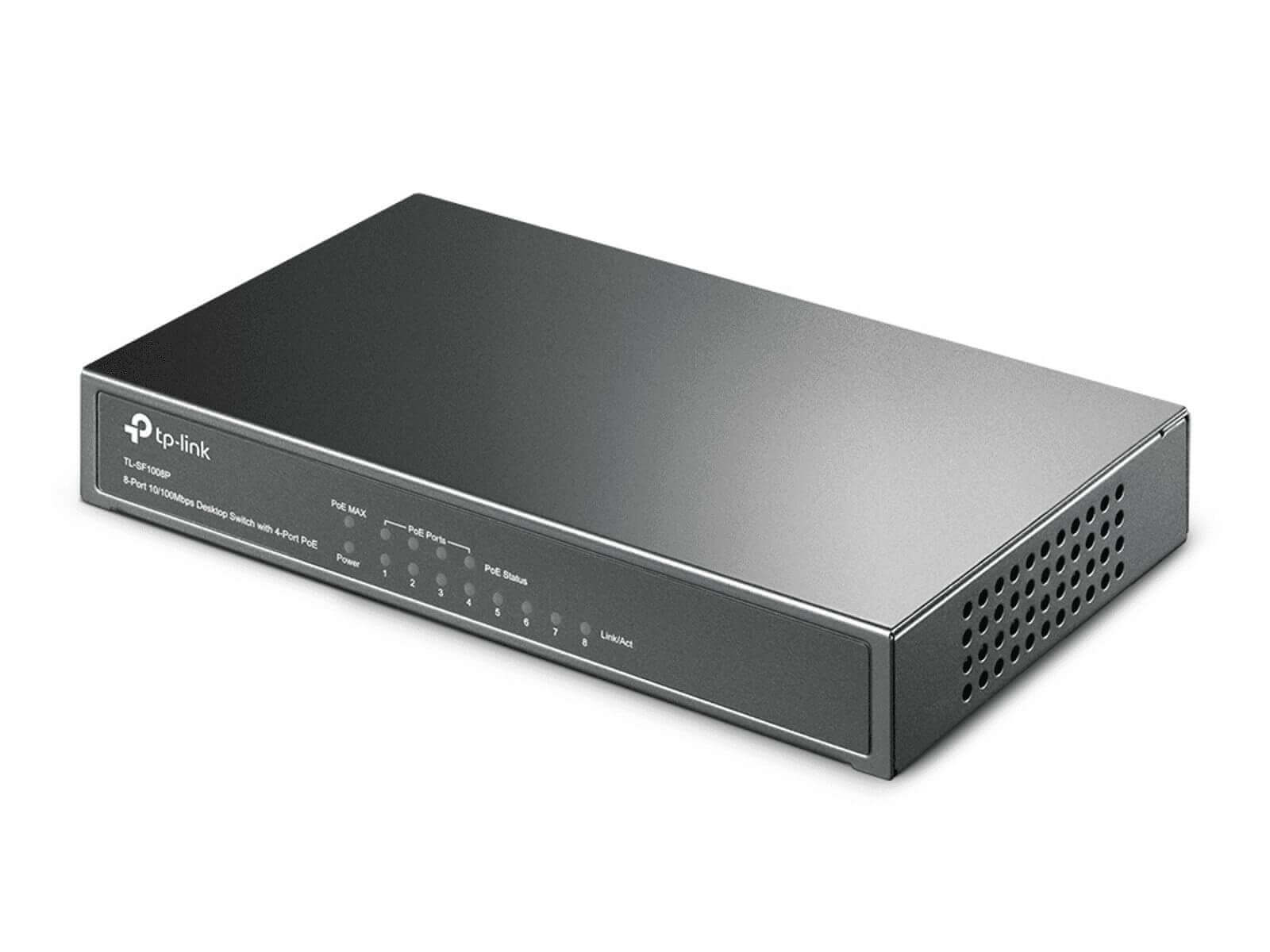

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
- 8× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 66 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
HARDWARE FEATURES
Interface:
– 8 10/100Mbps RJ45 Ports
– AUTO Negotiation/AUTO MDI/MDIX
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: No
External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
Packet Forwarding Rate: 1.1904 Mpps
PoE Ports (RJ45):
– Standard: 802.3 af compliant
– PoE Ports: Port1- Port4
– Power Supply: 57W
Backbound Bandwidth: 1.6Gbps
Mac Address Table: 2K
Jumbo Frame: 2 KB
Switching Capacity: 1.6 Gbps
Dimensions ( W x D x H ): 6.7*3.9*1.1 in. (171*98*27 mm)
Max Power Consumption:
– 2.66(220/50Hz. no PD connected)
– 65.92(220/50Hz. with 57W PD connected)
Max Heat Dissipation:
– 9.08BTU/h(no PD connected)
– 224.92BTU/h(with 57W PD connected)
