Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Powerful, integrated antennas provide stable wireless connections and better coverage
Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
HARDWARE FEATURES

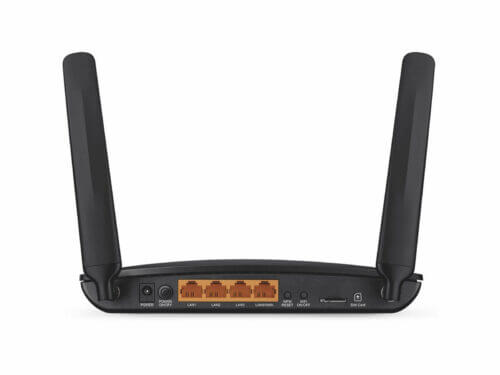

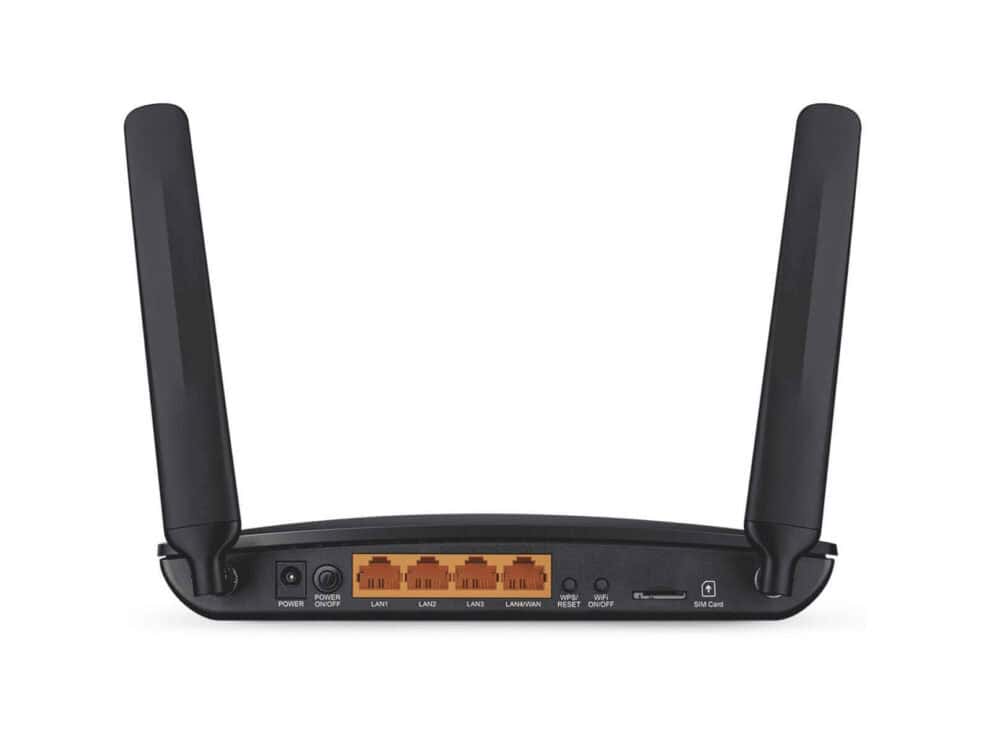

Interface: 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
Button: WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
External Power Supply: 12V/1A
Dimensions ( W x D x H ): 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna: V4/V2/V1: 2 Detachable 4G LTE Antennas
V3: 2 Internal 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
Reception Sensitivity: 5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm
Transmit Power: CE: <20dBm(2.4GHz), <23dBm(5GHz)
Wireless Functions: Enable/Disable Wireless Radio, WMM,
Wireless Statistics
WAN Failover: Yes
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type: 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500 MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
SOFTWARE FEATURES
Quality of Service: Bandwidth Control
Operating Modes: 3G/4G Router, Wireless Router
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management: Access Control, Local Management, Remote Management, reboot schedule
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN Pass-Through: PPTP VPN, IPSec VPN , OpenVPN
VPN: PPTP VPN, IPSec VPN , OpenVPN
Access Control: Parental Control, Local Management Control
Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
IPSec VPN: Supports up to 10 IPSec VPN tunnels
VPN Server: PPTP VPN, OpenVPN
