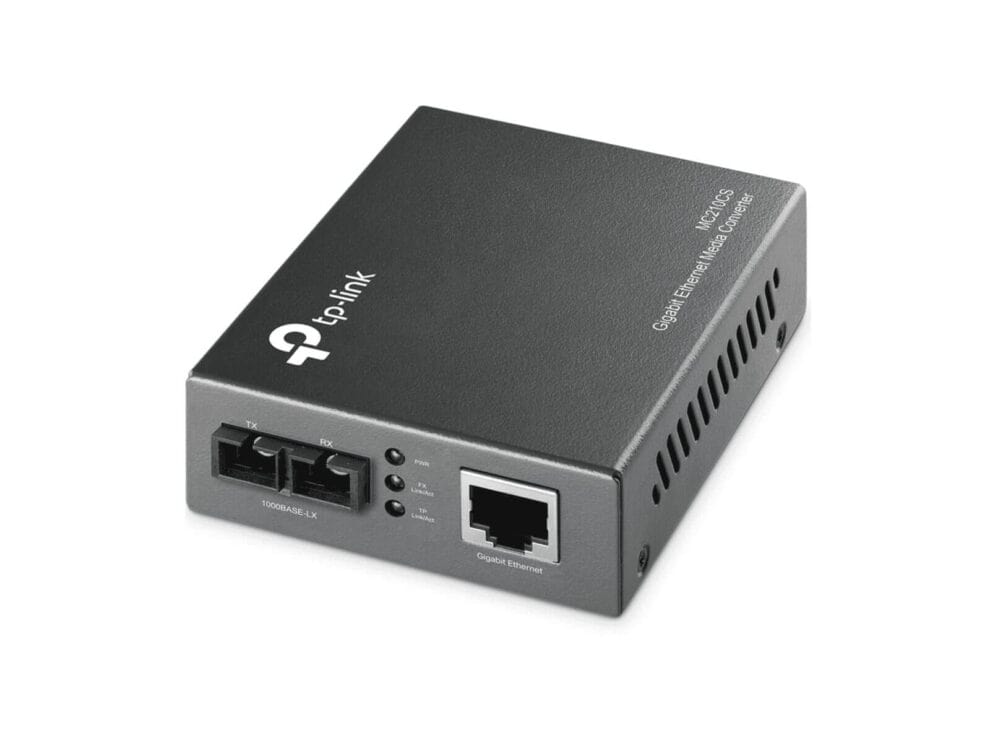

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
MEDIA CONVERTER & MODULE
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 15km
Ports: 1 1000M SC/UPC port
1 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length: 1310nm
Network Media 1000BASE-LX: Single-mode Fiber
Network Media 1000BASE-T: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators: PWR, Link/Act
Dimensions (W*D*H): 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply: External Power Adapter
Max Power Consumption: 1.8W
Safety & Emission: FCC, CE, RoHS
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
