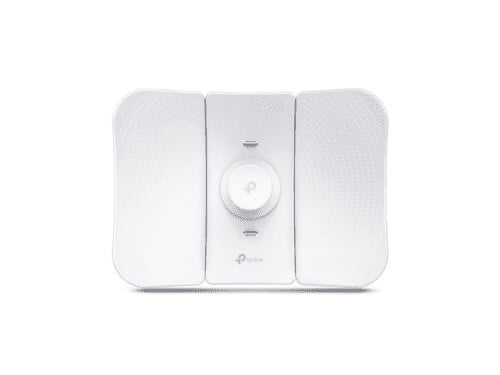

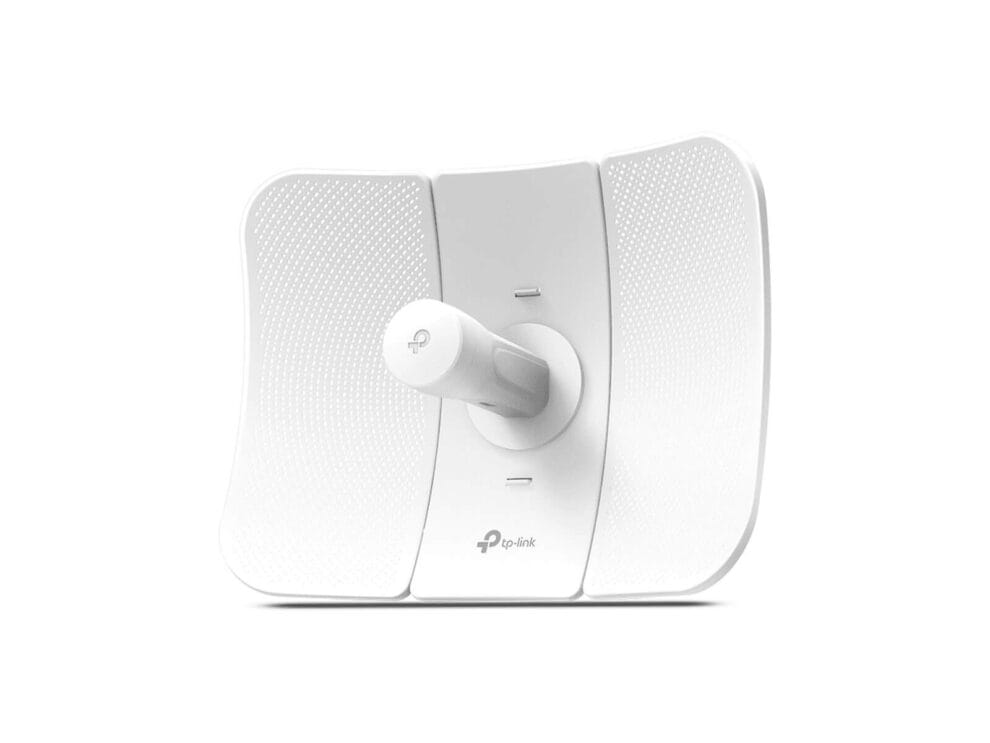

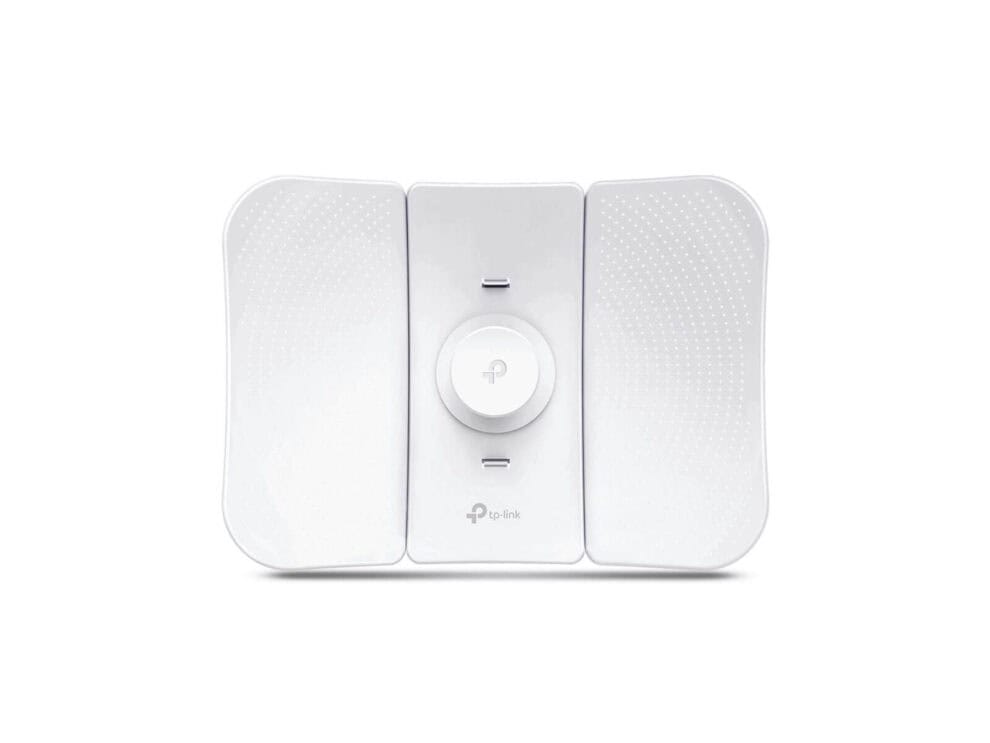

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
HARDWARE FEATURES
Processor: Qualcomm 750MHz CPU, MIPS 74Kc
Memory: 128 MB DDR2 RAM, 16 MB Flash
Interface: 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Dimensions ( W x D x H ): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain: 23 dBi
Antenna Beamwidth: 9° (Azimuth)/7° (Elevation)
Protection: 15 KV ESD Protection
6 KV Lightning Protection
Enclosure: Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/n/ac
Wireless Speeds: Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency: 5.15–5.85 GHz
Transmit Power: Max. 27 dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
Network Configuration: WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations: Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP
Management: Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools: Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
System-level Optimizations: Optimized IGMP Snooping / Proxy for multicast applications
POE ADAPTER FEATURES
Dimensions(W x D x H): 85.8×43.9×29.7 mm
Interfaces: 1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button: Remote Reset Button
Power Status LEDs: Green
Input: 100-240VAC, 50/60Hz
Output: 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency: >84.29%
Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
