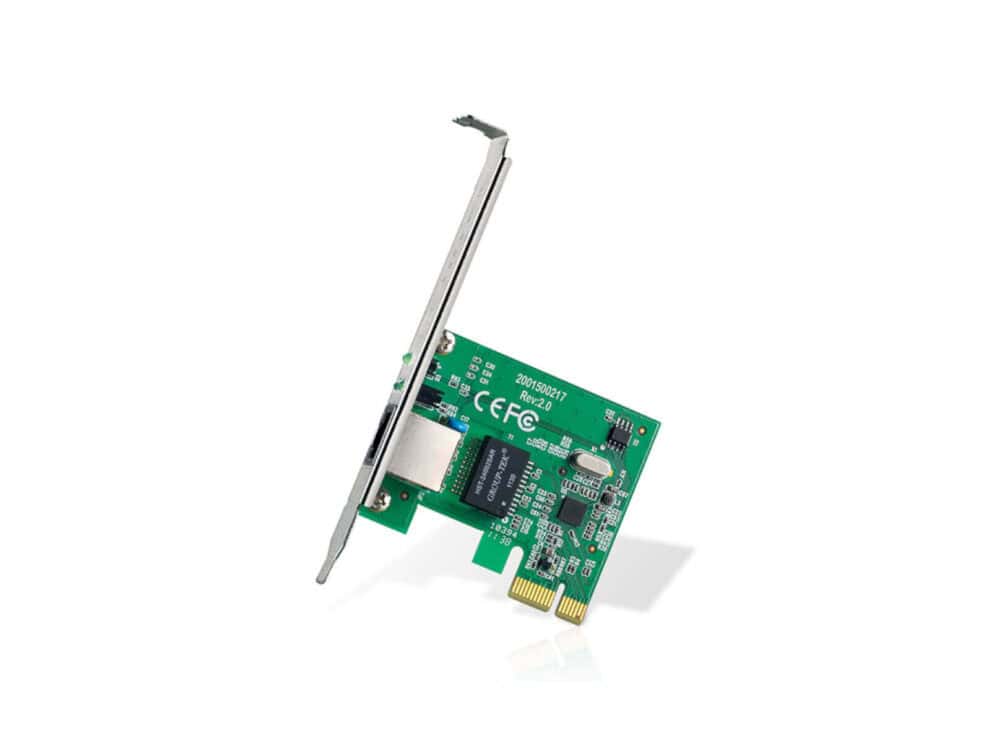

- – 10/100/1000Mbps PCIe Adapter
- – 32-bit PCIe interface, saving the finite chassis space
- – Wake-on-LAN, convenient to manage over LAN
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface:
– 32-bit PCI Express
– 1 10/100/1000Mbps RJ45 port
Network Media :
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED: Status
Wireless Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates:
– 10/100/1000Mbps for Half-Duplex mode
– 20/200/2000Mbps for Full-Duplex mode
LED Indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Dimensions: 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
