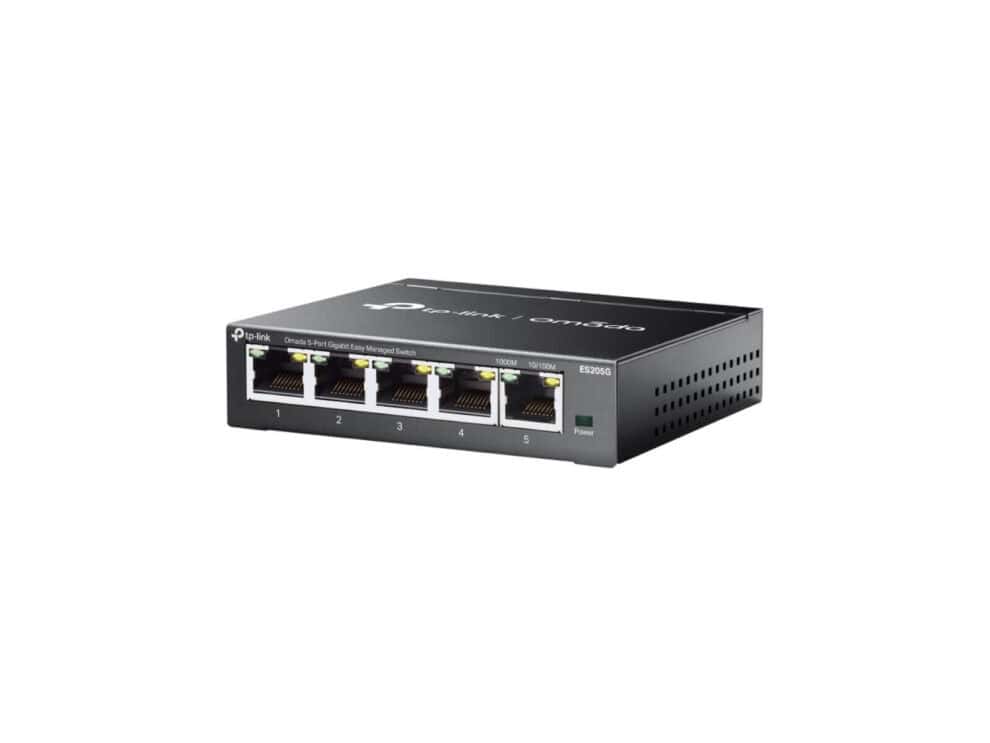

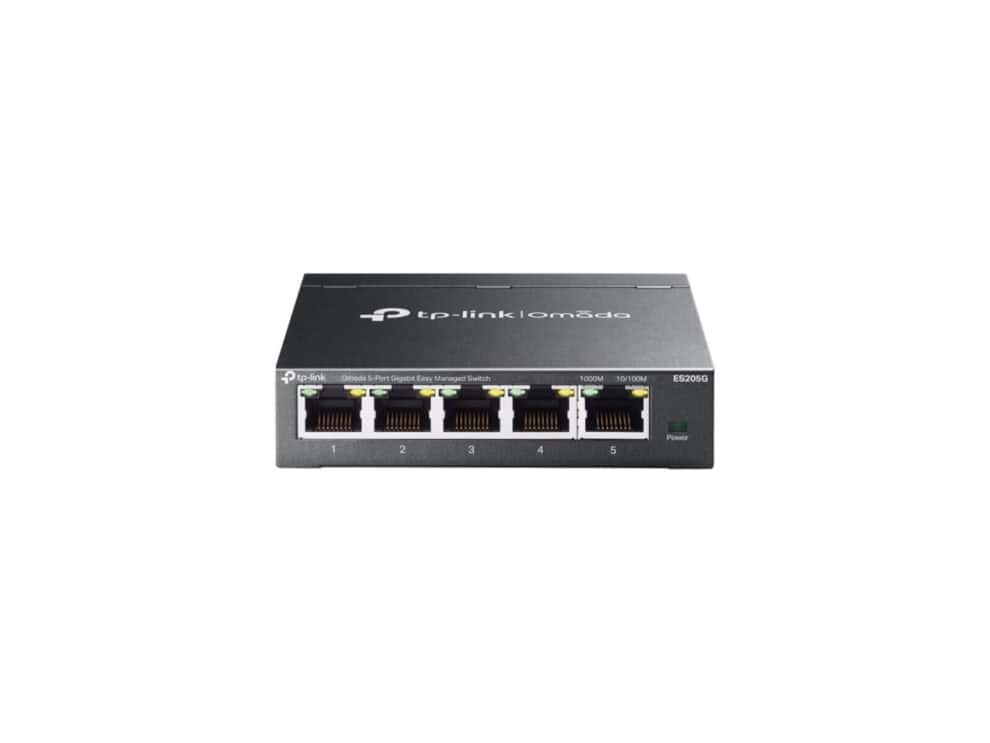

title: TP-Link Omada 5-Port Gigabit Easy Managed Switch
date: 2026-01-28T08:28:49Z
modified: 2026-05-21T08:01:32Z
permalink: "https://tech.co.za/product/tp-link-omada-5-port-gigabit-easy-managed-switch/"
type: product
status: publish
excerpt: "5× 10/100/1000Mbps RJ45 ports\\nEasy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features"
wpid: 568065
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2026/01/ES205G-a.jpg"
---

- 5× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

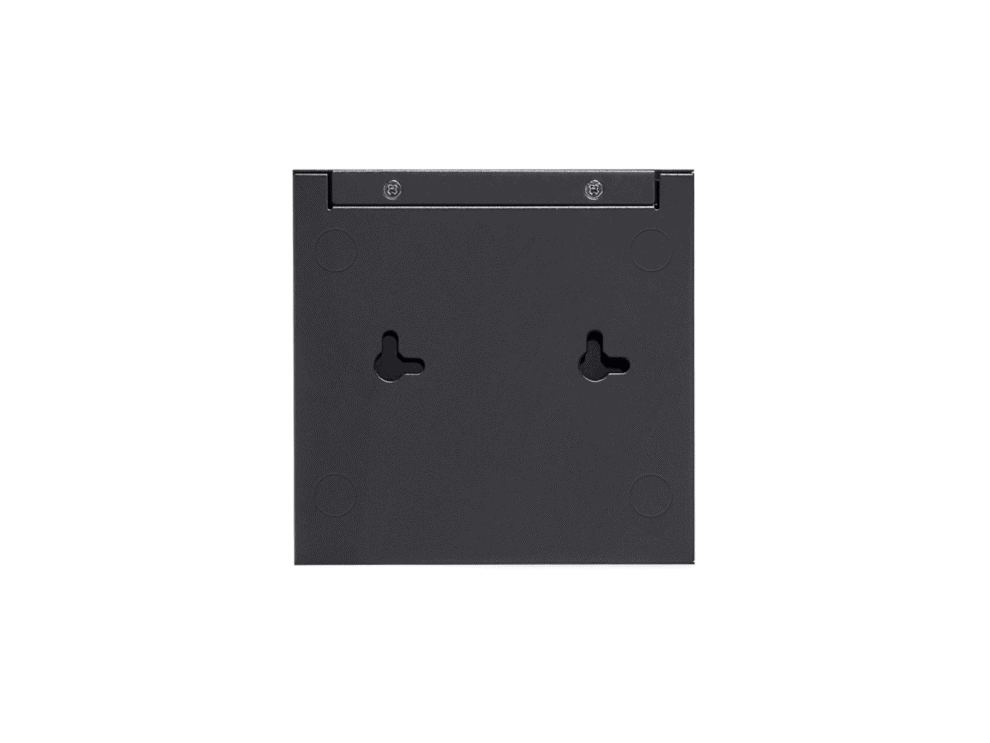

- Durable metal casing and desktop/wall mounting design



| HARDWARE FEATURES |  |
| --- | --- |
| Interface | • 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | External DC Power Adapter (Output: 5 VDC/ 0.6 A) |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Surge Protection | ±6kV |



| PERFORMANCE |  |
| --- | --- |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer Memory | 4 Mbits |
| Jumbo Frame | 15 KB |
