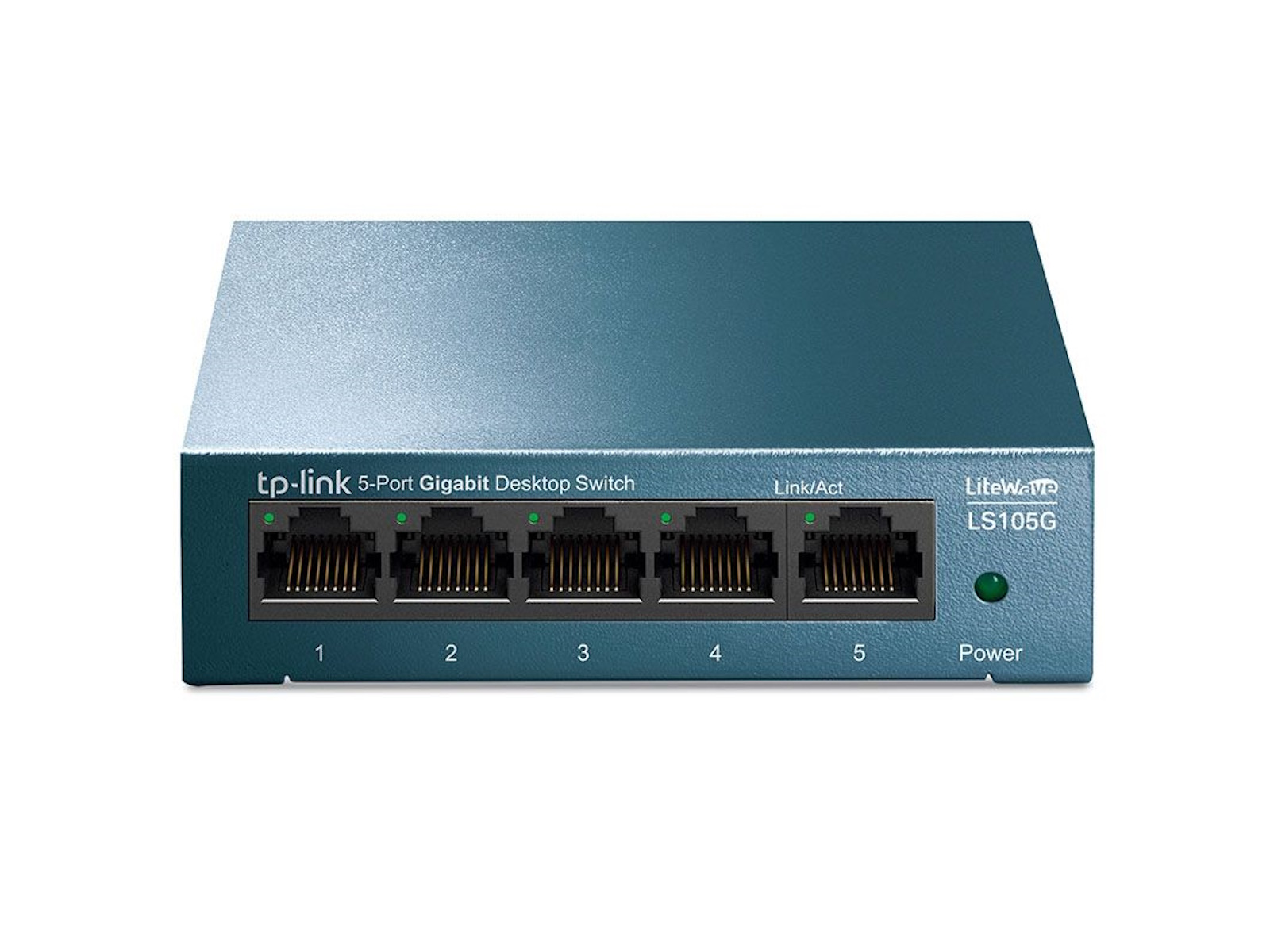

title: TP-Link LS105G 5-Port Desktop Switch
date: 2024-09-02T20:16:49Z
modified: 2026-05-19T07:03:04Z
permalink: "https://tech.co.za/product/tp-link-ls105g-5-port-desktop-switch/"
type: product
status: publish
excerpt: "- 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX\\n- IEEE 802.3X flow control provides reliable data transfer\\n- Steel housing, desktop or wall-mounting design\\n- Support 802.1p/DSCP QoS function\\n- Plug and play, no configuration needed"
wpid: 501287
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/switch-12.jpg"
---

**Management features**
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

**Ports & interfaces**
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Power connector: DC-in jack

**Network**
Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes

**Data transmission**
Routing/switching capacity: 10 Gbit/s
Forwarding rate: 7,4 Mpps
MAC address table: 2000 entries
Jumbo frames support: Yes
Jumbo frames: 16000
Packet buffer memory: 1 MB

**Design**
Rack mounting: No
Housing material: Metal
LED indicators: Activity, LAN, Power
Wall mountable: Yes

**Power**
Power source: DC
Power supply included: Yes
Input operating current: 0.6 A
Input voltage: 5 V
Power consumption (max): 2,776 W
