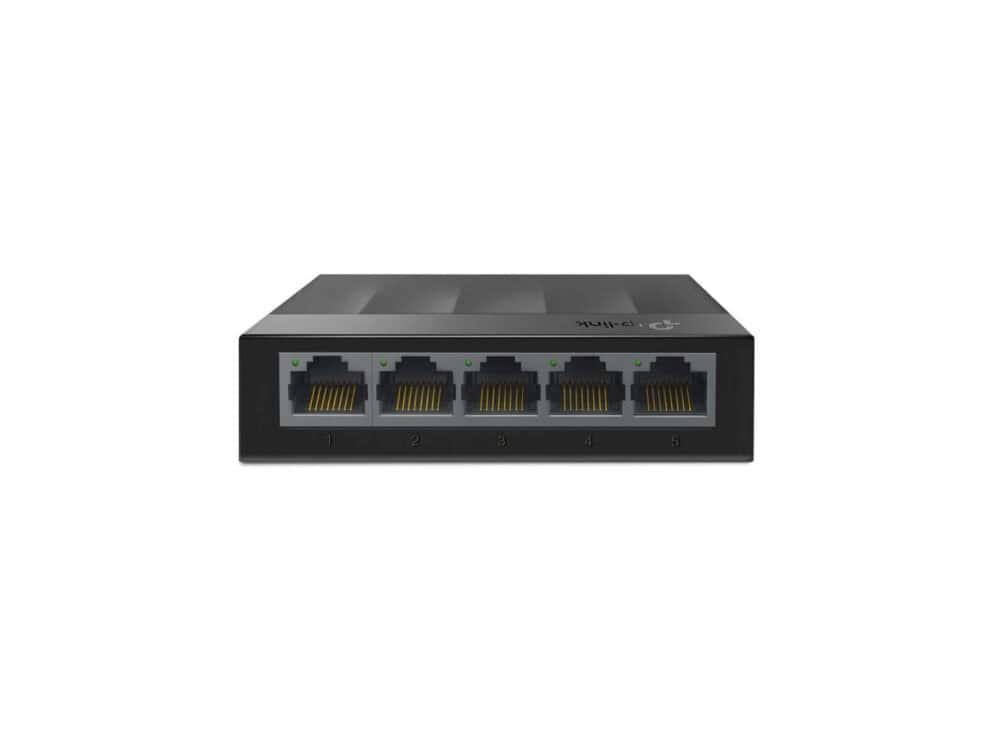

title: TP-Link LS1005G 5-Port Unmanaged Gigabit Ethernet Switch
date: 2023-11-27T16:48:35Z
modified: 2026-05-22T03:01:51Z
permalink: "https://tech.co.za/product/tp-link-ls1005g-5-port-unmanaged-gigabit-ethernet-switch/"
type: product
status: publish
excerpt: TP-LINK TP-LINK 5 PORT UNMANAGED SWITCH - 5X 1GBE PORTS DESKTOP FORM FACTOR
wpid: 482324
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/08/LS1005Ga.jpg"
---

- – 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
- – Green Ethernet technology saves power
- – IEEE 802.3X flow control provides reliable data transfer
- – Plastic casing, desktop or wall-mounting design
- – Plug and play, no configuration needed
- – Fanless design ensures quiet operation

**HARDWARE FEATURES**
Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface: 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H ): 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
Max Power Consumption: 3.7W
Max Heat Dissipation: 12.617 BTU/h

**PERFORMANCE**
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.4 Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1.5 Mb
Jumbo Frame: 16 KB
