title: TP-Link LS1005 5-Port 10/100Mbps Desktop Switch
date: 2024-09-05T18:37:56Z
modified: 2026-05-13T13:01:40Z
permalink: "https://tech.co.za/product/tp-link-ls1005-5-port-10-100mbps-desktop-switch/"
type: product
status: publish
excerpt: 5× 10/100Mbps Auto-Negotiation RJ45 ports
wpid: 502549
product_brand:
  - TP-Link
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/LS1005_01_large_1563262851927i.jpg"

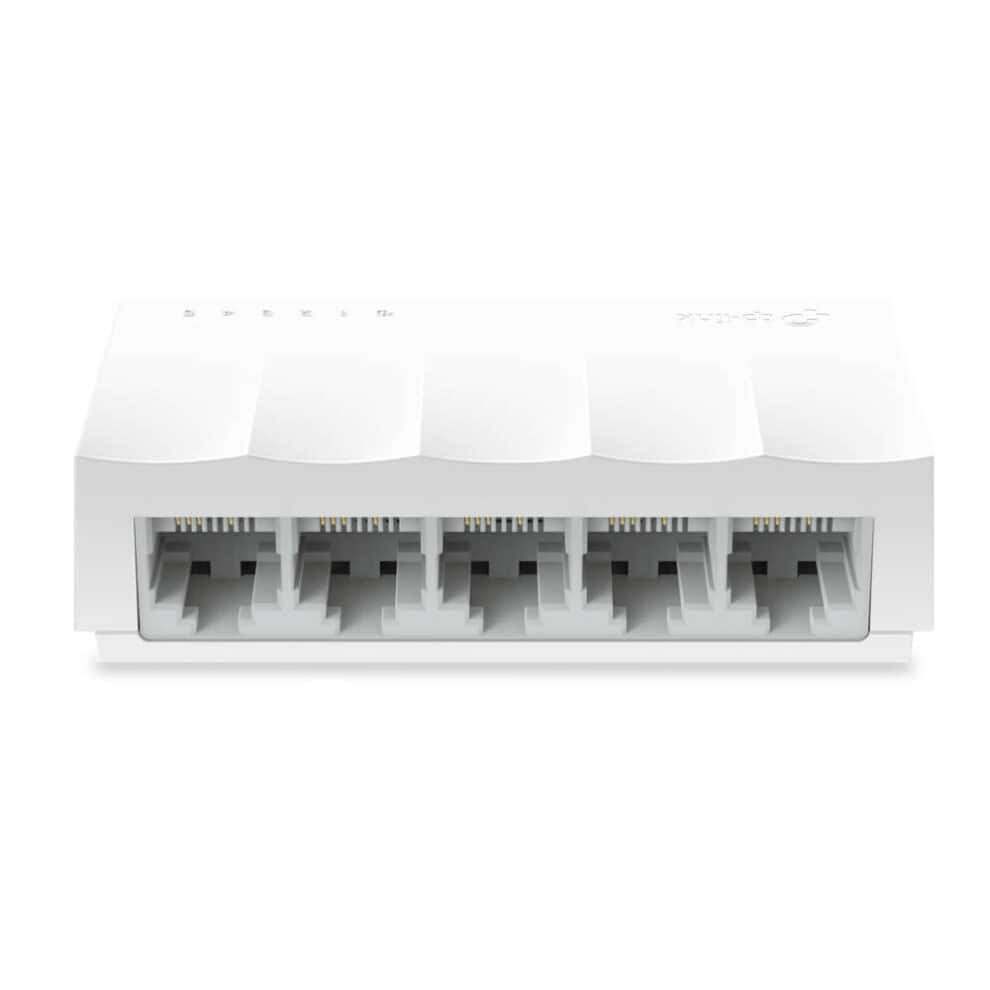

featured_image_alt: White Ethernet network switch with five ports
---

- 5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing and desktop design
- Plug and play, no configuration required
- Fanless design ensures quiet operation

**HARDWARE FEATURES**
Standards and Protocols: IEEE 802.3i/802.3u/802.3x

Interface: 5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity: Fanless

External Power Supply: External Power Adapter (Output: 5VDC/0.6A)

Dimensions ( W x D x H ): 3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm)

Max Power Consumption: 1.65W

Max Heat Dissipation: 5.627 Btu/hr

**SOFTWARE FEATURES**
Advanced Features:
– Green Technology
– 802.3X Flow Control
– Back Pressure

Transfer Method: Store and Forward
