- 4× 10 Gbps SFP+ slots
- 24× Gigabit 802.3af/at PoE+ ports
- 384 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
HARDWARE FEATURES

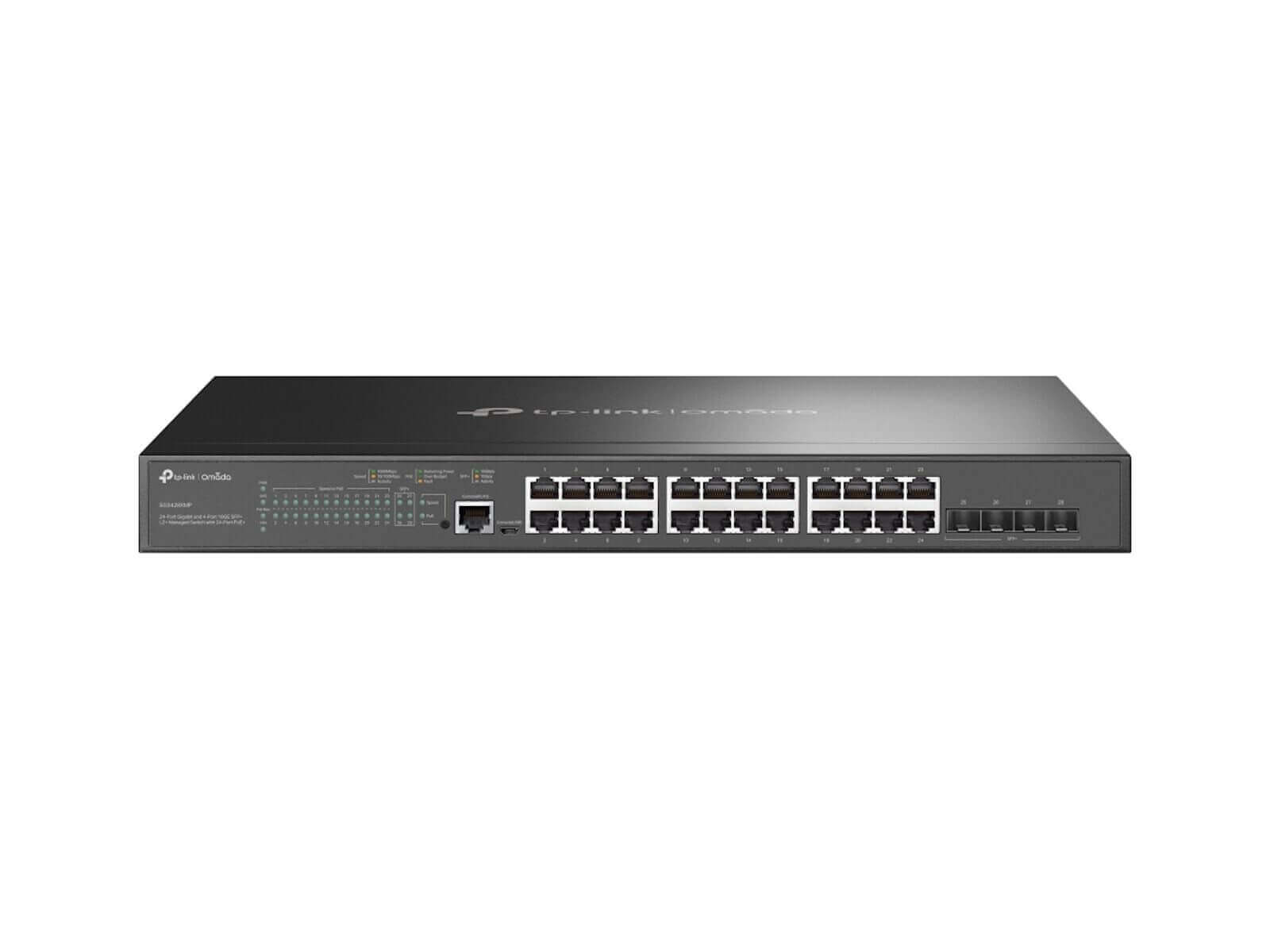

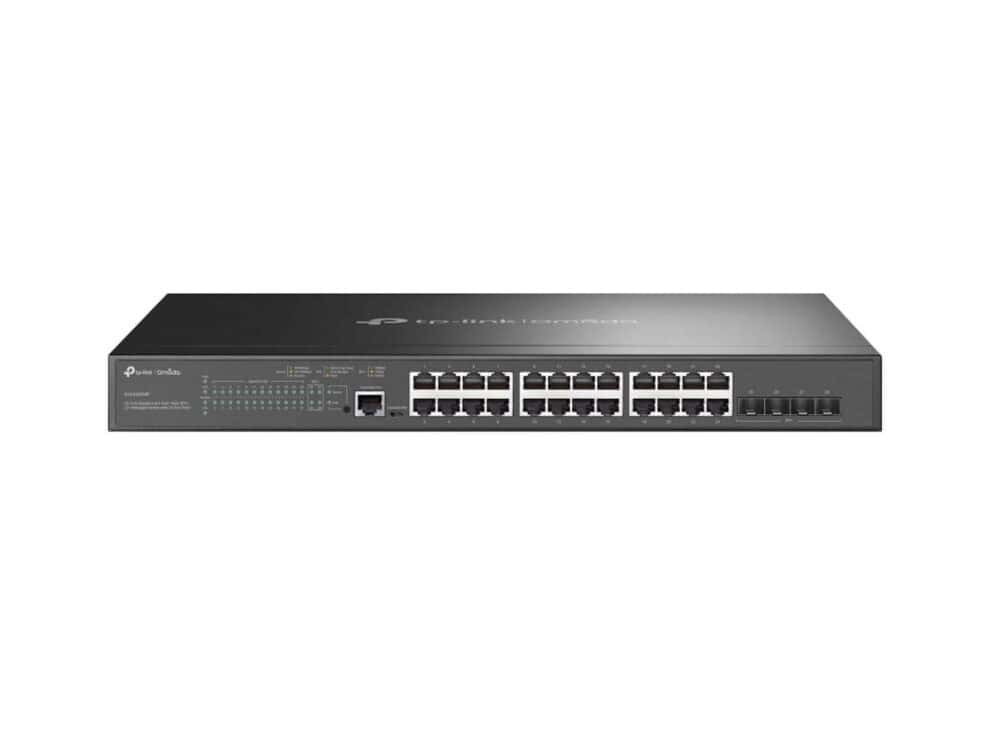

Interface:
– 24× 10/100/1000 Mbps RJ45 Ports
– 4× 10G SFP+ Slots
– 1× RJ45 Console Port
– 1× Micro-USB Console Port
Fan Quantity: 2

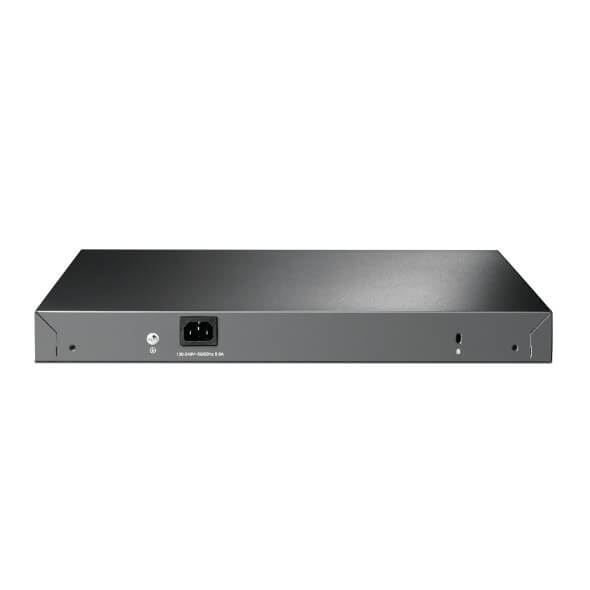

Power Supply: 100-240 V AC~50/60 Hz
PoE+ Ports(RJ45):
– Standard: 802.3at/af compliant
– PoE+ Ports: 24 Ports, up to 30 W per port
– Power Budget: 384 W
Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting: Rack Mountable
Max Power Consumption:
– V1: 465.8 W (110V/60Hz) ( with 384 W PD device connected); 34.4 W (110V/60Hz) ( no PD device connected)
– V2: 455.5 W (110V/60Hz) ( with 384 W PD connected)
Max Heat Dissipation:
– V1: 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected); 117.38 BTU/h (110 V/60 Hz) (no PD device connected)
– V2: 1554.39 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
PERFORMANCE
Switching Capacity: 128 Gbps
Packet Forwarding Rate: 95.23 Mpps
MAC Address Table: 16 K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
