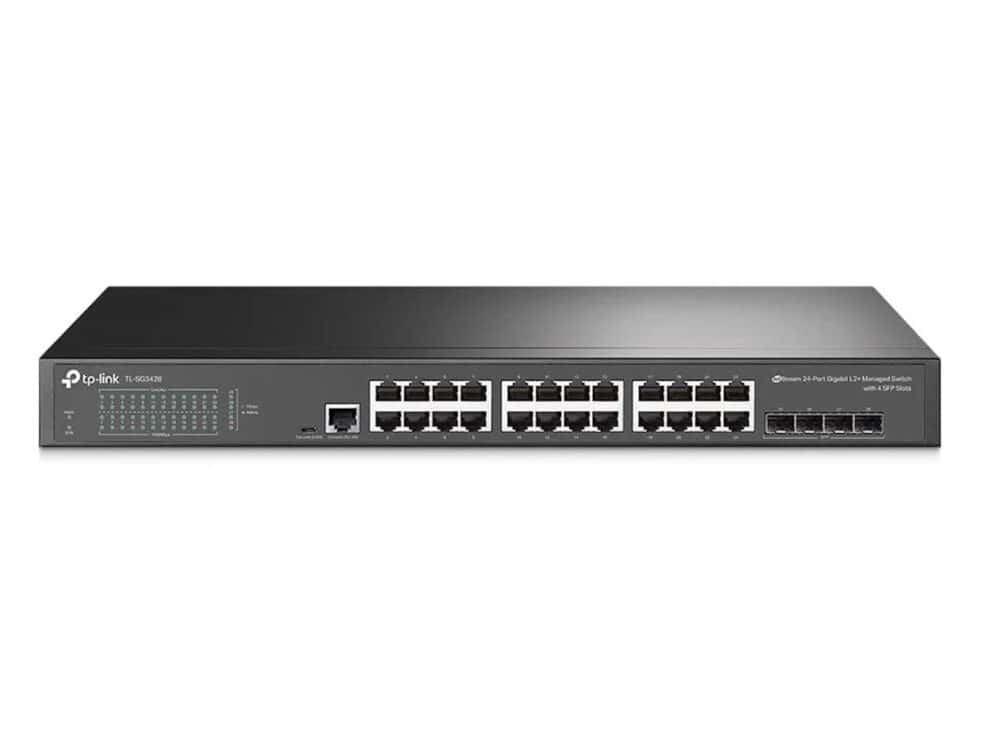

- Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
HARDWARE FEATURES
Interface:
– 24× 10/100/1000 Mbps RJ45 Ports
– 4× Gigabit SFP Slots
– 1× RJ45 Console Port
– 1× Micro-USB Console Port
Fan Quantity: Fanless
Power Supply: 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting: Rack Mountable
Max Power Consumption:
– V1: 19.22 W (110 V/60 Hz)
– V2: 19.9 W (220 V/50 Hz)
Max Heat Dissipation:
– V1: 65.58 BTU/hr (110 V/60 Hz)
– V2: 67.73 BTU/h (220 V/50 Hz)
