- Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
- One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN, 16× L2TP, and 16× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering:
– WEB Group Filtering§
– URL Filtering
– Web Security§
ARP Inspection:
– Sending GARP Packets§
– ARP Scanning§
– IP-MAC Binding§
Attack Defense:
– TCP/UDP/ICMP Flood Defense
– Block TCP Scan (Stealth FIN/Xmas/Null)
– Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols:
– IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
– TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

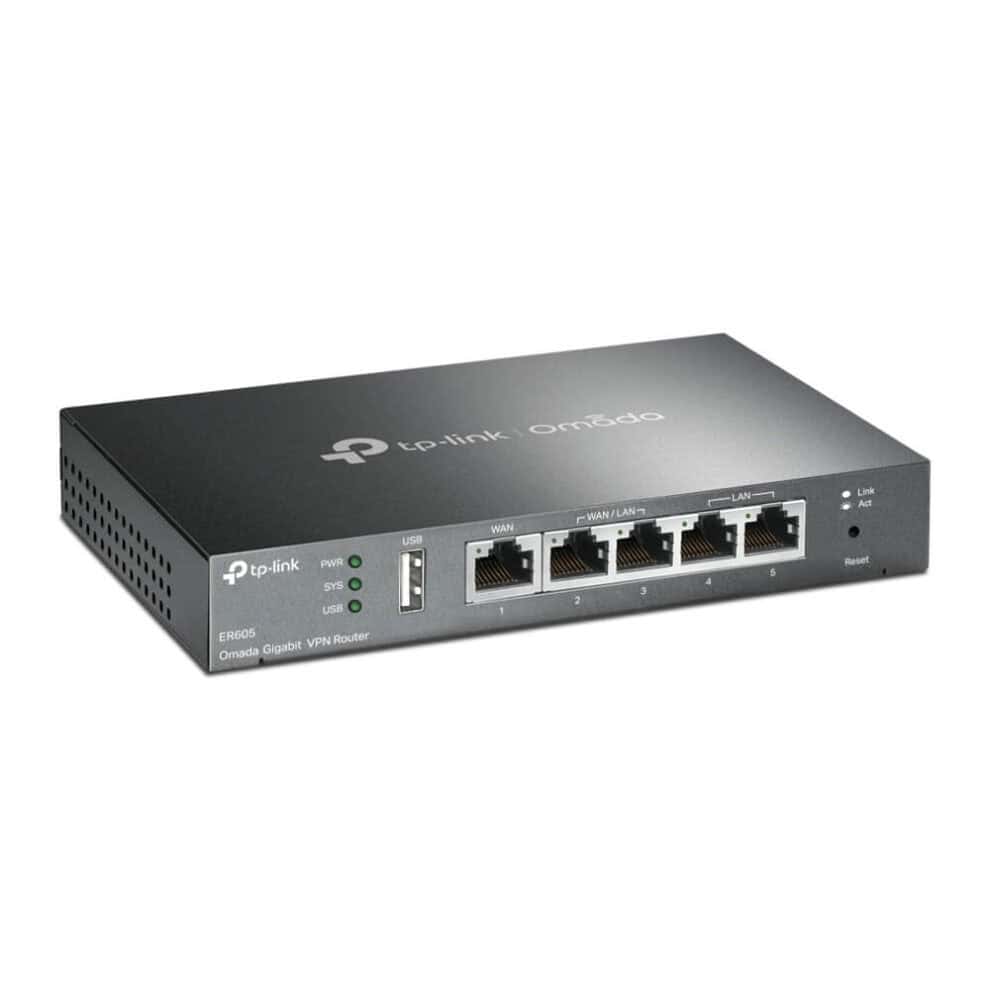

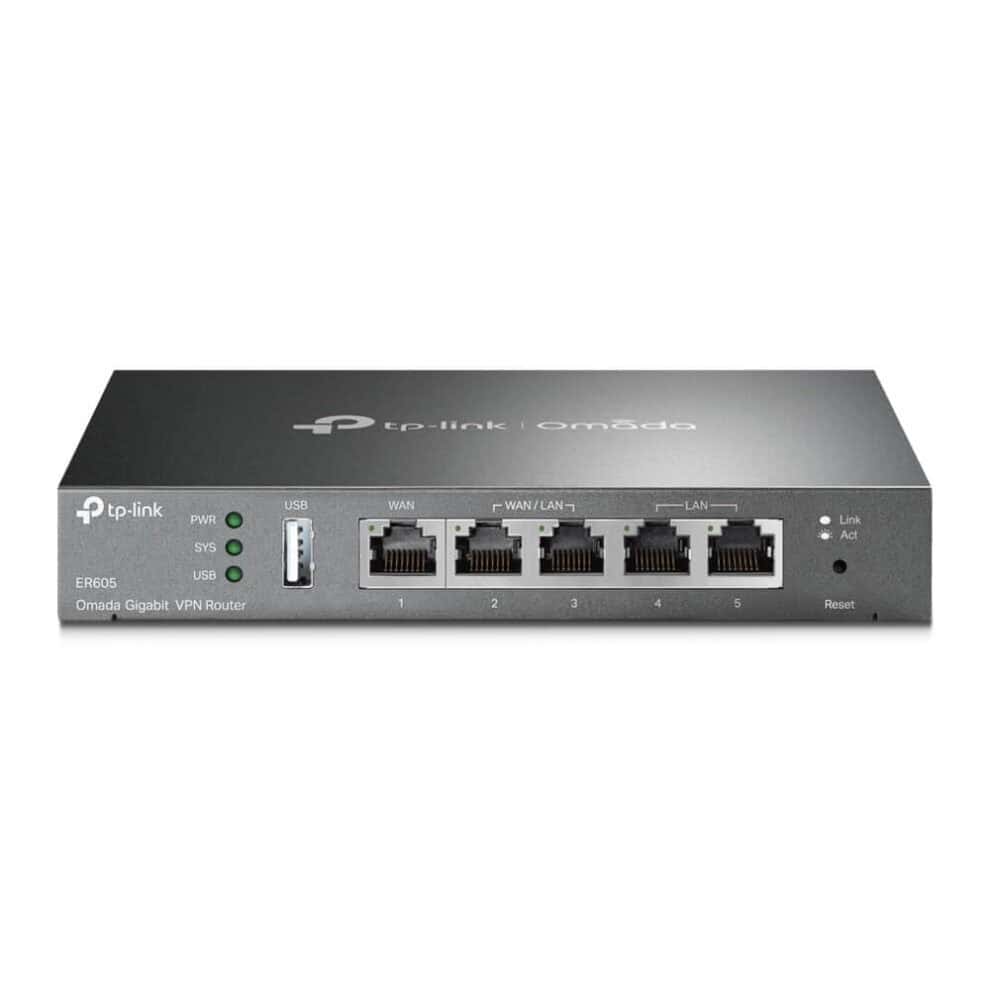

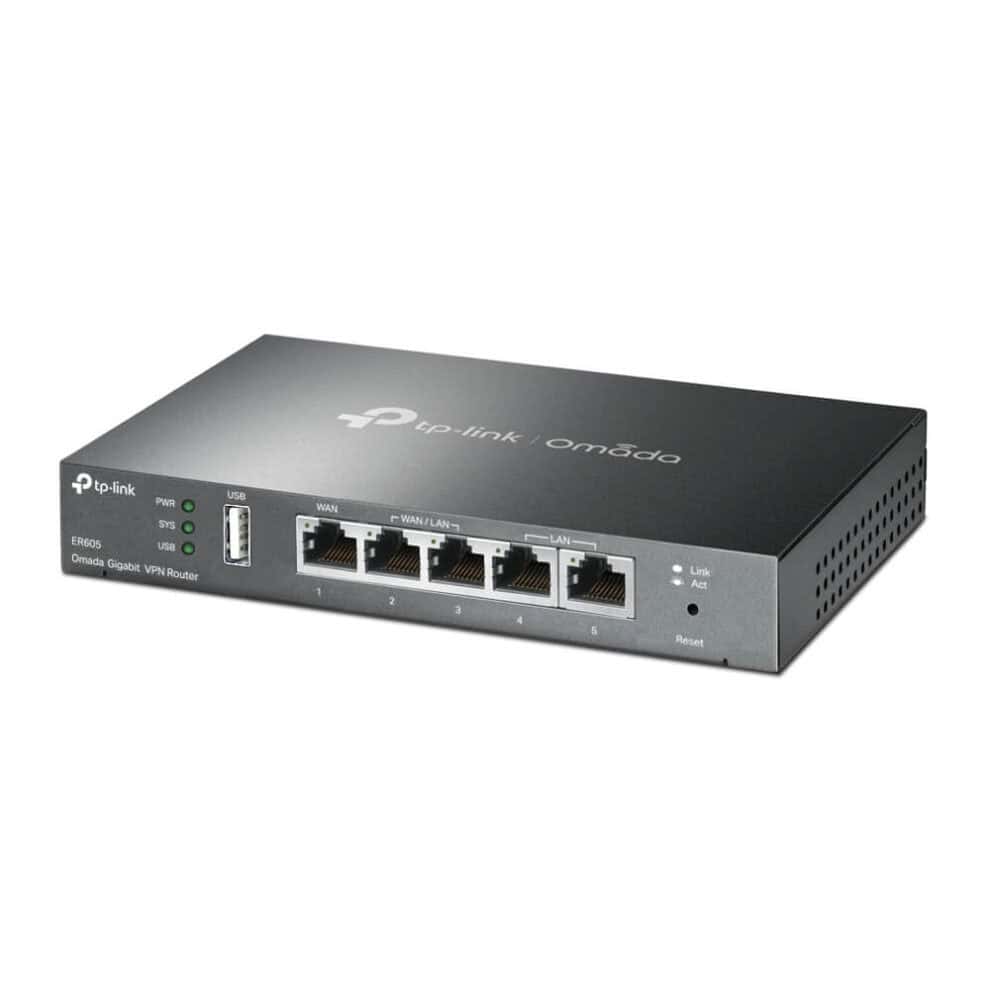

Interface:
– 1 Fixed Gigabit WAN Port
– 2 Fixed Gigabit LAN Ports
– 2 Changeable Gigabit WAN/LAN Ports
– 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
– 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
– 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Fan Quantity: Fanless
Button: Reset Button

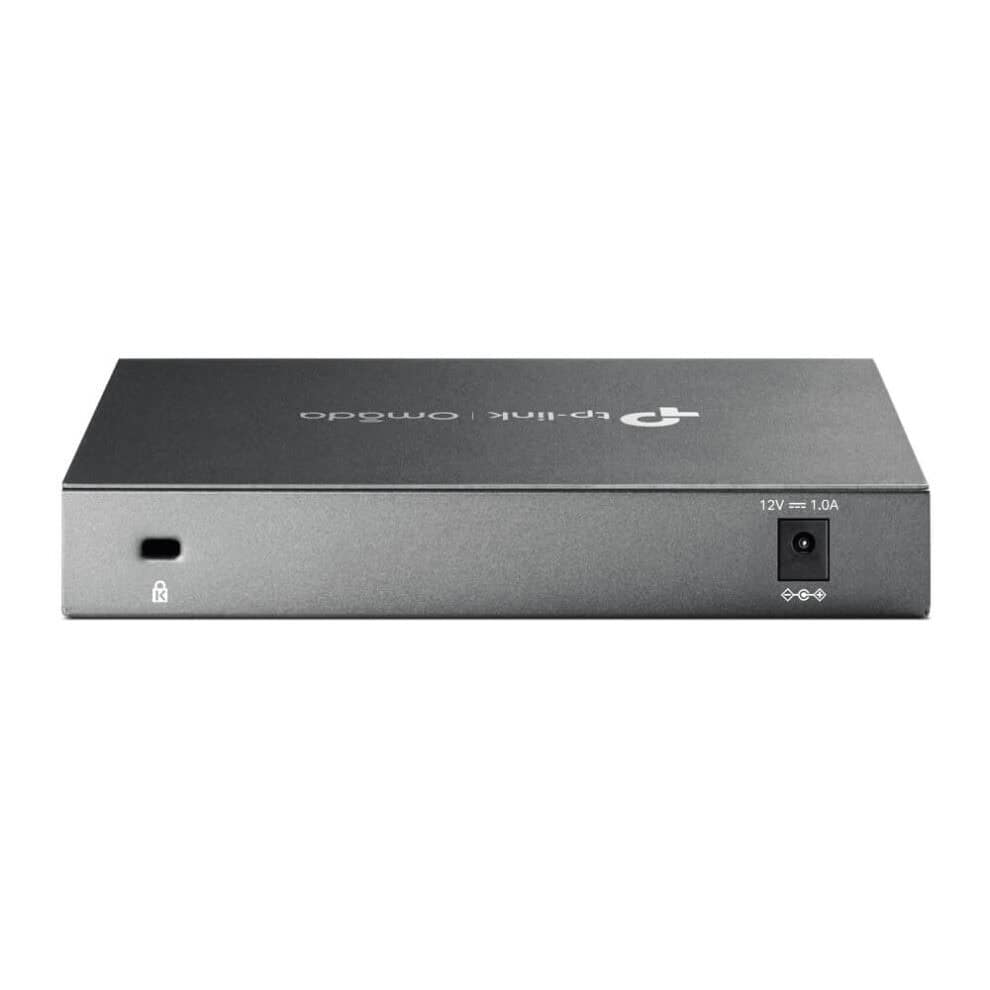

Power Supply: External 12V/1A DC Adapter
PoE Budget: –
Flash: 128 MB NAND
DRAM: 256 MB DDR
LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Protection: 4 kV surge protection
Enclosure: Steel
Mounting: Desktop/Wall-mount
Max Power Consumption: 7.94 W
