HARDWARE FEATURES

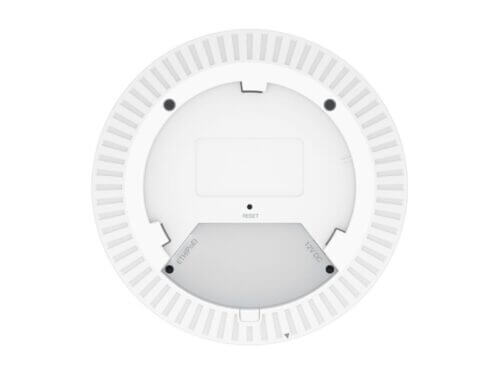

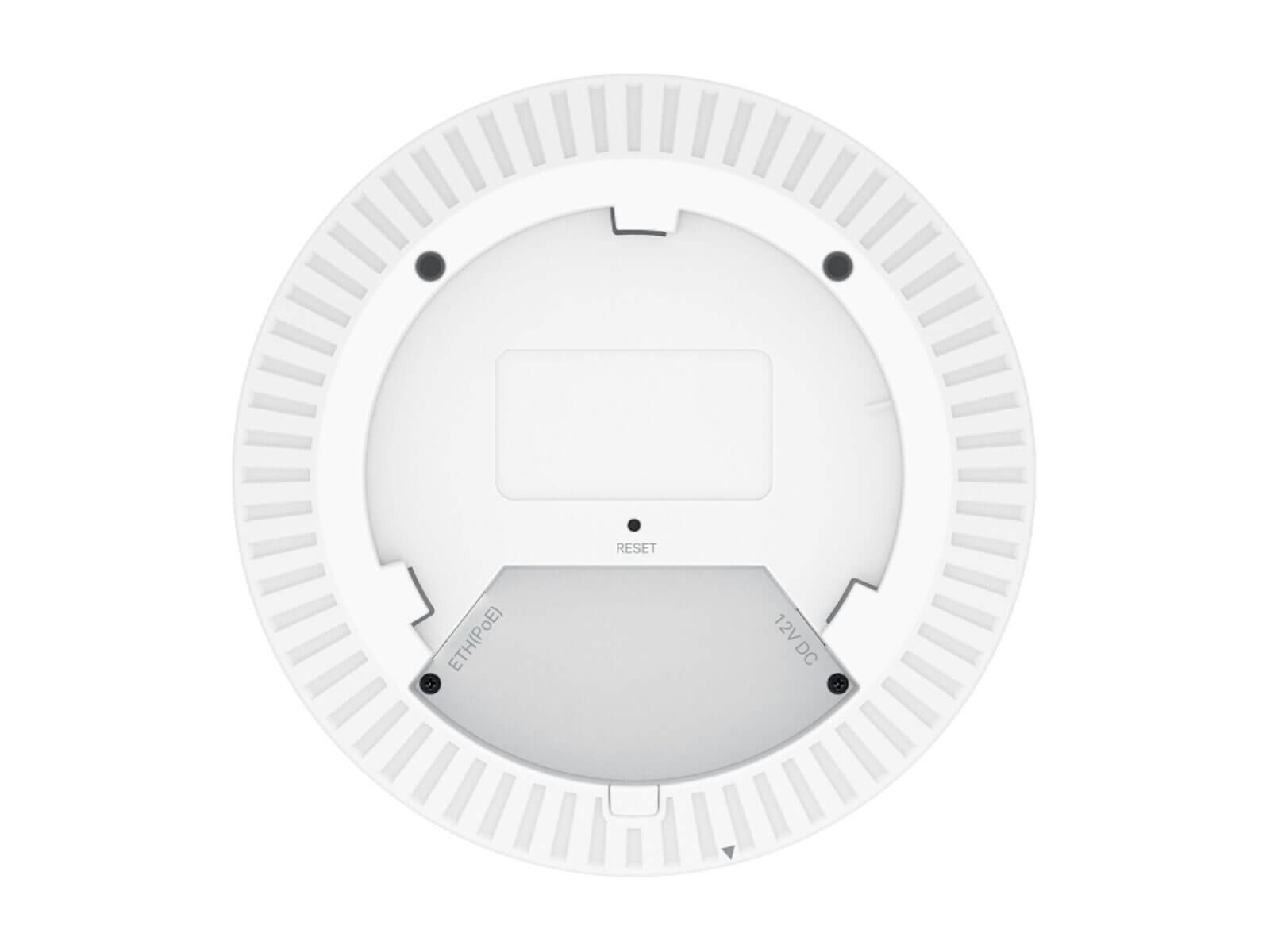

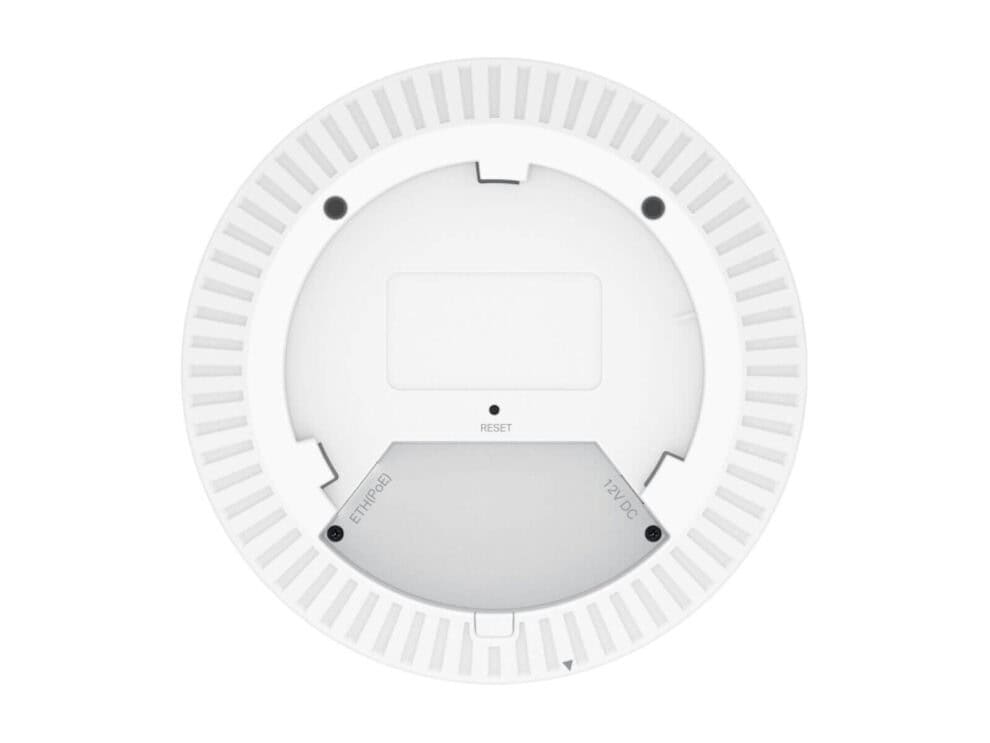

Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Max. Power Consumption • 17.8 W (For PoE);
- 14.0 W (For DC)
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna • 2.4 GHz: 2× 4.0 dBi - 5 GHz: 2× 5.0 dBi

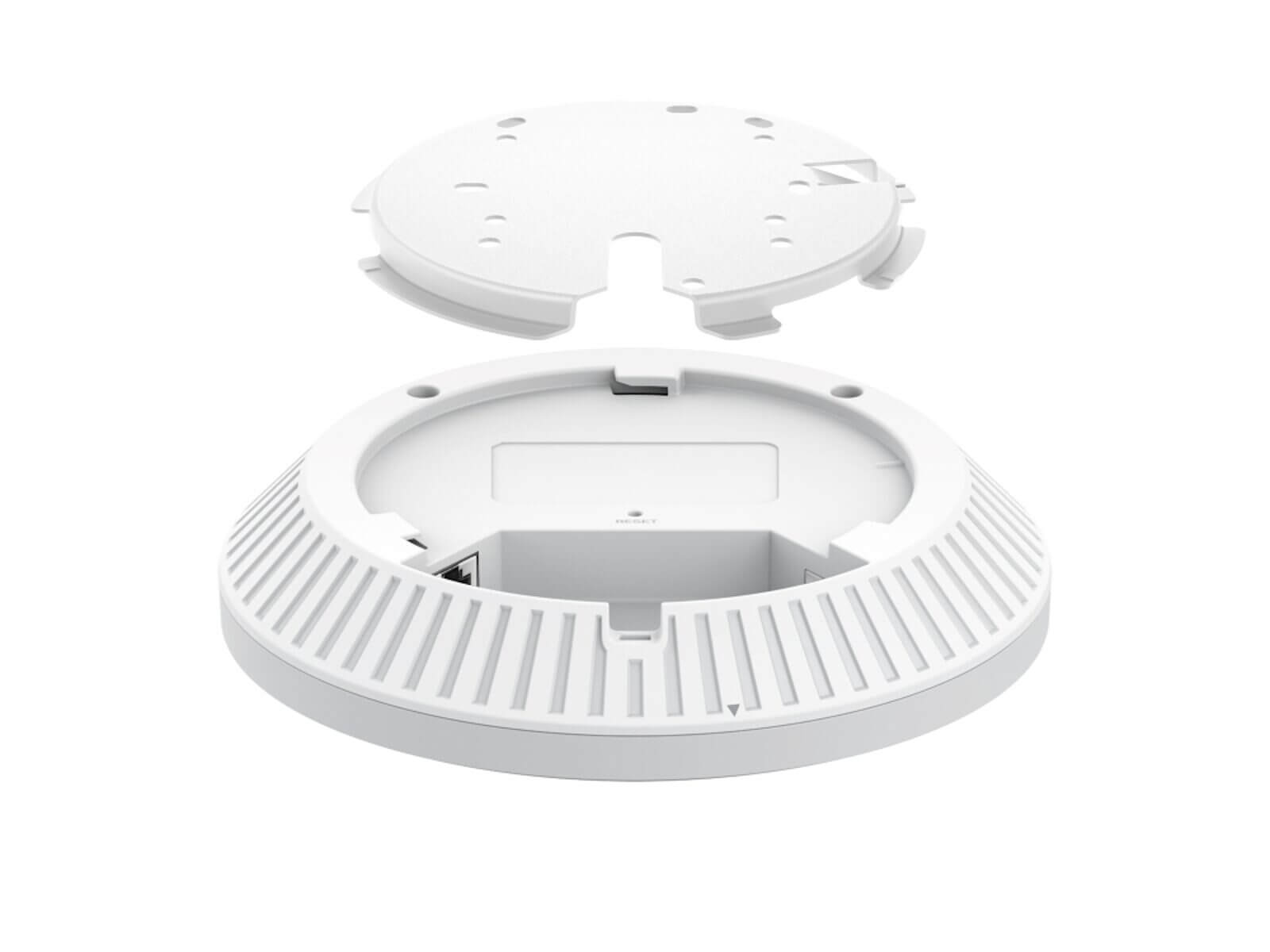

Mounting Ceiling / Wall Mounting / Junction Box (Kits Included)
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)* Concurrent Clients 250+
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz and 5 GHz
Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions • MLO - 4K-QAM‡
- Seamless Roaming
- MU-MIMO
- EHT240
- Mesh
- OFDMA
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS:16(8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS(WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
Wireless Security • Captive Portal Authentication△ - Access Control
- Maximum number of MAC Filter: 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 25 dBm (2.4GHz)
< 25 dBm (5GHz, band 1&band 4)
< 24 dBm (5GHz, band 2&band 3)
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC

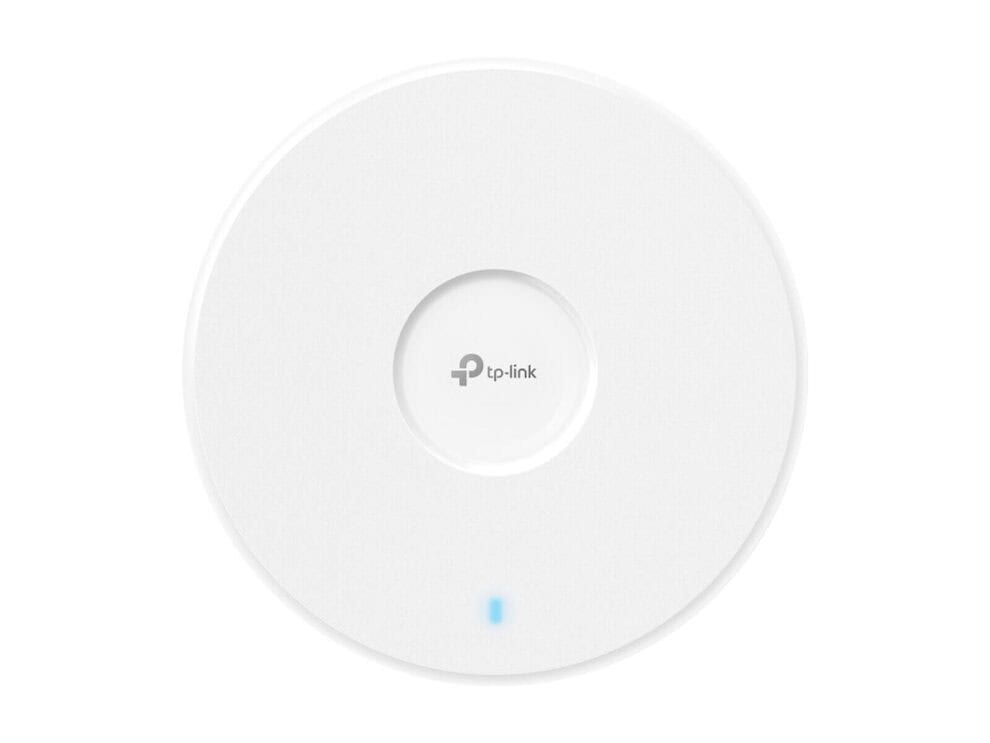

Package Content • EAP723 - Installation Guide
- Ceiling/Wall Mounting Kit
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity: 10%–90% non-condensing;
- Storage Humidity: 5%–90% non-condensing;
