- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
HARDWARE FEATURES

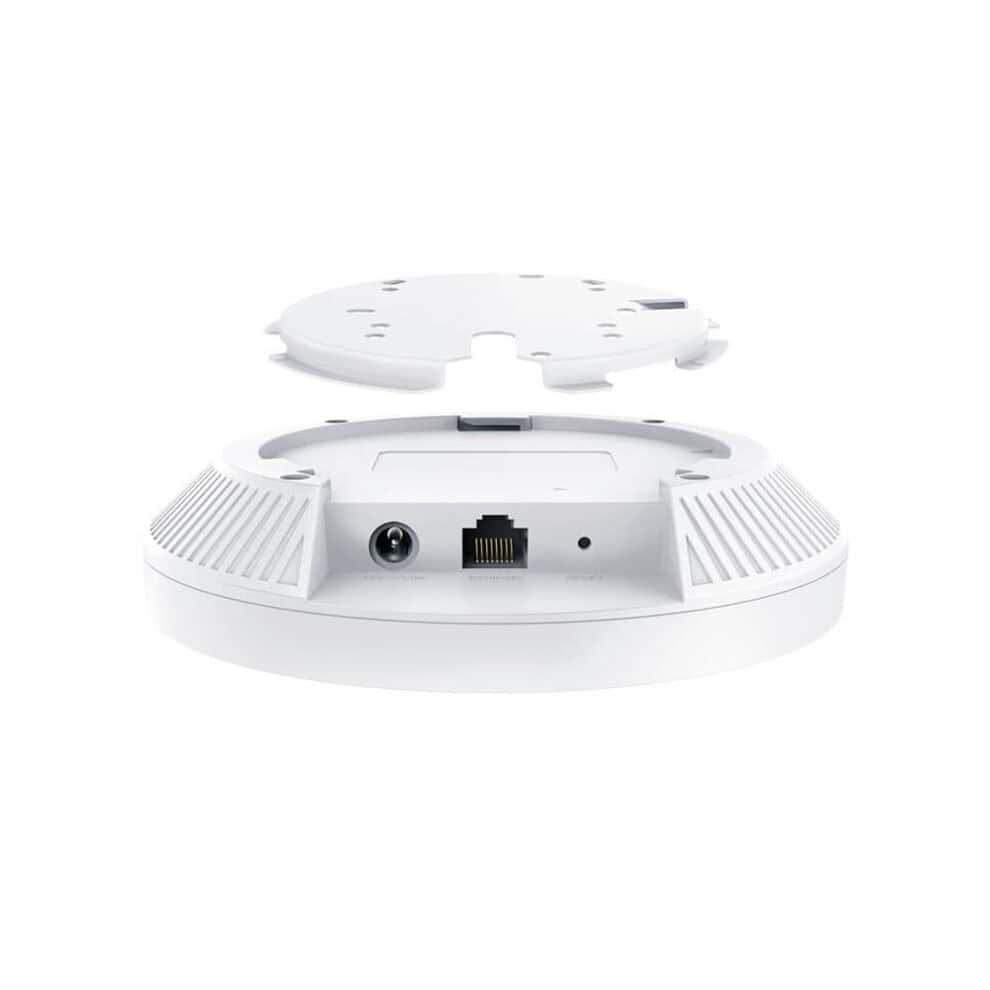

Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button: Reset
Power Supply:
– 802.3at PoE
– 12V DC (Power Adapter included) (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
– 48V Passive PoE
Power Consumption:
– EU: 13.5 W
– US: 14.7 W
Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type:
Internal Omni
– 2.4 GHz: 2× 4 dBi
– 5 GHz: 2× 5 dBi
Mounting:
– Ceiling /Wall Mounting (Kits included)
– Junction Box Mounting
