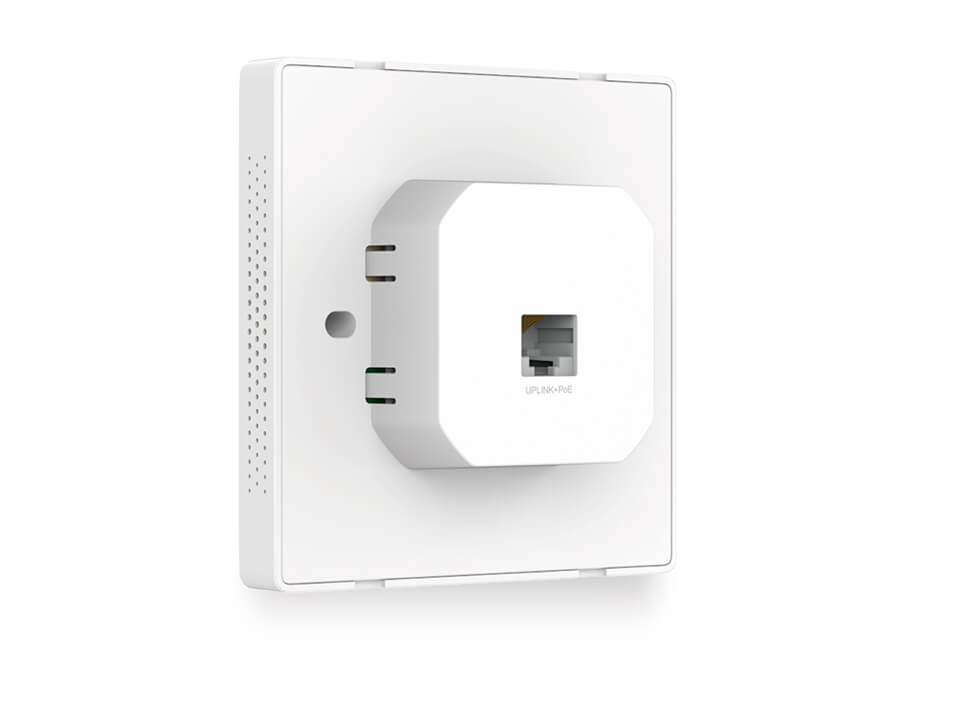

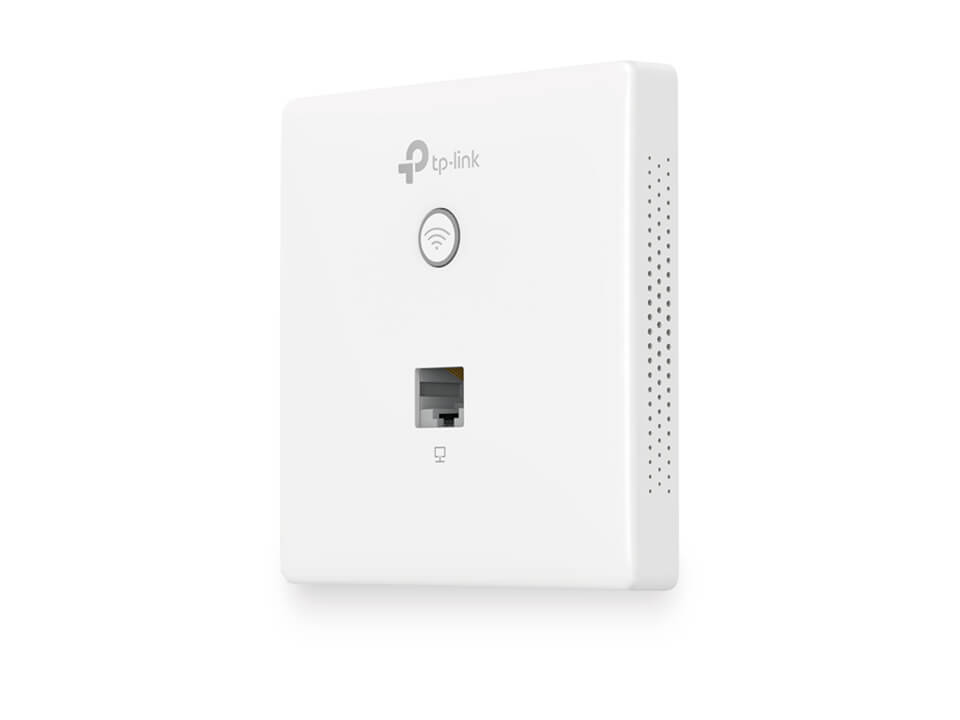

The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Easy-mount construction allows installation into any standard EU-type data wall-box
Compact, low-profile design fits discreetly with any existing interior style
Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
Support Power over Ethernet (802.3af) for convenient and affordable installation
Enterprise class Wi-Fi security helps to decrease network security threats
Captive portal provides one convenient method of authentication for Wi-Fi guests
HARDWARE FEATURES
Interface: 10/100Mbps Ethernet (RJ-45) Port *2
Physical Security Lock: –
Button: LED/Wi-Fi Button、RESET
Power Supply: PoE(IEEE 802.3af)
Power Consumption: 2.8 W
Dimensions ( W x D x H ): 86.8*86.8*30.2 mm
Antenna Type: Internal 2*1.8dBi Omni
Mounting: Wall Plate Mounting
Watch Dog: Yes
Hardware Watch Dog: Yes
WIRELESS FEATURES
Wireless Standards: IEEE 802.11n/g/b/a
Frequency: 2.4GHz
Signal Rate: 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power: CE：
<15dBm(2.4GHz)
Wireless Functions: Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App: Yes
Centralized Management: • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
EAP Controller Software: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
Telnet: Yes
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
