- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

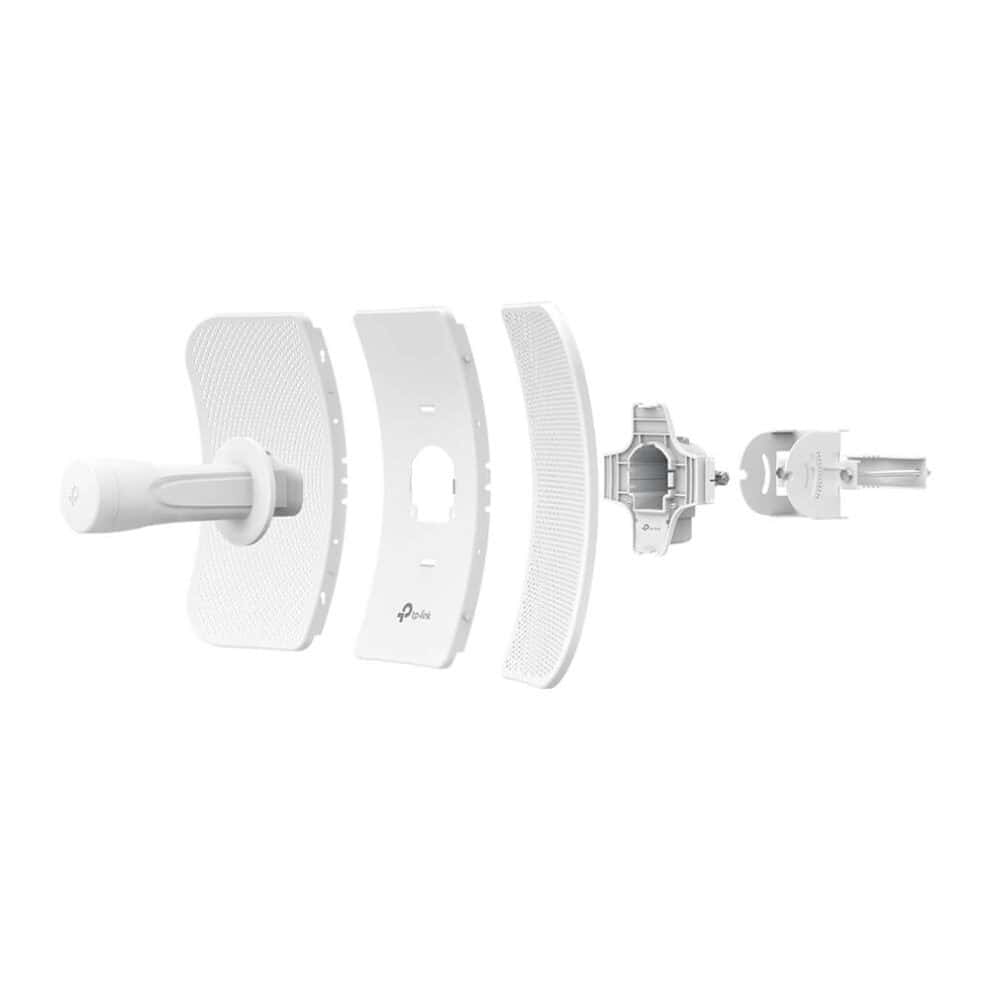

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
HARDWARE FEATURES
Processor: Qualcomm 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM,8MB Flash
Interface:
– 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
– 1 Reset Button
Power Supply:
– Passive Power over Ethernet via LAN (4,5pins; -7,8pins)
– Voltage range: 16-27VDC
Power Consumption: 7.41 W
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain: 23dBi
Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
Protection:
– 15KV ESD Protection
– 6KV Lightning Protection
Enclosure:
– Material: Outdoor PC stabilized plastic
– Weatherproof: IP65 water and dust proof design
