- Up to 150Mbps on 5GHz wireless data rates
- 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

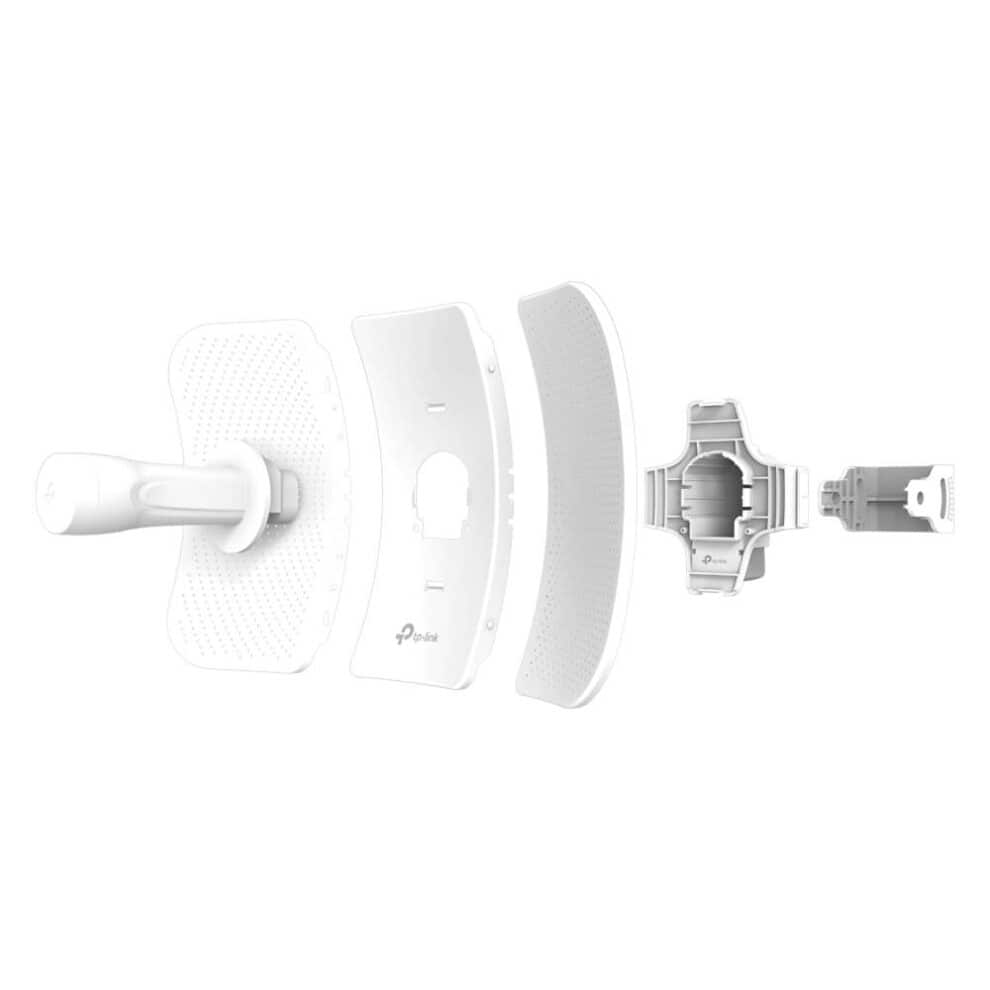

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
HARDWARE FEATURES
Processor: Qualcomm 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM,8MB Flash
Interface:
– 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
– 1 Reset Button
Power Supply:
– Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
– Voltage range: 16-27VDC
Dimensions ( W x D x H ): 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
Antenna Gain: 23dBi
Antenna Beamwidth: 7°(Azimuth), 10°(Elevation)
Protection:
– 15KV ESD Protection
– 6KV Lightning Protection
Enclosure: Material:
– Outdoor PC stabilized plastic
– Weatherproof: IP65 water and dust proof design
