Features
2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1775 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 100, 1000 Mbit/s
Frequency band and operating channels: 2.4 – 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection: Yes
Automatic channel scanning: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Wi-Fi Multimedia (WMM)/(WME): Yes
VLAN support: Yes
Rate limiting: Yes
Wireless isolation: Yes
Band steering: Yes
Airtime Fairness (ATF): Yes
BeamForming: Yes
Transmitting power (CE): <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Transmitting power (FCC): <25 dBm (2.4 GHz); <25 dBm (5 GHz)
Security
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Number of SSID supported: 16
Management features
Web-based management: Yes
Management features: Omada
Ports & interfaces

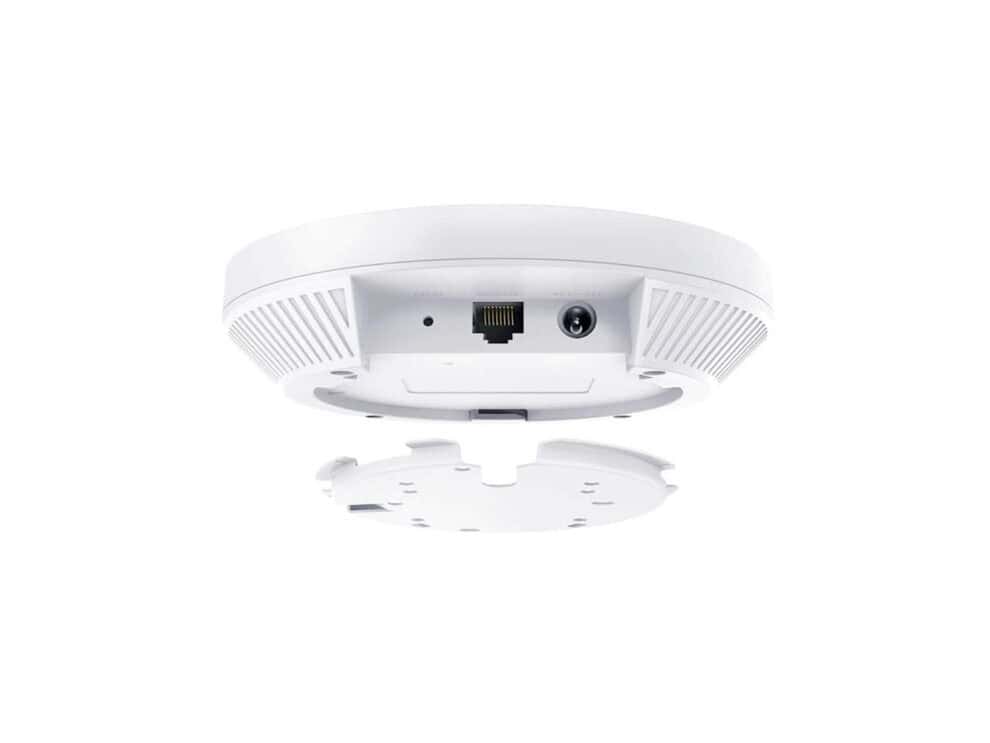

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Power
Power supply PoE: Yes
Power over Ethernet (PoE) type supported: Passive PoE
DC voltage rang: 12 V
Input operating current: 1 A
Power consumption (typical): 9.6 W
Power consumption (max): 10.6 W
