- Speedy Wi-Fi – Superb wireless experience with 300Mbps (2.4GHz) + 867Mbps (5GHz) dual band Wi-Fi connections
- Superior Range – Three fixed antennas provide stable wireless connections and optimal coverage
- Versatile Connectivity – Fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable and 3G/4G Internet services
- Beamforming Technology – Improves wireless range and performance at 5GHz band
- USB Port – Supports storage and print service sharing, FTP and media servers as well as 3G/4G dongle
- Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices
HARDWARE FEATURES

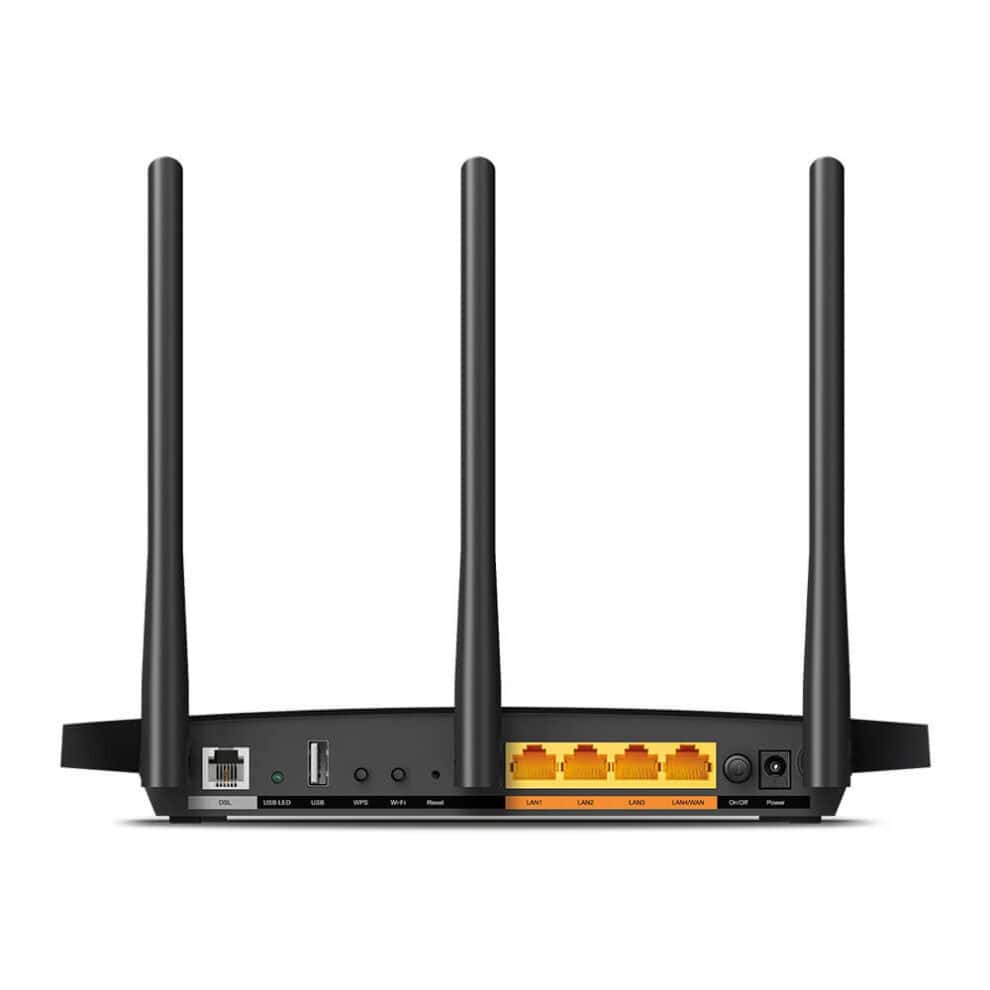

Interface:
– 3 10/100 RJ45 LAN Ports
– 1 10/100/1000 RJ45 LAN/WAN Port
– 1 RJ11 Port
– 1 USB 2.0 Port
Button:
– WPS Button
– Wireless On/Off Button
– Power On/Off Button
– Reset Button
Power Supply: 12V/1.5A
External Power Supply: 12V/1A
IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 Standards:
– ITU G.993.2, Up to 17a prole (POTS)
– ITU-T G.993.5 (G.vector)
– ITU-T G.998.4 (G.INP)
ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards: ITU-T G.992.5
Dimensions ( W x D x H ): 243.5×167.5×32.7mm
Antenna Type: 3 fixed external antennas
WIRELESS FEATURES
Wireless Standards:
– IEEE 802.11a/n/ac 5GHz,
– IEEE 802.11b/g/n 2.4GHz
Wireless Speeds: 867Mbps at 5GHz, 300Mbps at 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 867Mbps at 5 GHz, 300Mbps at 2.4 GHz
Transmit Power: 2.4GHz <20dBm(EIRP), 5GHz <23dBm(EIRP)
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering
Transmission Power: <20dBm (2.4 GHz), <23dBm (5 GHz)
Wireless Schedule: Support 2.4GHz and 5GHz Wireless Schedule
SOFTWARE FEATURES
Quality of Service: ATM QoS, Bandwidth Control
Advanced Features: Parental Controls, Network Address Translation(NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DDNS, IGMP V1/V2/V3
Security: NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes: VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router
Management: Web Based Conguration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools
DHCP: Server, Client, DHCP Client List, Address Reservation,
DHCP Relay
Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS: DynDns, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec Passthrough
Protocols: Supports IPv4 and IPv6
ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Advanced Functions: Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP
v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
USB Sharing: Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem
Guest Network: 2.4GHz Guest Network, 5GHz Guest Network
IPSec VPN: Supports up to 10 IPSec VPN tunnels
Beamforming: 5GHz
