- Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming
- Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router

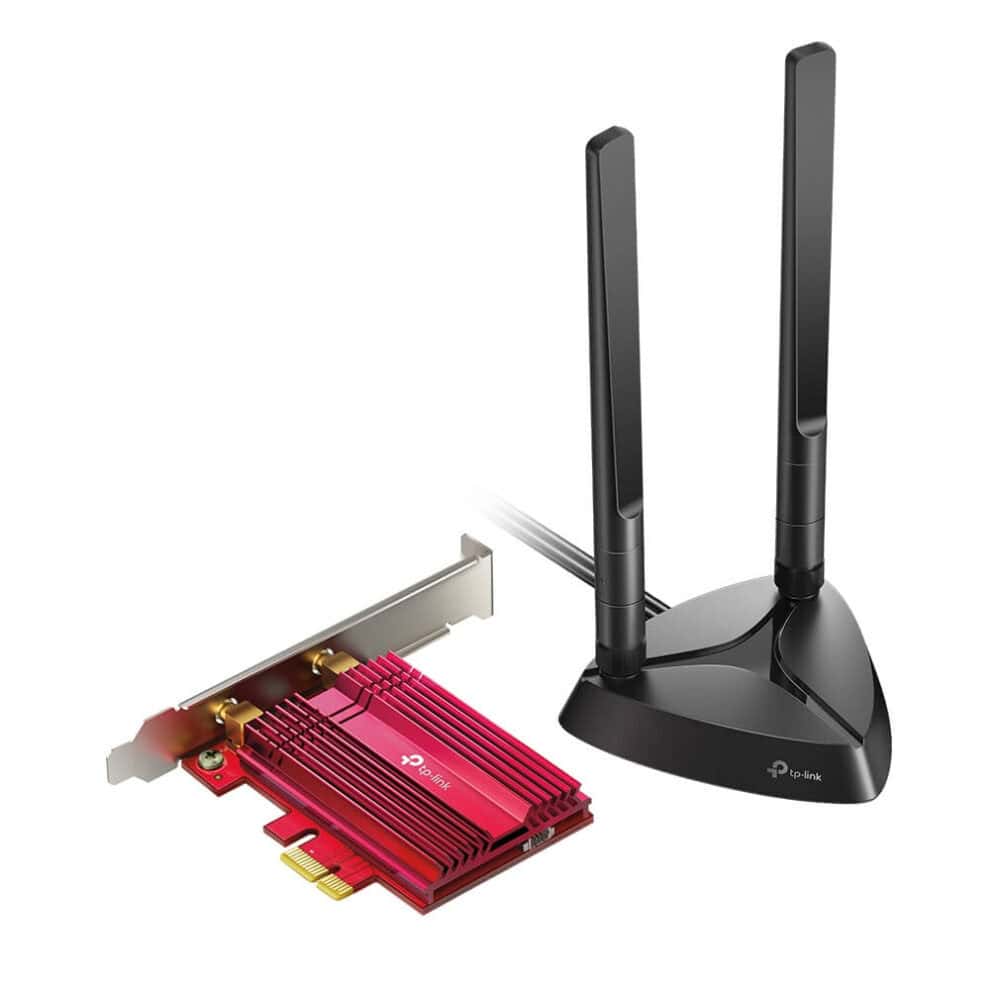

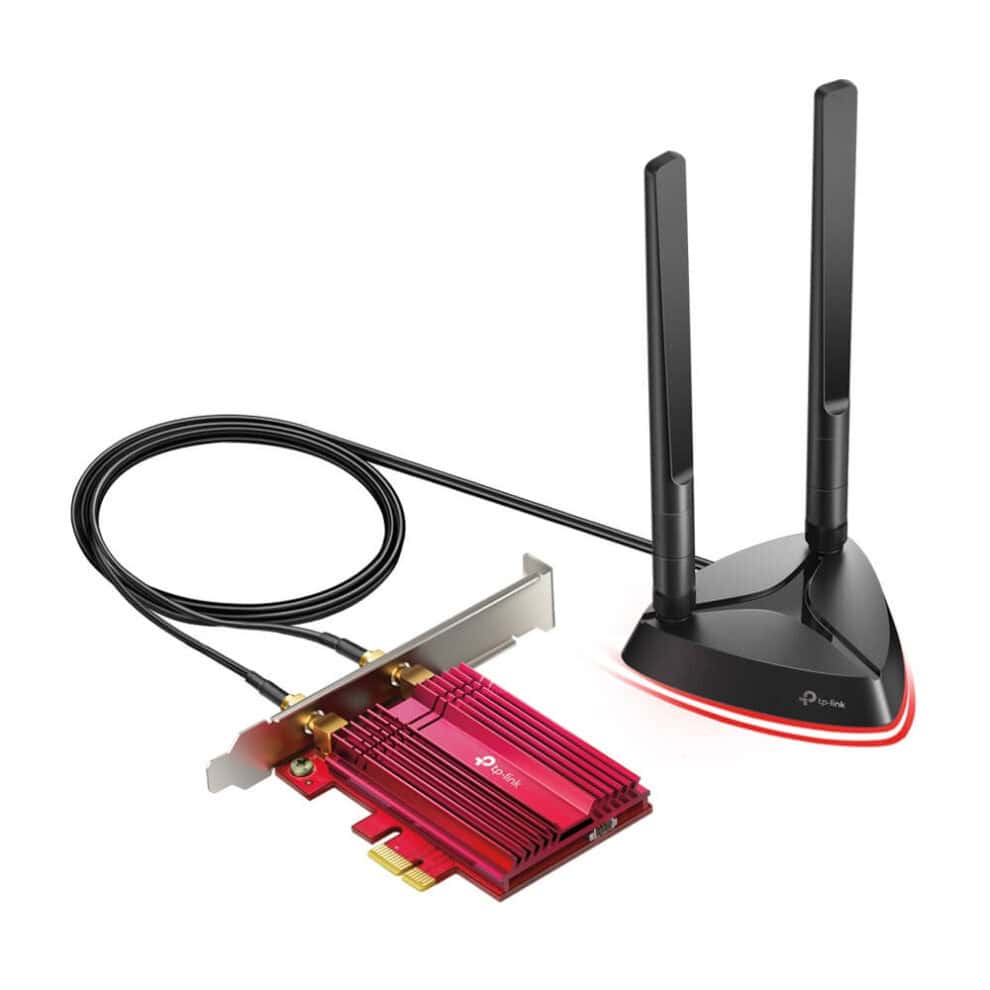

- Wider Signal Coverage—Two multi-directional antennas with magnetized base are designed for optimum signal reception
- Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
HARDWARE FEATURES
Dimensions: 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm)
Antenna Type:
– Two High-Gain Dual Band Antennas
– Magnetized Antenna Base
Chipset: Intel Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards:
– IEEE 802.11ax/ac/n/a 5 GHz
– IEEE 802.11ax/n/g/b 2.4 GHz
– Bluetooth 5.0/4.2/4.0
WLAN Signal Rate
– 5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
– 2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity
– 5 GHz :
11ax HT160：-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160：-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
– 2.4GHz:
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN Transmit Power:
– 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
– 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes: Infrastructure mode
Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles:
– Archer TX3000E support the native BT profiles implemented in Windows 10.
– For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles
