Hardware Features

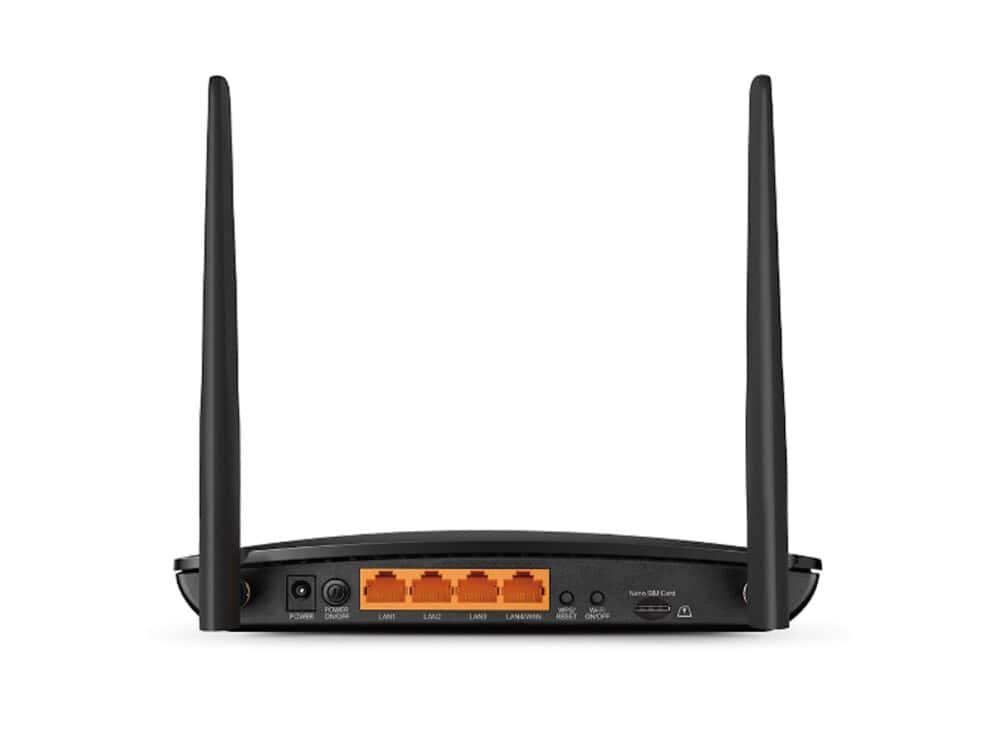

Interface
1 × 10/100/1000 Mbps LAN/WAN Port
3 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
Power Supply: 12V/1.5A
Dimensions ( W x D x H ): 202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in)
Antenna: 2 Detachable External LTE Antennas
Wireless Features
Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity
5 GHz: 11a 54M: -77 dBm
11ac HT20: -73 dBm
11ac HT40: -68 dBm
11ac HT80 : -64 dBm
11n HT20: -77 dBm
11n HT40: -73 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm
Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover: Yes
Wireless Security: 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Network Type: Compatible with the majority of mobile operators and supports 4G/3G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41
(2600/2300/2500 MHz)
DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8
(2100/850/900 MHz)
Software Features
Quality of Service: Prioritizes network traffic by device
Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management: TP-Link Cloud, Local Management, Remote Management
DHCP: Server, DHCP Client List, Address Reservation
Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: TP-Link, DynDns, NO-IP
VPN: VPN Server: PPTP VPN, OpenVPN
Parental Controls: URL Filtering, Time Controls
Protocols: IPv4, IPv6
Guest Network: 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1
