HARDWARE FEATURES
Interface

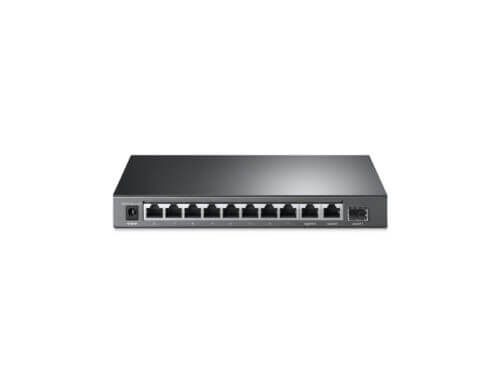

- 9× 10/100/1000 Mbps RJ45 Ports
- 1× 1000 Mbps Combo SFP/RJ45 Port
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate 14.88 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–8
- Power Supply: 123 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption
- 7.93 W (220V / 50Hz with no PD connected)
- 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation
- 27.04 BTU/h (220V / 50Hz with no PD connected)
- 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
