- 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES
Standards and Protocols:
– EEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
– IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface:
– 9× 10/100/1000 Mbps RJ45 Ports
– 1× 1000 Mbps Combo SFP/RJ45 Port
– AUTO Negotiation/AUTO MDI/MDIX
Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45):
– Standard: 802.3 af/at compliant
– PoE Ports: Port 1- Port 8
– PoE Power Budget: 123 W

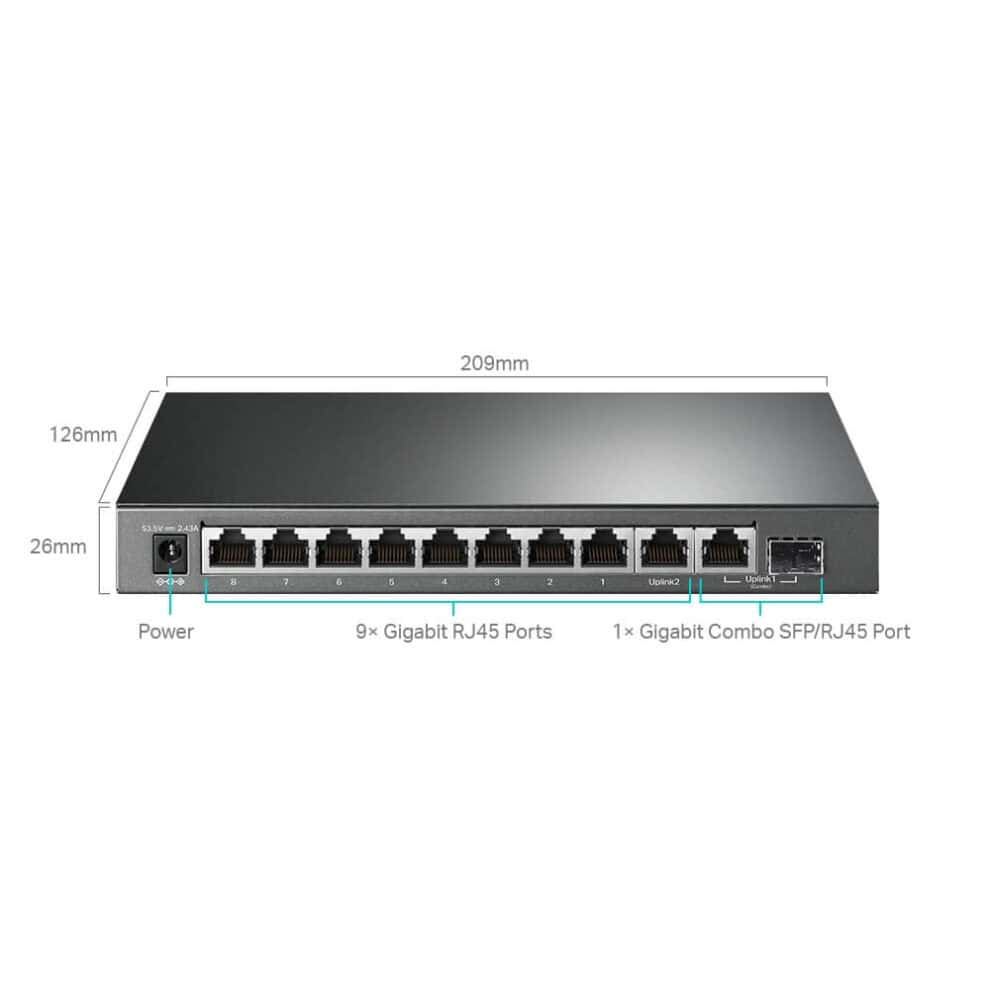

Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption:
– 7.66 W (220V / 50Hz with no PD connected)
– 141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation:
– 26.12 BTU/h (220V / 50Hz with no PD connected)
– 482.65 BTU/h (220V / 50Hz with 123 W PD connected)
