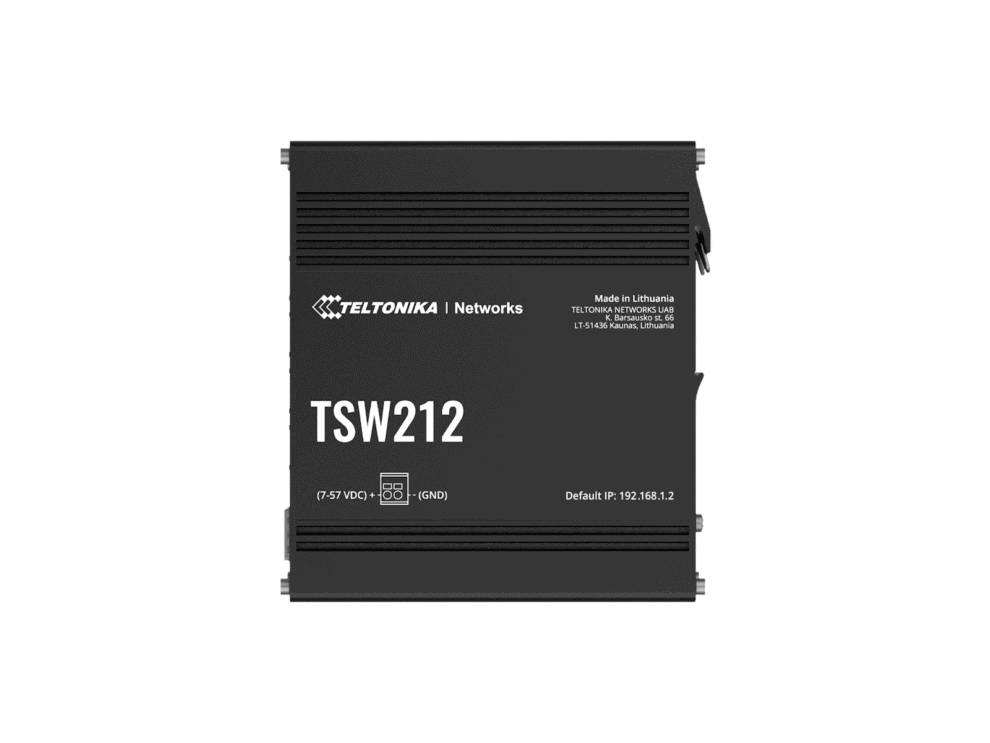

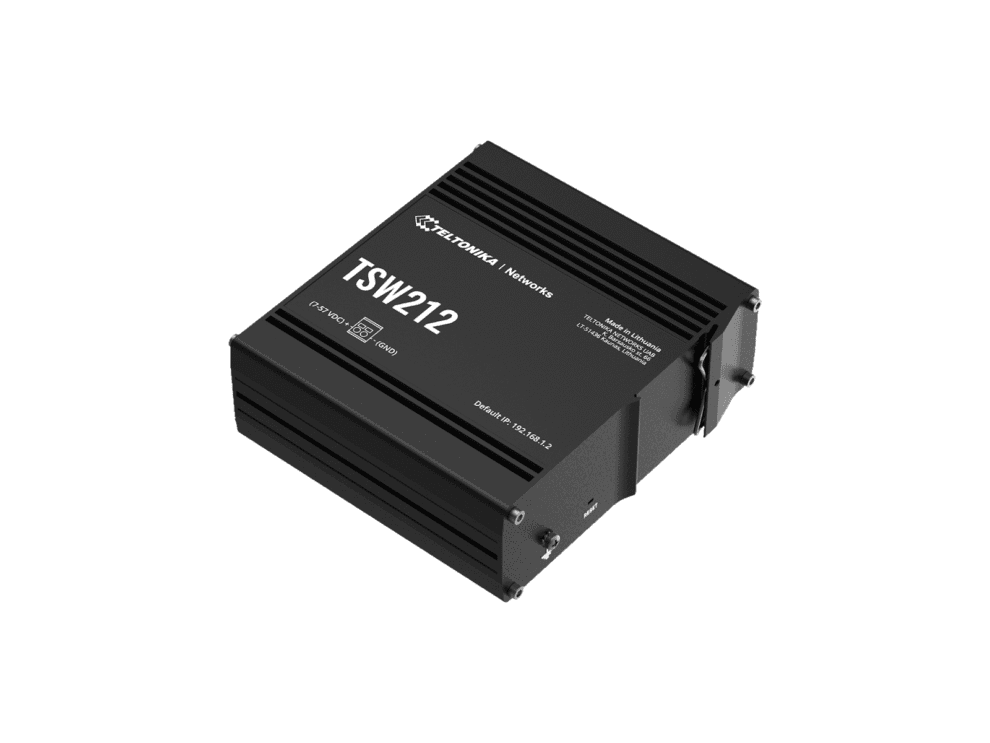

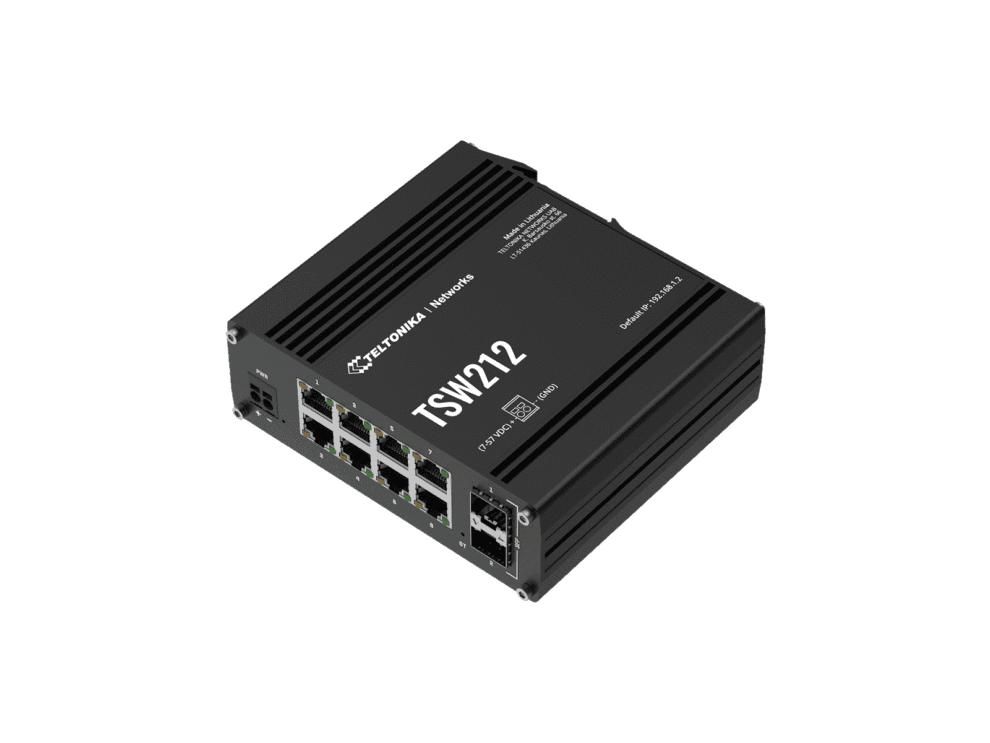

title: Teltonika TSW212 8-Port Managed Switch
date: 2026-01-26T09:58:15Z
modified: 2026-05-05T16:51:21Z
permalink: "https://tech.co.za/product/teltonika-tsw212-8-port-managed-switch/"
type: product
status: publish
excerpt: Teltonika TSW212 8x LAN (1 Gbps) 2xSFP, Managed Switch
wpid: 567404
product_brand:
  - Teltonika
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2026/01/TSW212a.png"
---

| Profinet : | Class B conformance (available with optional order code) |
| --- | --- |
| Ethernet: | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
| Fibre : | 2 x SFP ports |
| IEEE 802.3 series standards : | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Network : | MRP client role, MRP manager role |
| L2 features : | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP : | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings : | Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring |
| L3 Features : | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| Security : |  |
| Authentication |  |
| PAM : | preshared key, Radius & TACACS+, IP & login attempts block |
| MAC : | filtering support |
| API : | Teltonika Networks Web API (beta) support |
| RAM : | 128MB, DDR3 |
| FLASH storage : | 16 MB serial flash |
| WEB UI : | Update FW from file, check FW on server, configuration profiles, configuration backup |
| Update : | FW/configuration for multiple devices at once |
| Keep settings : | Update FW without losing current configuration |
| Operating system : | TSWOS (OpenWrt based Linux OS) |
| Supported languages : | Busybox shell, Lua, C, C++ |
| Development tools : | SDK package with build environment provided |
| Power Connector : | 2-pin industrial DC power socket |
| Input voltage range : | 7 – 57 VDC |
| Power consumption : | Idle: < 2.5 W / Max: 6 W |

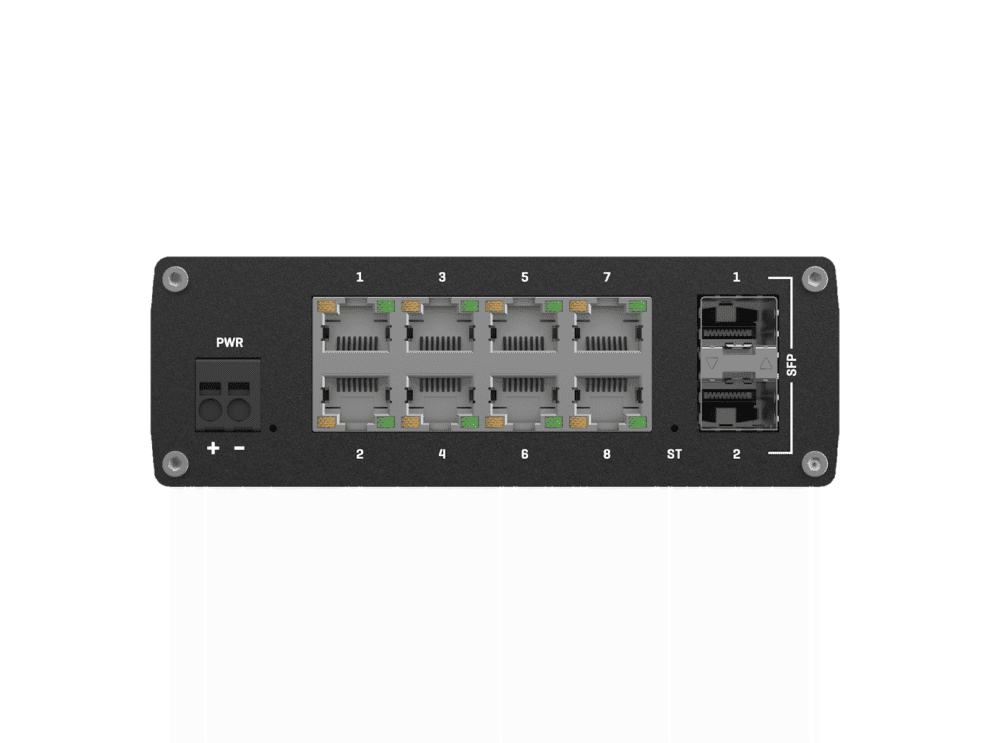

| Ethernet : | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre : | 2 x SFP ports |
| Status LEDs : | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power : | 1 x 2-pin industrial DC power socket |
| Reset : | Software reset button |
| Other : | 1 x Grounding screw |
| Casing material : | Anodized aluminum housing and panels |
| Dimensions (W x H x D) : | 132 x 44.2 x 122.2 mm |
| Weight : | 615 g |
| Mounting options : | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Operating temperature : | -40 °C to 75 °C |
| Operating humidity : | 5% to 95% non-condensing |
| Ingress Protection Rating : | IP30 |
