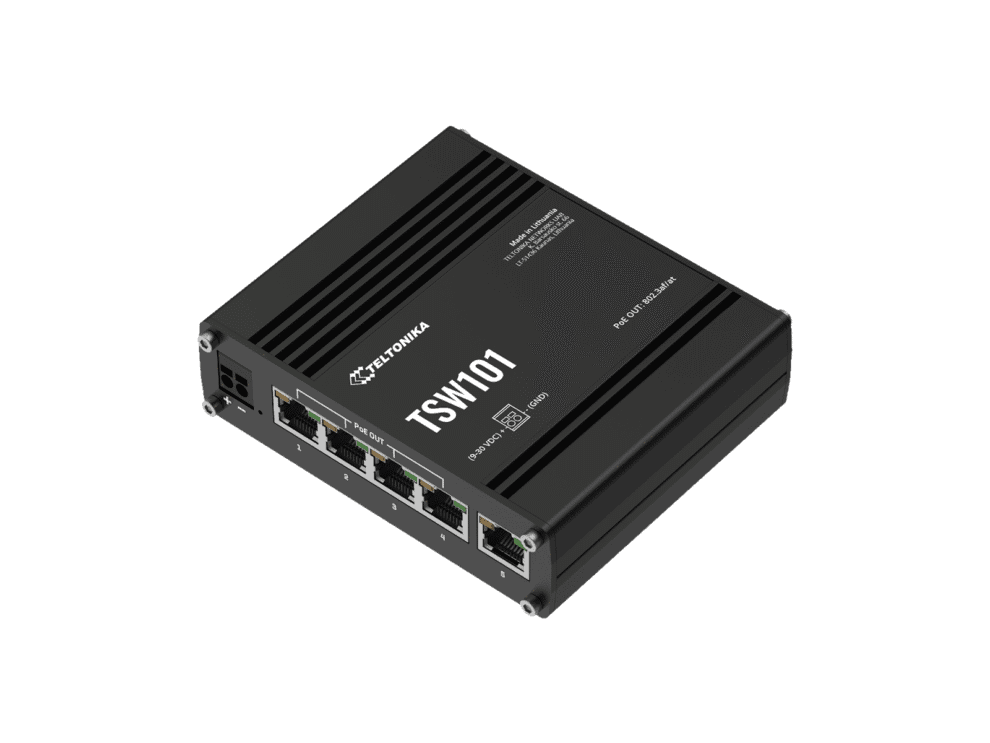

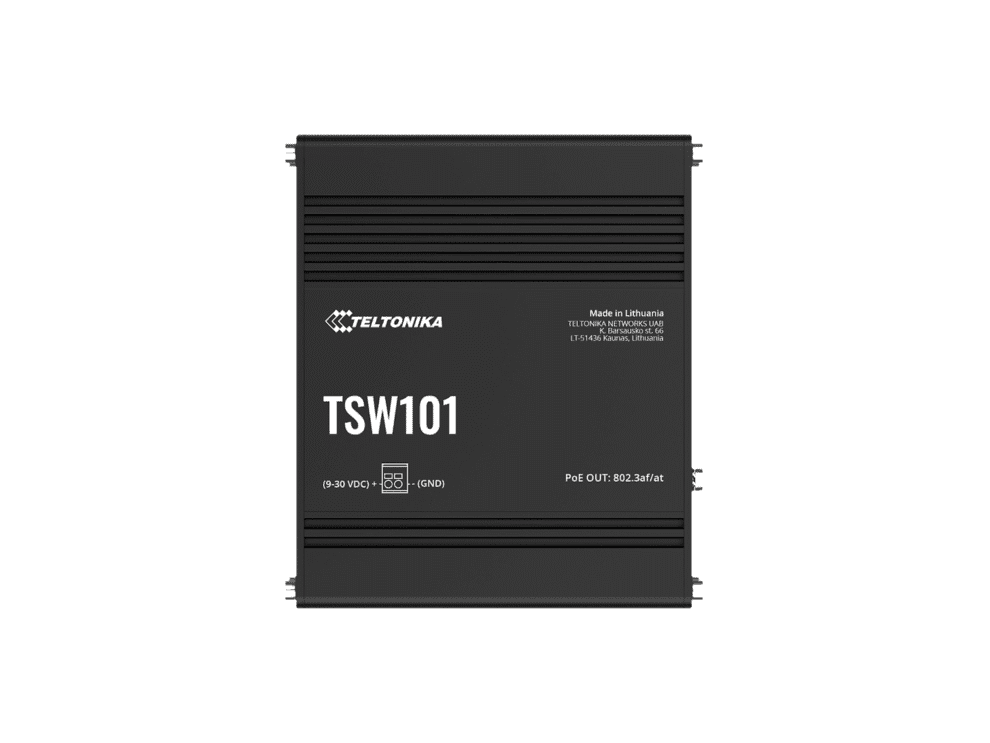

The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
| Ethernet | 5 x RJ-45 ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE+ ports | Port 1 – 4 |
| PoE standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 60 W |
| Maximum Ethernet cable length | 100 m |
| Power | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE-Out input voltage range | 9 – 30 VDC |
| Power consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W |
| PSU | 12 V or 24 V car battery-powered. No additional PSU is required. |

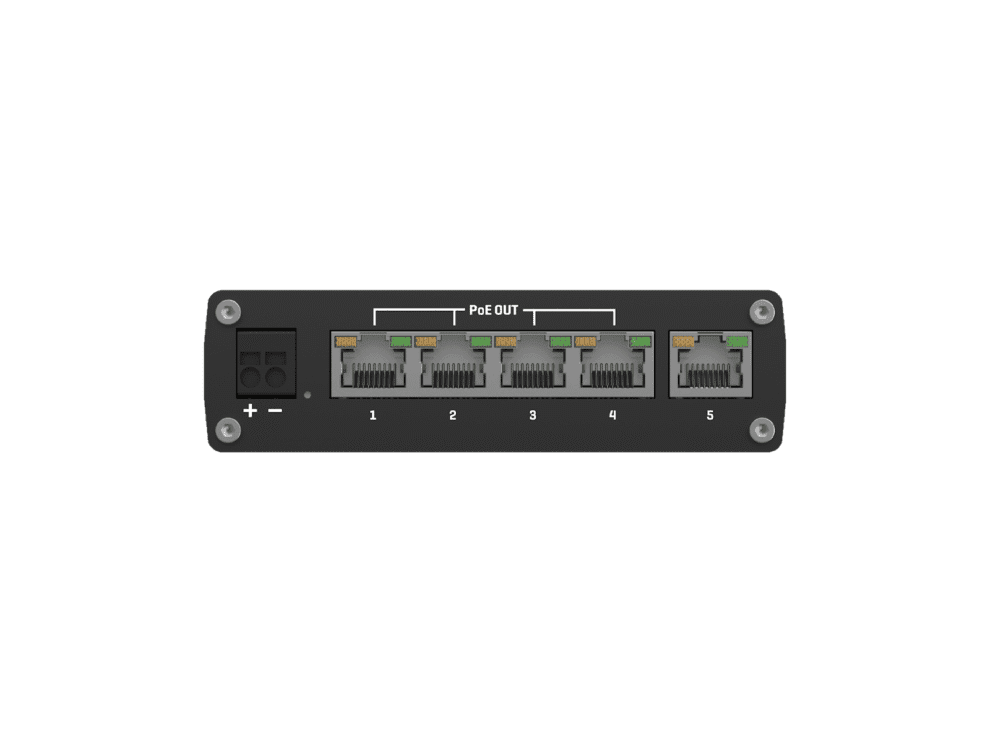

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
