| Hardware Specifications | RS2423+ |  |
| --- | --- | --- |
| CPU | CPU Model | AMD Ryzen V1780B |
| CPU Quantity | 1 |  |
| CPU Core | 4 |  |
| CPU Architecture | 64-bit |  |
| CPU Frequency | 3.35 (base) / 3.6 (turbo) GHz |  |
| Hardware Encryption Engine | Yes |  |
| Memory | System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) |  |
| Total Memory Slots | 2 |  |
| Maximum Memory Capacity | 32 GB (16 GB x 2) |  |
| Storage | Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 24 (RX1223RP x 1) |  |
| Drive Type [(See all supported drives)](https://www.synology.com/en-global/compatibility?search_by=drives) | 3.5″ SATA HDD 2.5″ SATA SSD |  |
| Hot Swappable Drive\* | Yes |  |
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the [compatibility list](https://www.synology.com/en-global/compatibility). The use of non-validated components may limit certain functionality and result in data loss and system instability. |  |

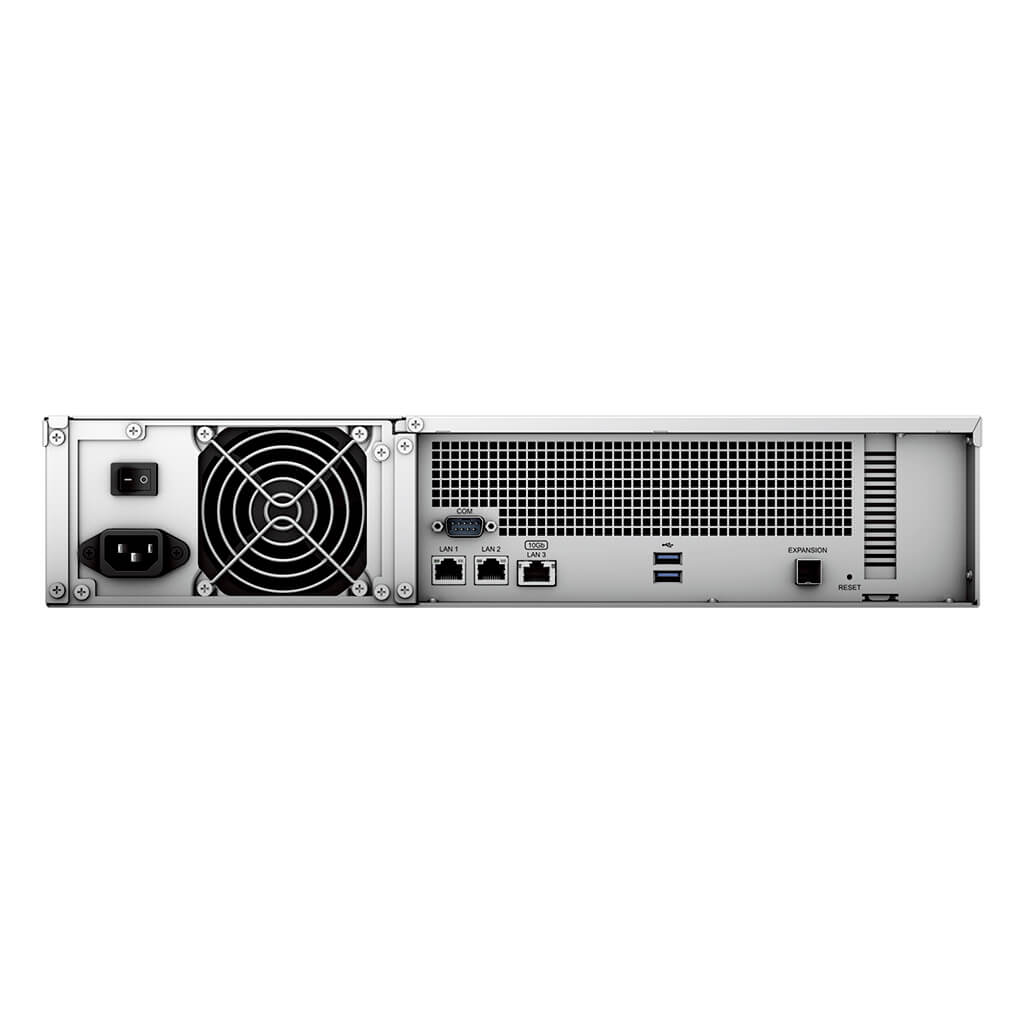

| External Ports | RJ-45 1GbE LAN Port | 2 |
| RJ-45 10GbE LAN Port | 1 |  |
| USB 3.2 Gen 1 Port | 2 |  |
| Expansion Port | 1 |  |
| Expansion Port Type | Mini-SAS HD |  |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. |  |
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 552 mm |  |
| Weight | 11.5 kg |  |
| Rack Installation Support\* | 4-post 19″ rack (Synology Rail Kit – [RKS-02](https://www.synology.com/en-global/products/RKS-02)) |  |
| Notes | The rail kit is sold separately |  |
| More info: | [https://www.synology.com/en-global/products/RS2423+#specs](https://www.synology.com/en-global/products/RS2423+#specs) |  |
